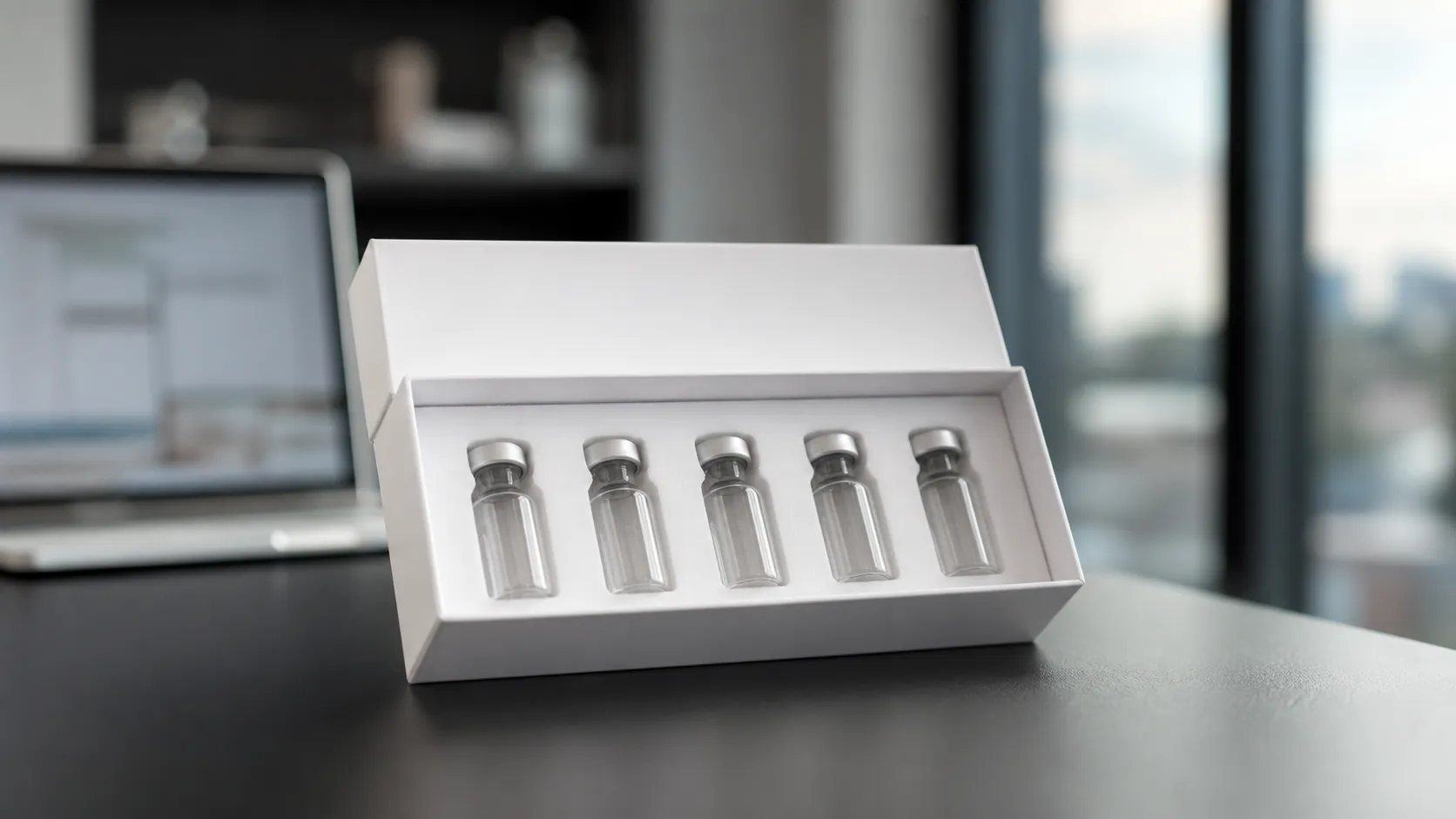

Custom 10ml Vial Box Packaging with Inserts

Executive Overview: Precision 10ml Vial Packaging Box Systems

Jiahua 10ml vial packaging box designs integrate seamlessly into high-speed filling lines, deep-freeze cold chains, and final distribution networks. Whether handling delicate glass or medical-grade plastic, our custom box vial 10ml architecture guarantees maximum structural protection.

Versatile Structural Formats

Key Engineering & Protection Features

• • Impact Absorption: Advanced wall geometry dissipates sudden drop impacts and mechanical shocks.
  • Vibration Damping: Precision-fit pockets hold every 10ml vial box unit firmly in place, eliminating micro-friction during transit.
  • Cold-Chain Stability: Low-temperature polymer formulation prevents cracking during deep freeze and freeze-thaw cycles.
  • Automated Line Compatibility: Dimensionally stable designs support smooth tray loading and high-speed automated cartoning.

Technical Specifications & Material Matrix for 10ml Vial Box Packaging

Engineering & Material Specifications

Precision Manufacturing & Compliance

When developing a custom vial sample box for safe storage and shipping, matching the correct polymer to your chemical profile is crucial. We maintain strict control over every step of the production process:

• • USP Class VI Polymers: We utilize medical-grade resins engineered for extreme thermal stability, chemical inertness, and structural integrity under low temperatures.
  • Controlled Molding Environments: Our production runs operate within certified ISO Class 7 cleanroom packaging facilities to prevent particulate contamination and maintain pristine hygienic conditions.
  • Automated Optical Inspection: Every 10ml vial box structure undergoes high-speed vision inspection to verify precise dimensional accuracy for seamless automated tray-loading and cartoning.
  • Complete Batch Documentation: We provide full raw material certification, lot tracking, and detailed CoAs with every shipped batch of box vial 10ml solutions.

Key Structural & Functional Advantages

Precision Pocket Lock

Our molded interior cavities securely lock each 10ml vial box insert in place, completely eliminating glass-to-glass contact during rapid transport. By pairing these secure cavities with custom precision vial holders, we keep delicate containers completely immobile, preventing stress fractures and seal breaches.

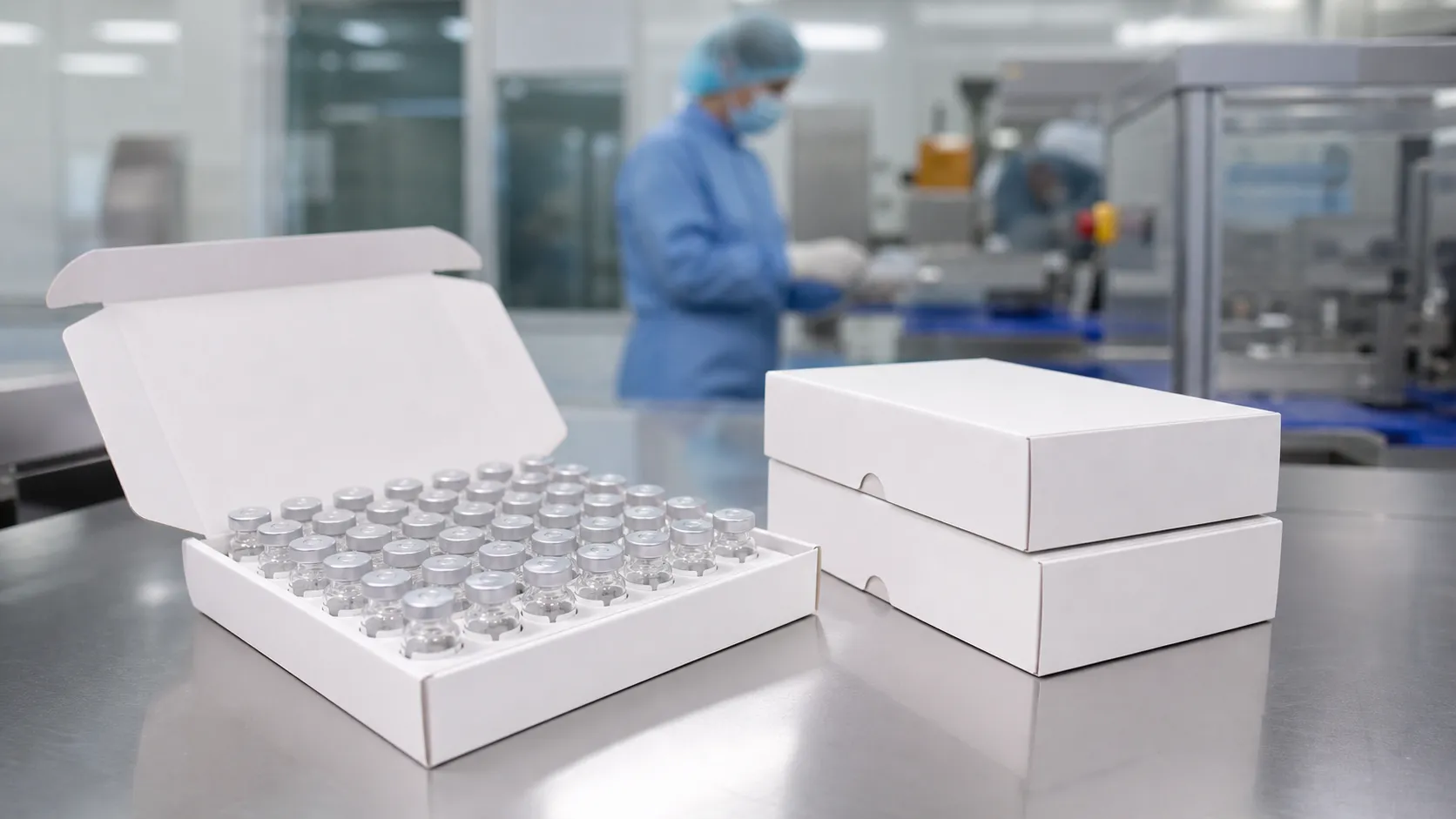

Cleanroom-Grade Surface Finish

We manufacture our packaging using non-shedding, anti-static medical polymers tailored specifically for aseptic filling environments.

• • Zero Particle Shedding: Eliminates particulate contamination in ISO Class 5–8 cleanrooms.
  • Anti-Static Formulation: Prevents dust accumulation and static charge buildup during high-speed automated handling.

Cold-Chain & Thermal Resistance

• • Cryogenic Stability: Withstands deep-freeze cold storage environments down to -80°C.
  • Freeze-Thaw Durability: Maintains full structural integrity and impact resistance across repeated thermal cycling.

Stackable & Space-Efficient Architecture

To maximize warehouse storage density and optimize automated packaging lines, our 10ml vial packaging box systems seamlessly integrate into standard cartoning equipment, tray loaders, and shipping cases. When high-volume processing demands rapid loading, integrating a specialized thermoformed vial tray ensures precise nesting and stable vertical stacking without risking box collapse.

Custom OEM/ODM Engineering & Customization Options

Off-the-shelf packaging rarely fits specialized pharmaceutical and diagnostic requirements. As a leading custom OEM vial box manufacturer, we build tailored 10ml vial box solutions engineered directly for your automated filling lines, storage protocols, and brand identity.

Custom Cavity & Layout Formats

• • Multi-Well Layouts: Standard and custom layouts available in 2-pack, 5-pack, 10-pack, and 20-pack 10ml vial configurations.
  • Mixed-Component Trays: Custom-molded pockets designed to store 10ml vials alongside syringes, diluents, or diagnostic droppers in one secure tray.
  • Automated Line Compatibility: Tooling engineered to match exact pick-and-place robotics tolerances.

Proprietary Mold Tooling & IP Protection

• • In-House CAD Modeling: Rapid 3D modeling and stress analysis prior to mold cutting.
  • Multi-Cavity Tooling: Production capabilities ranging from single-cavity prototyping tools to high-volume multi-cavity production molds.
  • Guaranteed IP Security: Strict confidentiality protocols and proprietary mold ownership to safeguard your designs.

Branding & Product Identification

Through our specialized custom 10ml vial boxes design process, we deliver structurally sound packaging systems built around your specific operational workflows and branding goals.

Target Applications for 10ml Vial Box Packaging

Pharmaceutical & Biologics

• • Aseptic Drug Handling & Storage: Built for cleanroom loading, protecting sensitive injectable drugs, biopharmaceuticals, and vaccines.
  • Cold-Chain Reliability: Our 10ml vial packaging box structures withstand ultra-low temperatures during cold-chain transit without becoming brittle or compromising structural integrity.

Diagnostic & Reagent Kits

• • Organized Kit Containment: We manufacture multi-cavity trays and box inserts to keep multi-component testing assays secure. Explore our specialized diagnostic kit vial packaging designed to streamline high-throughput kit assembly.
  • Zero Cross-Contamination: Precision-molded cavities keep individual vials separate to avoid glass-to-glass contact and protect delicate liquid reagents.

Clinical Trials & Research Labs

• • High-Value Analytical Samples: Provides impact-resistant transport for experimental standards, active pharmaceutical ingredients (APIs), and critical reference samples.
  • Batch Tracking: Smooth surface areas allow effortless placement of tracking barcodes and tamper-evident seals on every 10ml vial box.

Premium Cosmetics & Essential Oils

• • High-Concentrate Serums: Protects active 10ml serum bottle packaging, concentrated ampoules, and volatile essential oils from drop shock and leakage.
  • Retail-Ready Presentation: Combines rugged structural protection with a clean, professional aesthetic for luxury skincare brands.

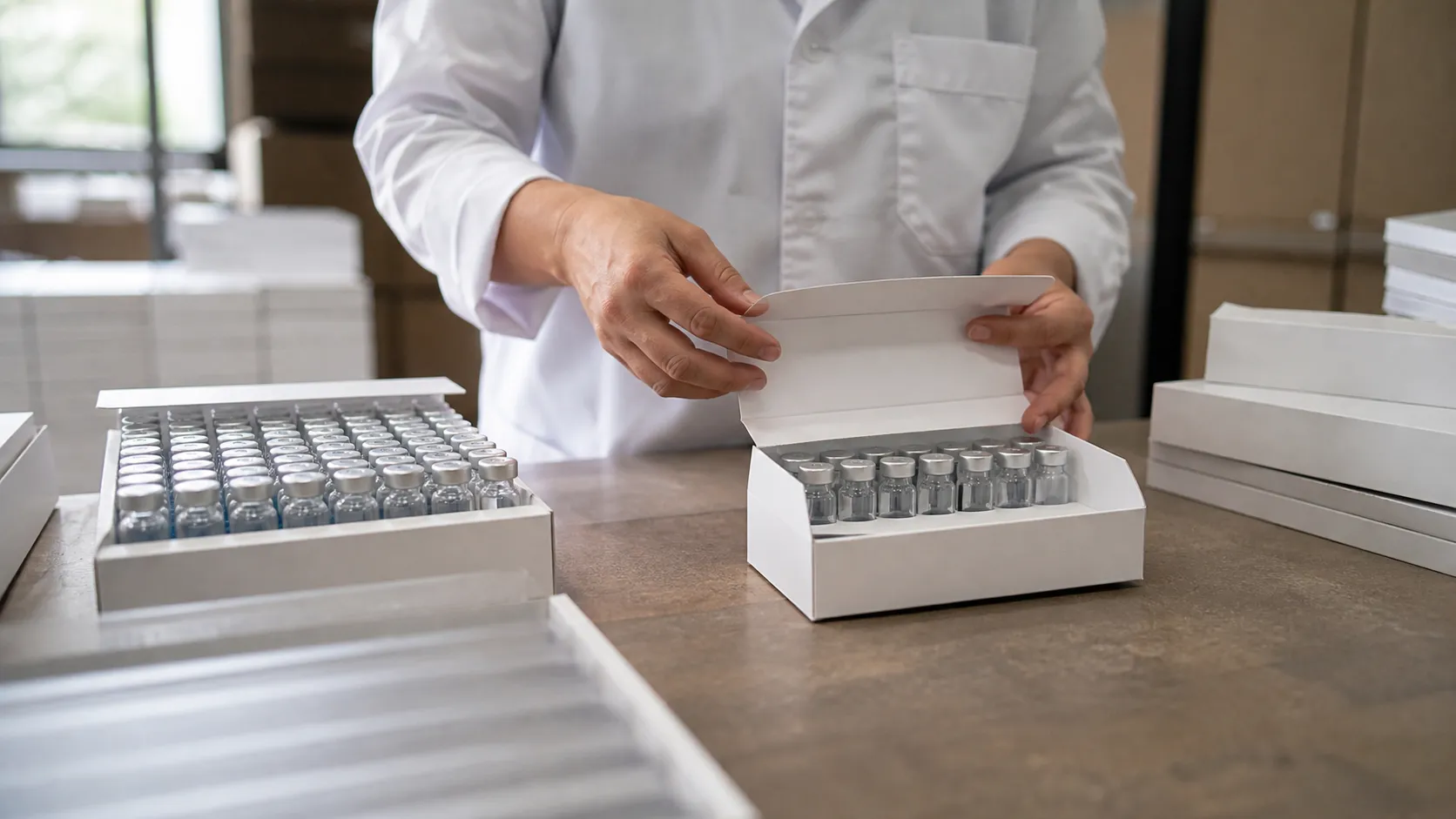

4-Step OEM/ODM Workflow for 10ml Vial Box Packaging

Execution Details for Custom 10ml Vial Packaging

• • Step 1: Technical Consultation
    We analyze your exact 10ml vial dimensions, dimensional tolerances, and packaging line equipment. Our team selects appropriate medical-grade polymers (such as PP, COP, or PETG) tailored to your thermal and structural needs.
  • Step 2: Custom CAD Engineering & Tooling
    We design secure pocket locks and outer structures optimized for impact absorption and space efficiency. All tooling creation is handled in-house with guaranteed intellectual property protection.
  • Step 3: Rapid Prototyping & Validation
    We deliver functional 10ml vial box prototypes within 7 to 10 days. This allows your team to perform physical drop tests, cold-chain evaluations, and equipment trial runs before committing to high-volume tooling.
  • Step 4: Cleanroom Manufacturing & Global Logistics
    Mass production takes place in our ISO Class 7 and Class 8 cleanrooms. Every batch undergoes automated optical inspection, bioburden testing, and strict QC release, complete with Certificates of Analysis for seamless worldwide shipping.

Frequently Asked Questions

Can Jiahua package design a custom 10ml vial box based on specific CAD drawings?

Yes. We work directly with your 3D CAD files (STEP, IGES, SolidWorks) or physical vial samples to engineer exact mold cavity profiles. Our team provides comprehensive technical support to optimize pocket dimensions, shock absorption, and automated line compatibility for your custom 10ml vial boxes.

What are the typical lead times for standard samples versus custom tooling?

• • Standard Stock Samples: Dispatched in 3 to 5 business days.
  • Functional Prototypes: Delivered in 7 to 10 days for direct fit and drop testing.
  • Custom Tooling & Mass Production: 3 to 4 weeks, depending on multi-cavity complexity. Review our tailored customization services to streamline your project timeline.

Do you offer materials suitable for cold-chain biologic storage?

Yes. We mold each 10ml vial packaging box using high-grade USP Class VI polymers—including medical Polypropylene (PP), Cyclic Olefin Copolymer (COC), and PETG. These materials withstand extreme freeze-thaw cycles and maintain structural integrity during ultra-low temperature and cryogenic storage (down to -80°C).
