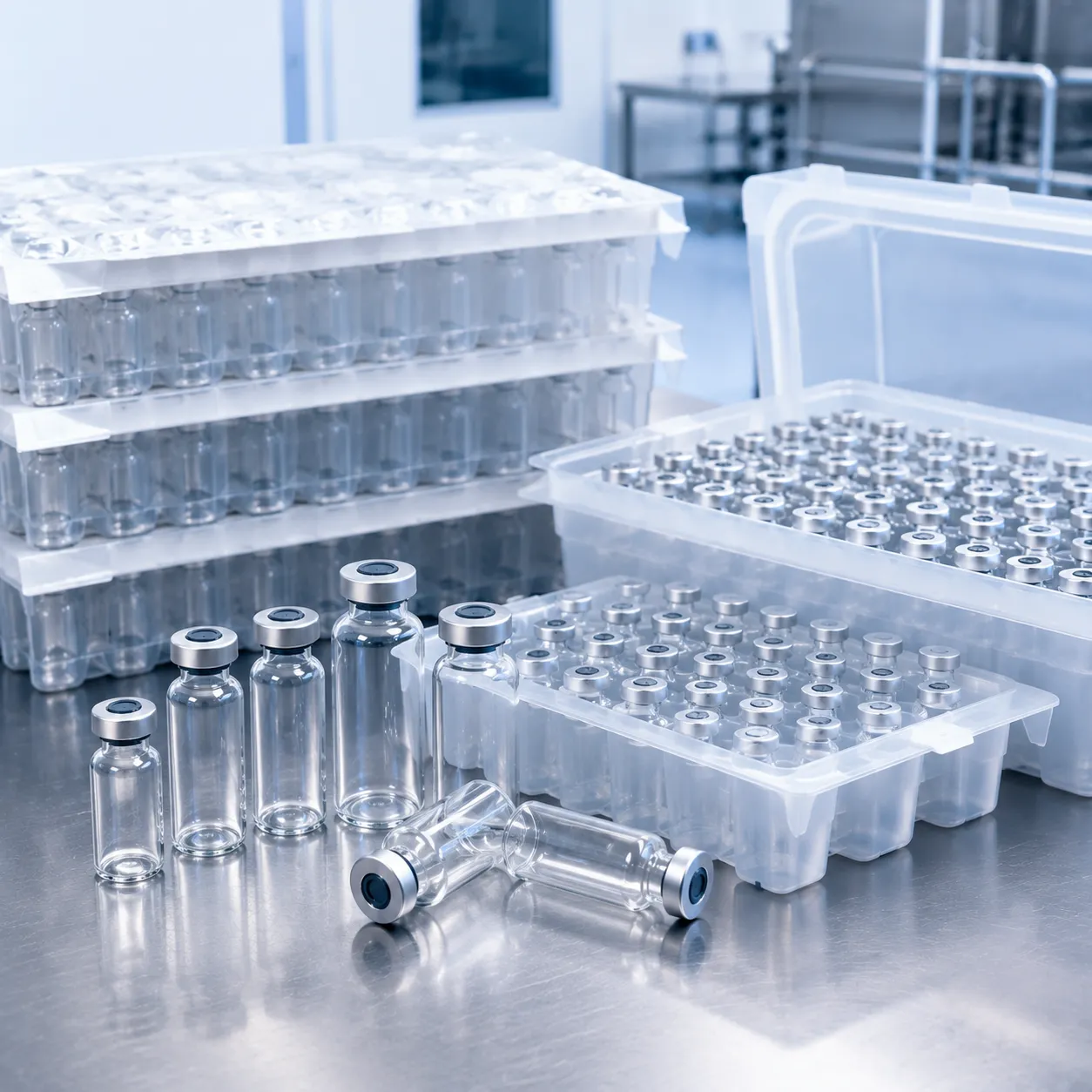

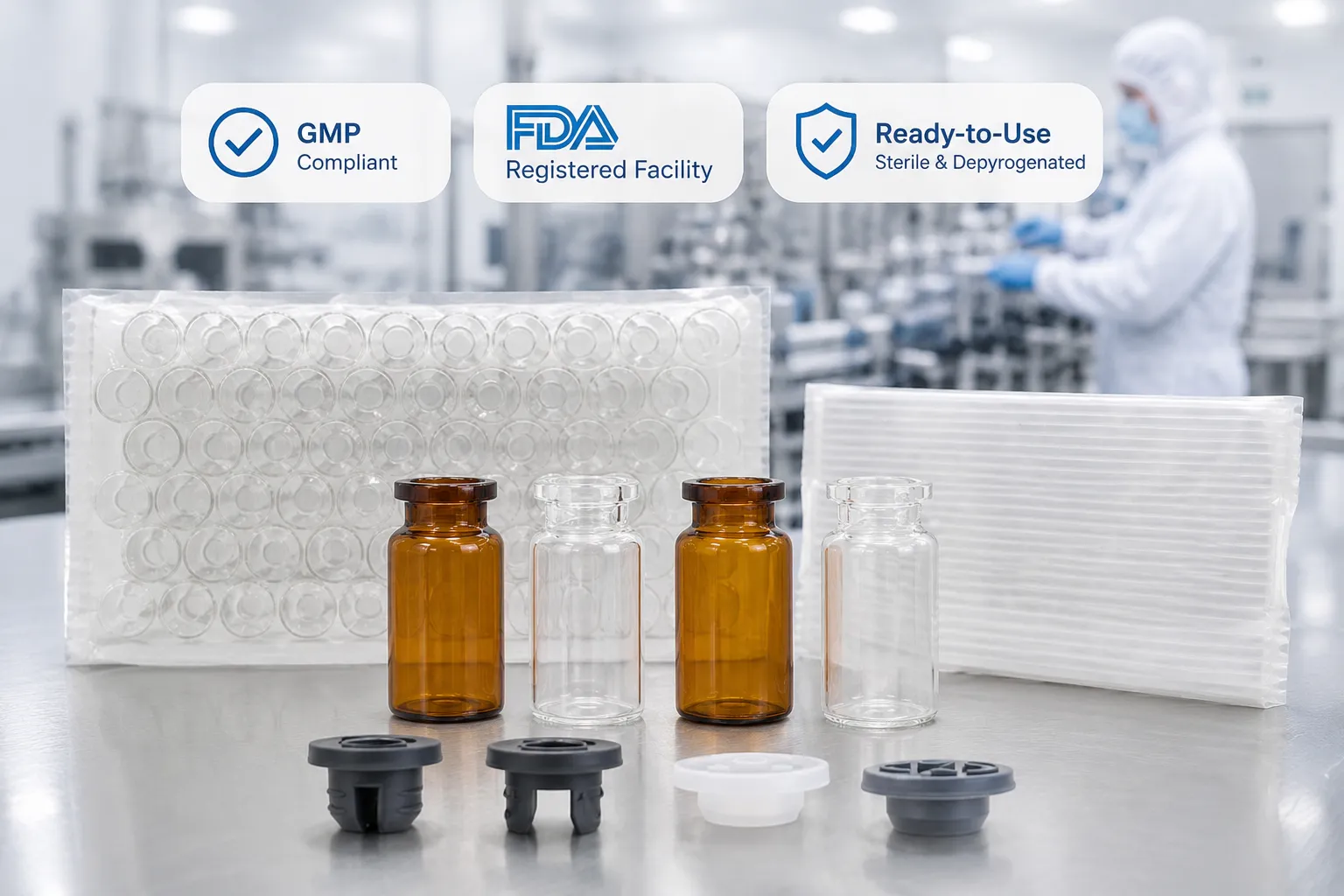

GMP & FDA Compliant Ready-to-Use (RTU) Vials
Jiahua provides certified, washing-free and sterilization-free RTU packaging solutions engineered for seamless integration into high-speed aseptic drug fill-finish lines. Learn more about us and our state-of-the-art facilities.
Aseptic Packaging Innovation
Pre-Sterilized Nest & Tub Configuration
Comprehensive Technical Specification Comparison Matrix
To streamline regulatory filings (including FDA DMF and EU MDR requirements) and simplify fill-finish compatibility testing, the matrix below details primary manufacturing tolerances, chemical resistance profiles, and international standard alignment across Jiahua RTU vial product lines. Read more about-us to understand our manufacturing standards. All processing is conducted under ISO 15378 certified quality management systems in cGMP cleanrooms.
| Specification Parameter | Tubular Glass RTU Vials | Molded Glass RTU Vials | COP & PET Polymer RTU Vials |
|---|---|---|---|
| Primary Material Standard | ISO 8362-1 Type I Borosilicate Glass | ISO 8362-4 Type I, II, or III Glass | USP Class VI Medical-Grade Polymer |
| Hydrolytic Resistance Class | Type I High Chemical Resistance | Type I & Type II Internal Surface Treated | Chemically Inert & Non-Leachable Surface |
| Standard Neck Finishes | 13 mm & 20 mm ISO Crimp Finish | 20 mm & 32 mm Crimp Finish | 13 mm & 20 mm Crimp Finish |
| Sterilization Modality | Ethylene Oxide (EO) or Dry Heat | Ethylene Oxide (EO) or Steam Autoclave | Validated Gamma Irradiation |
| Cleanroom Environment | Class 100 / ISO 5 Washing & Packaging | Class 100 / ISO 5 Washing & Packaging | Class 100 / ISO 5 Molding & Packaging |
| Endotoxin & Particle Control | < 0.06 EU/mL (Depyrogenated) | < 0.06 EU/mL (Depyrogenated) | < 0.03 EU/mL (Endotoxin Free) |
| Target Drug Applications | Biologics, Lyophilized Powders, Vaccines | Large Volume Parenterals, IV Solutions | Cryogenic Biologics, Cytotoxics, ADCs |
ISO 8362 Dimensional Precision for Automated Fill-Finish
Precise alignment between primary container dimensions and automated fill-finish lines is vital for minimizing line stoppages and ensuring container closure integrity (CCI). Jiahua RTU vials are manufactured to strict ISO 8362 tolerances covering wall thickness uniformity, flange geometry, crown height, and overall vial height.
This rigorous dimensional control guarantees smooth handling in high-speed nesting, depyrogenation tunnels, robotic de-nesting, and automated stoppering stations. By reducing dimensional variance, pharmaceutical packaging engineers achieve higher line efficiency, lower rejection rates, and consistent seal integrity across commercial production batches.
Lyophilization Neck Geometry and Surface Integrity
For freeze-dried formulations, neck profile geometry directly impacts sublimation efficiency and stopper retention. Jiahua lyophilization-ready RTU vials feature engineered blowback rings designed to prevent stopper backing-out during high-vacuum sublimation and stoppering operations.
Additionally, advanced washing and depyrogenation protocols maintain the high surface energy of Type I borosilicate glass, encouraging uniform cake formation and optimal thermal transmission. Comprehensive extractable and leachable (E&L) testing confirms compatibility with sensitive proteins, peptides, and monoclonal antibodies.
Aseptic Processing and Nest-Tub Packaging Technology
Jiahua integrates automated WFI washing, continuous high-temperature depyrogenation, and Grade C+A Class 100 cleanroom packaging to deliver fully ready-to-use depyrogenated vials. Designed for modern sterile drug fill-finish operations, our nested vial packaging solutions eliminate on-site washing, depyrogenation tunnels, and complex sterilization validation. Learn more on our about-us page.
The Four-Stage Aseptic Manufacturing Process
How primary glass containers are transformed into sterile, ready-to-fill nested vial packaging.
WFI High-Pressure Washing
Primary glass vials undergo multi-stage internal and external washing using compressed air and hot Water-for-Injection (WFI) under high pressure to remove all sub-visible surface particulates and contaminants.
- Pharma-grade WFI rinsing
- Sub-micron particle removal
Ultra-Temp Depyrogenation
Washed vials pass through a continuous depyrogenation tunnel operating above 250°C. Controlled dry-heat sterilization ensures complete endotoxin inactivation, meeting stringent sterile drug fill-finish specifications.
- 250°C+ thermal tunnel
- Complete endotoxin destruction
Class 100 Nest-Tub Packing
Depyrogenated vials directly enter a Grade C+A Class 100 cleanroom environment. High-precision robotic handlers automatically insert vials into honeycomb nests inside protective polypropylene tubs.
- Grade C+A cleanroom environment
- Automated robotic placement
Sterilization and Sealing
Tubs are sealed with gas-permeable Tyvek® lids, double-bagged in sterile barrier packaging, and terminally sterilized via validated EO or Gamma processing for immediate cleanroom introduction.
- Double-bag sterile barrier
- Validated EO or Gamma sterilization

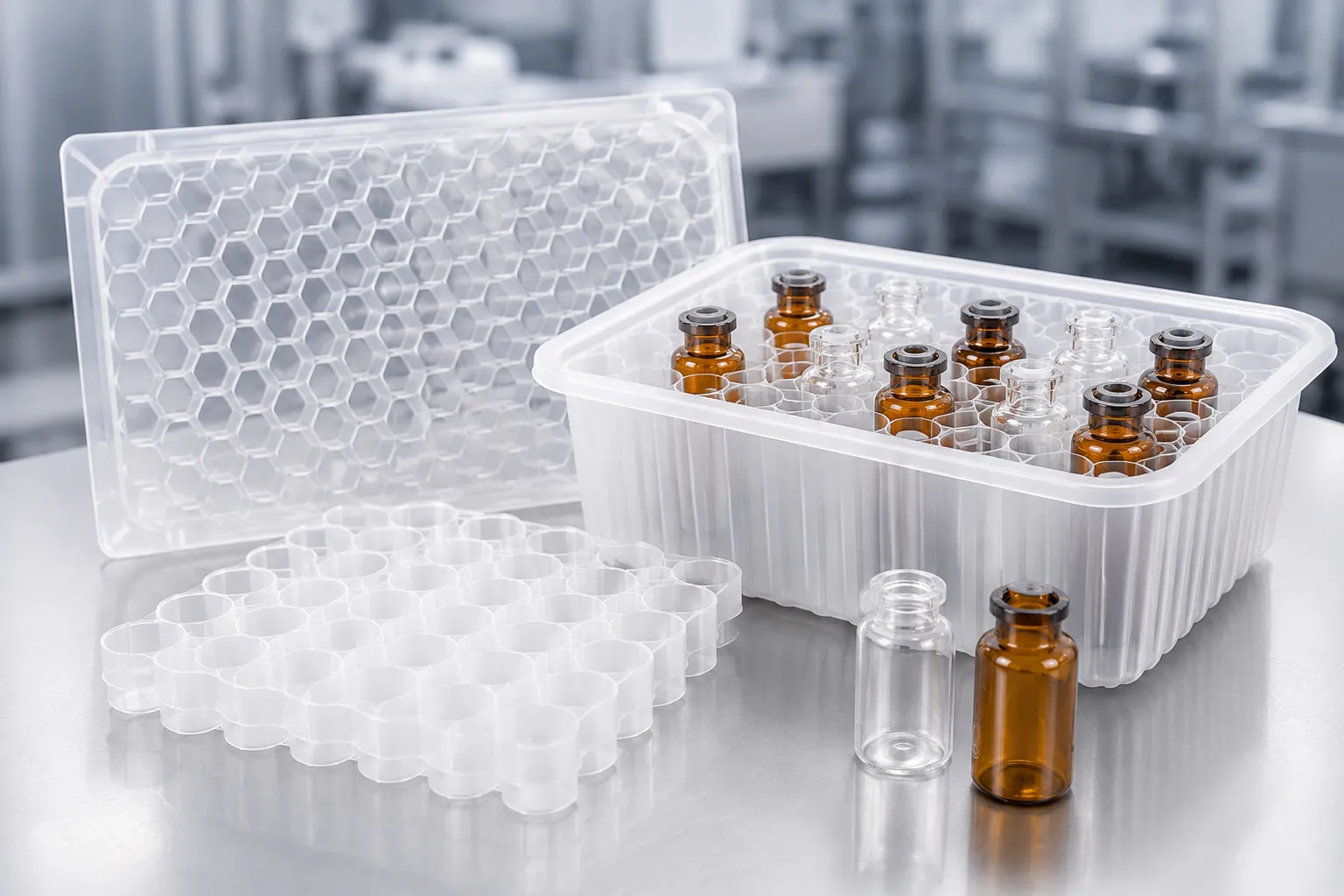

Honeycomb Nest and Tub Structure for Glass Protection
Traditional bulk vial packaging introduces significant operational risks, including glass-to-glass friction, cosmetic scratches, and particle generation. Jiahua solves these challenges by utilizing precision-engineered nested vial packaging designs that keep every container individually isolated during transit and handling.
Zero Glass-to-Glass Contact
Each vial rests securely inside an isolated honeycomb cell, preventing surface contact and completely eliminating scratching, chipping, or cosmetic defects.
Reduced Mechanical Impact
The high-rigidity polypropylene Tub protects containers against external physical forces, dramatically reducing breakage rates during transport and automated handling.
Lyophilization Compatibility
Engineered Nest designs facilitate rapid automated bottom-access or side extraction, fully supporting freeze-drying applications without compromising sterile integrity.

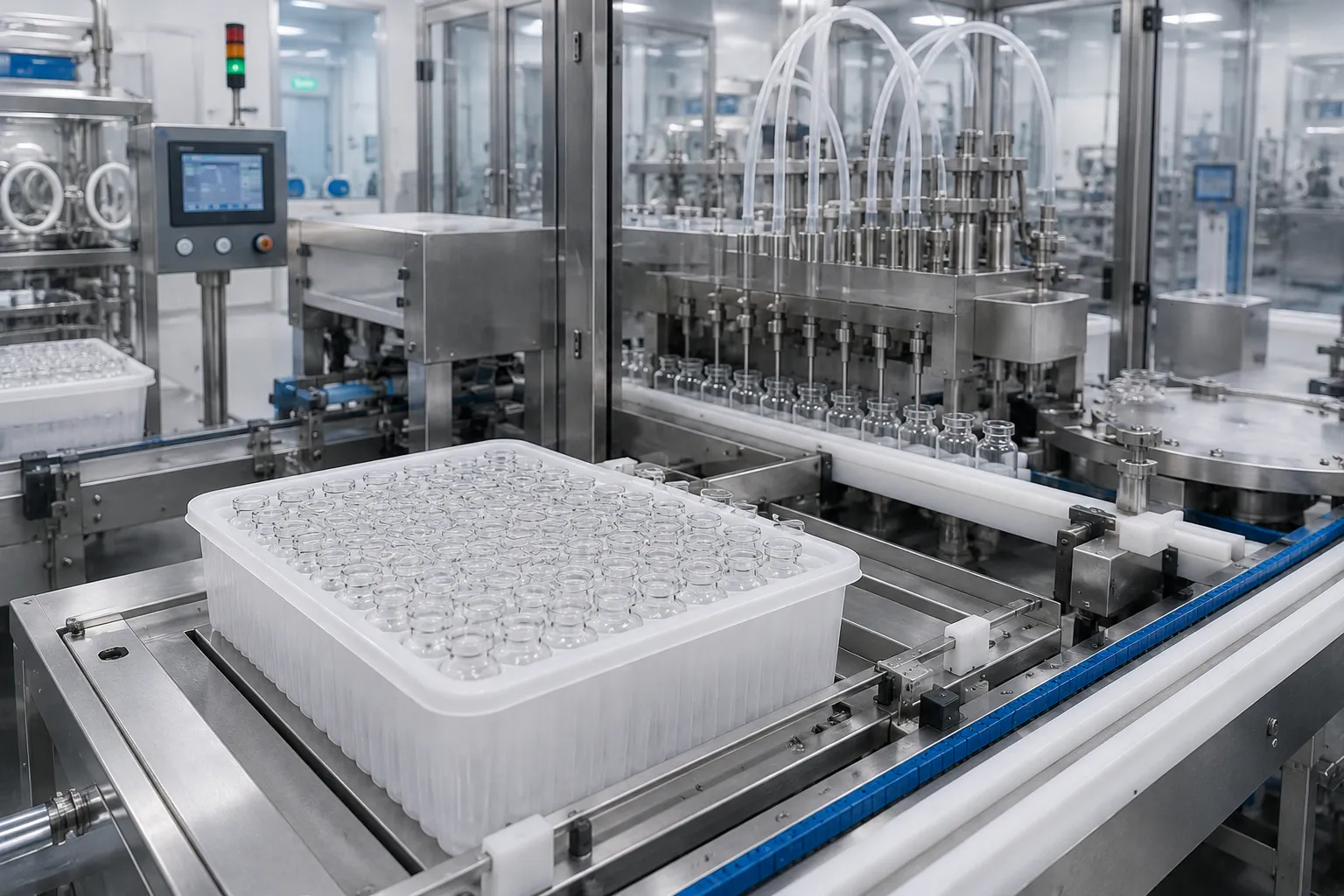

Seamless Integration with Mainstream Aseptic Filling Lines
To meet modern pharmaceutical high-speed filling standards, Jiahua RTU vials and Nest-Tub formats strictly adhere to international dimensional standards including ISO 8362. This guarantees direct compatibility with global automated isolators and combi-filling lines.
- SKAN Isolator Systems: Optimized tub dimension tolerances for robotic debagging and de-lidding under laminar airflow.
- Bausch+Ströbel Packaging Lines: Smooth nest transfer into high-speed dosage and stoppering stations without jam risks.
- OPTIMA Combi Filling Lines: Flexible processing for multi-format fill lines supporting 2ml to 20ml ready-to-use vials.
Why Leading Pharmaceutical Manufacturers Trust Jiahua RTU Vials
Managing an in-house washing and depyrogenation department demands immense capital expenditure, continuous utility consumption, and ongoing regulatory validation. By transitioning to Jiahua pre-sterilized depyrogenated vials packaged in Nest & Tub formats, pharmaceutical companies streamline their supply chain and significantly lower Total Cost of Ownership (TCO).
Validated SAL 10-6 sterility assurance level compliant with ISO 11135 and ISO 11137 standards.
Processed under Grade A airflow to ensure sub-visible particle levels far below standard pharmacopeia thresholds.
Direct loading into cleanroom isolators eliminates washing equipment CAPEX and validation delays.
RTU Vials vs Traditional Vials: Commercial Efficiency and Total Cost of Ownership
Transitioning from traditional bulk vial processing to ready-to-use (rtu packaging) sterile pharmaceutical packaging fundamentally alters the financial and operational performance of aseptic fill-finish operations. Jiahua RTU vial solutions eliminate multimillion-dollar capital investments in washing and depyrogenation infrastructure while dramatically reducing ongoing utility consumption, line validation schedules, and high-grade cleanroom floor space requirements.
60%
Cleanroom Footprint Reduction
Saves up to 60% of fill-finish cleanroom space by completely eliminating vial washers and depyrogenation tunnels.
70%
Faster Time-to-Market
Accelerates product commercialization by skipping months of washing, depyrogenation, and thermal validation protocols.
0%
Glass-to-Glass Contact
Nest and Tub packaging prevents vial friction, virtually driving cosmetic scratches and surface defect rates down to zero.
$M+
CAPEX Savings Per Line
Avoids upfront capital investments in heavy cleaning machinery, WFI loops, steam generators, and thermal tunnels.
Comparative Financial and Operational Impact Matrix
| Evaluation Dimension | Traditional Bulk Processing Workflow | Jiahua RTU Vial Solution | Commercial & Financial Benefit |
|---|---|---|---|
| Capital Expenditure (CAPEX) | High initial investment in rotary vial washers, depyrogenation tunnels, clean steam generators, and WFI loops. | Zero cleaning or depyrogenation equipment required on the primary aseptic fill-finish line. | Saves millions in upfront facility buildout, machinery acquisition, and facility qualification costs. |
| Operational Expenditure (OPEX) | Continuous heavy consumption of WFI, purified water, electricity for continuous thermal tunnels, and ongoing maintenance. | Eliminates energy and utility consumption required for washing and high-temperature thermal depyrogenation. | Substantially lowers daily energy bills, clean utility generation expenses, and technical labor overhead. |
| Cleanroom Facility Footprint | Requires extensive Grade A/B/C cleanroom acreage for washing machinery, depyrogenation equipment, and staged inventory. | Direct-to-fill nested format integrates into compact isolator lines, reducing cleanroom footprint by up to 60%. | Maximizes output per square meter and facilitates flexible, multi-product modular fill-finish suites. |
| Validation & Regulatory Compliance | Complex, multi-month re-validation schedules for endotoxin removal, thermal distribution profiles, and cleaning verification. | Pre-validated packaging certified compliant with ISO 15378, ISO 8362, and EU GMP Annex 1 requirements. | Reduces regulatory validation timelines and accelerates commercial drug launches by up to 70%. |
| Contamination & Reject Rates | Bulk handling causes glass-to-glass collisions, resulting in surface scratches, particle generation, and elevated rejection rates. | Nest and Tub configuration isolates each vial, preventing contact, cosmetic defects, and glass shedding. | Achieves near-zero rejection rates for high-value biologics, vaccines, and lyophilized formulations. |
| Batch Turnover Speed | Long line purge, cooling, thermal stabilization, and cleaning changeover cycles between distinct product runs. | Plug-and-play tray format enables rapid changeover between different vial sizes and liquid/lyo products. | Increases overall equipment effectiveness (OEE) and flexibility for small-batch and multi-SKU manufacturing. |
Capital Expenditure Optimization and Cleanroom Space Maximization
In modern biopharmaceutical manufacturing, high-grade cleanroom real estate carries substantial capital and operating costs. Traditional fill-finish installations require large allocations of Grade A through C cleanroom space to accommodate automated vial washing equipment, continuous high-temperature depyrogenation tunnels, and associated clean utility infrastructure such as Water-for-Injection (WFI) generation loops and pure steam systems. Capital investments for these preparation steps regularly run into millions of dollars per manufacturing line before accounting for ongoing maintenance, utility consumption, and spare parts inventory.
Adopting Jiahua RTU vials restructures this financial dynamic entirely. Because vials arrive pre-washed, depyrogenated, and pre-sterilized in certified Nest & Tub tray configurations, pharmaceutical manufacturers can bypass the entire bulk washing and thermal depyrogenation suite. This direct-to-fill packaging strategy reduces cleanroom footprint requirements by up to 60%, allowing companies to construct smaller, modular manufacturing facilities or reallocate existing floor space toward additional high-value compounding, lyophilization capacity, or secondary packaging operations.
Streamlined Validation Framework and Regulatory Compliance
Beyond physical hardware expenditures, traditional vial processing places a massive ongoing analytical and administrative burden on Quality Assurance and Qualification teams. Establishing and maintaining validated status for thermal depyrogenation tunnels and rotary washers requires continuous bacterial endotoxin challenge testing, environmental particulate monitoring, thermal distribution mapping, and cleaning agent residue testing to satisfy stringent regulatory mandates.
Jiahua simplifies this compliance landscape by supplying ready-to-use vials accompanied by comprehensive validation packages, including Certificates of Analysis (COA), endotoxin challenge verifications, particulate counts, and container closure integrity documentation. Fully aligned with ISO 15378 quality management standards and compliant with revised EU GMP Annex 1 guidelines for sterile medicinal products, Jiahua RTU solutions drastically simplify regulatory filings, compress line qualification schedules from months to weeks, and remove critical compliance bottlenecks during drug commercialization.
- ISO 15378 Certified Processing: Full GMP compliance verified through rigorous quality-certifications for primary pharmaceutical packaging materials.
- EU GMP Annex 1 Ready: Engineered to meet strict particle thresholds and contamination control strategies.
- Comprehensive Quality Documentation: Detailed Extractables & Leachables (E&L) and CCIT test reports.
- Reduced Qualification Overhead: Minimizes internal QA resource commitment during site audits and line changeovers.
Risk Reduction and Operational Efficiency in Biopharmaceutical Manufacturing
In bulk vial processing, mechanical conveyance through rotary washers, accumulation tables, and continuous tunnels subjects glass containers to persistent glass-to-glass contact. This contact generates cosmetic scratches, micro-fractures, and sub-visible glass particulate contamination—a leading cause of batch rejections, product loss, and recall risks for high-potency biologics, cell therapies, and lyophilized drugs.
Jiahua RTU vials utilize precision-engineered Nest & Tub packaging systems that suspend each individual vial in a rigid honeycomb matrix, entirely isolating containers throughout transport, debagging, filling, and stopper insertion. Eliminating glass-to-glass contact protects container closure integrity and preserves surface aesthetic quality, driving reject rates down to near zero. For high-value drug formulations, preventing the rejection of even a single production batch far outweighs the incremental cost of pre-sterilized packaging, delivering a rapid, measurable, and sustainable return on investment.
Calculate Your Custom TCO Savings with Jiahua RTU Vials
Accelerate your commercial fill-finish lines, eliminate unnecessary equipment validation, and reduce cleanroom capital expenditures. Discover how Jiahua ready-to-use packaging solutions optimize drug product manufacturing.
Global Regulatory Compliance & Quality Assurance for GMP RTU Vials
Jiahua operates under strict ISO 15378 certified quality management systems to supply certified GMP RTU vials for sterile fill-finish operations. Every ready-to-use batch undergoes comprehensive physical, chemical, and microbiological release testing, ensuring full EU GMP Annex 1 compliance, zero-defect container integrity, and smooth drug registration worldwide. Learn more about our commitment to quality on our quality-certifications page.
Certified Global Compliance Framework
Exhaustive compliance credentials supporting regulatory filings in North America, Europe, and global pharma markets.
US FDA DMF Filing
Active DMF Registration
Registered Type III Drug Master File with the US FDA, providing Letters of Authorization (LOA) to streamline client drug application filings.
ISO 15378 Certified
Primary Packaging GMP
Dedicated quality management system enforcing medicinal primary rtu-packaging GMP compliance across all washed, depyrogenated, and nested RTU vial production.
EU GMP Annex 1
Sterile Fill-Finish Ready
Fully aligned with Annex 1 contamination control strategies (CCS), ensuring robust sterile barrier protection and minimal particulate contamination during fill-finish.
ISO 13485 Quality System
Medical Quality Management
Complete medical device quality management ensuring precise dimensional tolerances, zero cosmetic defects, and batch-to-batch consistency.
Comprehensive Quality Inspection Protocol
Every batch of Jiahua ready-to-use vials undergoes 100% automated vision inspection and multi-point laboratory release testing prior to final release.
| Inspection Parameter | Reference Standard | Acceptance Criteria | Quality Assurance Scope |
|---|---|---|---|
| Inner Surface Water Resistance | USP <660> / Ph. Eur. 3.2.1 | Type I Borosilicate Glass Limits | Eliminates glass delamination and prevents active pharmaceutical ingredient (API) interaction |
| Sub-visible Particulate Matter | USP <788> / EP 2.9.19 | Substantially Below Compendial Limits | 100% optical camera inspection in ISO Class 5 cleanrooms to eliminate particulate risks |
| Bacterial Endotoxin Content | USP <85> / EP 2.6.14 | < 0.05 EU/mL (Depyrogenated) | Depyrogenation tunnel processing guarantees safety for sensitive parenteral injections |
| Container Closure Integrity (CCIT) | USP <1207> Guidelines | Zero Microbial Ingress / High Voltage Leak | Validates sterile barrier protection and long-term shelf life integrity |
| Dimensional & Cosmetic Precision | ISO 8362-1 Standards | AQL 0.010 Critical Defects | Ensures flawless compatibility with high-speed automated nest filling machinery |
Comprehensive Batch COA & Technical Dossiers
To accelerate regulatory audits and fill-finish line validation, Jiahua delivers robust compliance documentation with every order. Every shipment of ready-to-use vials includes full lot traceability, enabling seamless QA release and immediate aseptic filling.
Batch Integrity Guarantee
Jiahua maintains strict quality control from raw tubular glass inspection to final nest-and-tub sterile delivery.
Request the Full RTU Vial Validation Package
Accelerate your aseptic filling line qualification and drug filing. Request Jiahua's regulatory package, including FDA DMF authorization letters, ISO certifications, E&L data, and sample COA documentation.
Ready to Discuss Your RTU Vial Requirements?
Tell us your vial size, annual volume, filling line requirements and packaging configuration. Jiahua will recommend a suitable ready-to-use vial solution and provide samples, technical support and a customized quotation.
