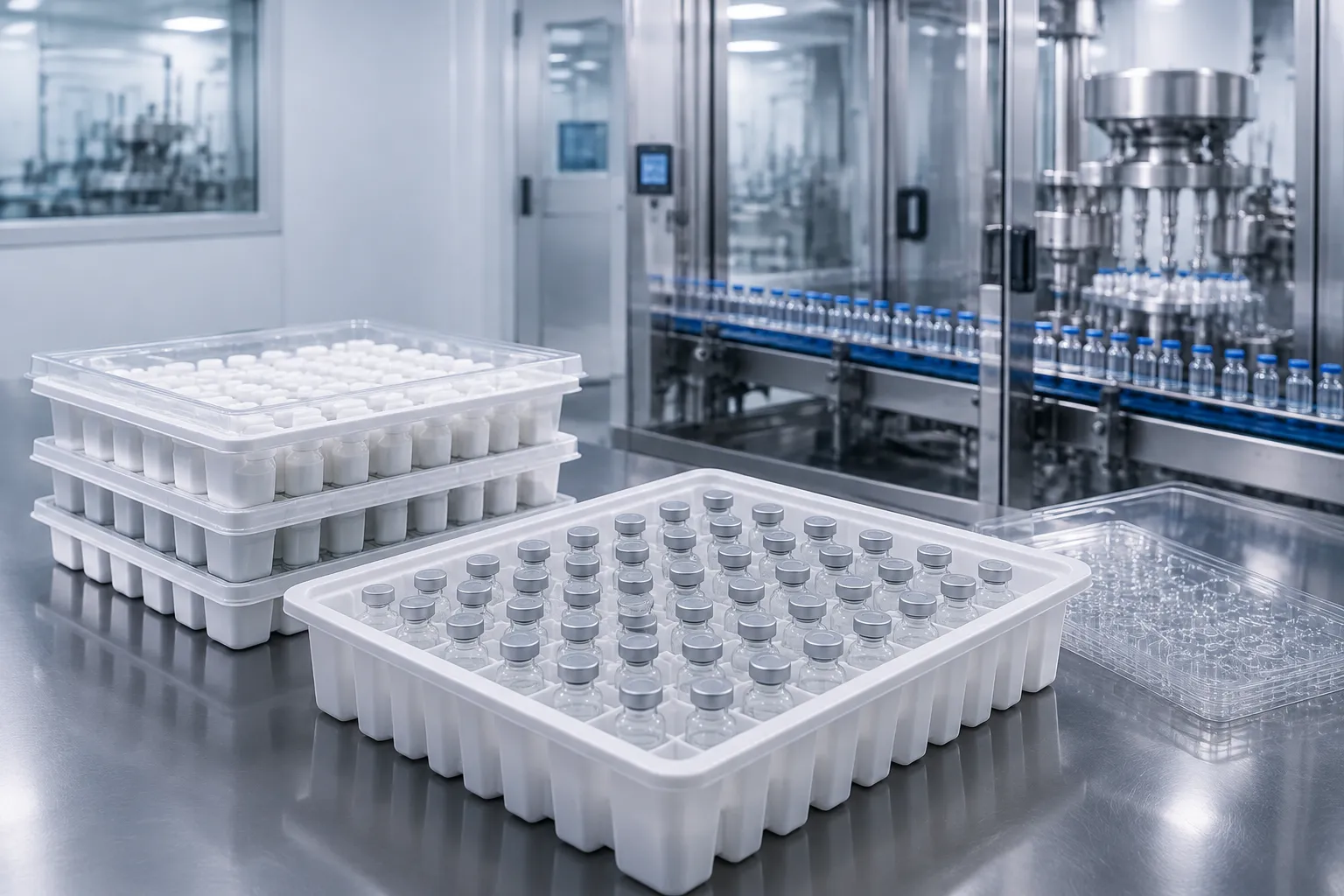

Precision Nest & Tub Systems: Advanced RTU Packaging for Automated Aseptic Filling
Engineered for sterile vials, prefilled syringes, and cartridges, our Ready-to-Use (RTU packaging) nest and tub systems eliminate container-to-container contact, protecting surface integrity while integrating seamlessly with high-speed robotic filling lines.
Jiahua Packaging Solutions delivers compliant, high-precision sterile filling nested containers to global pharmaceutical and biotech manufacturers, guaranteeing end-to-end product safety and maximum operational efficiency.
Modular Physical Isolation Architecture: Precision Synergy Between Nest and Tub
A high-performance sterile nest and tub design forms the backbone of modern Ready-to-Use (RTU) packaging pharmaceutical manufacturing, seamlessly merging physical isolation with high-speed robotic automation. Jiahua's precision-engineered nested containment delivers verified zero contact containment across every handling stage—eliminating glass-to-glass friction, cosmetic micro-scratches, and sub-visible particulate generation during automated fill-finish operations.

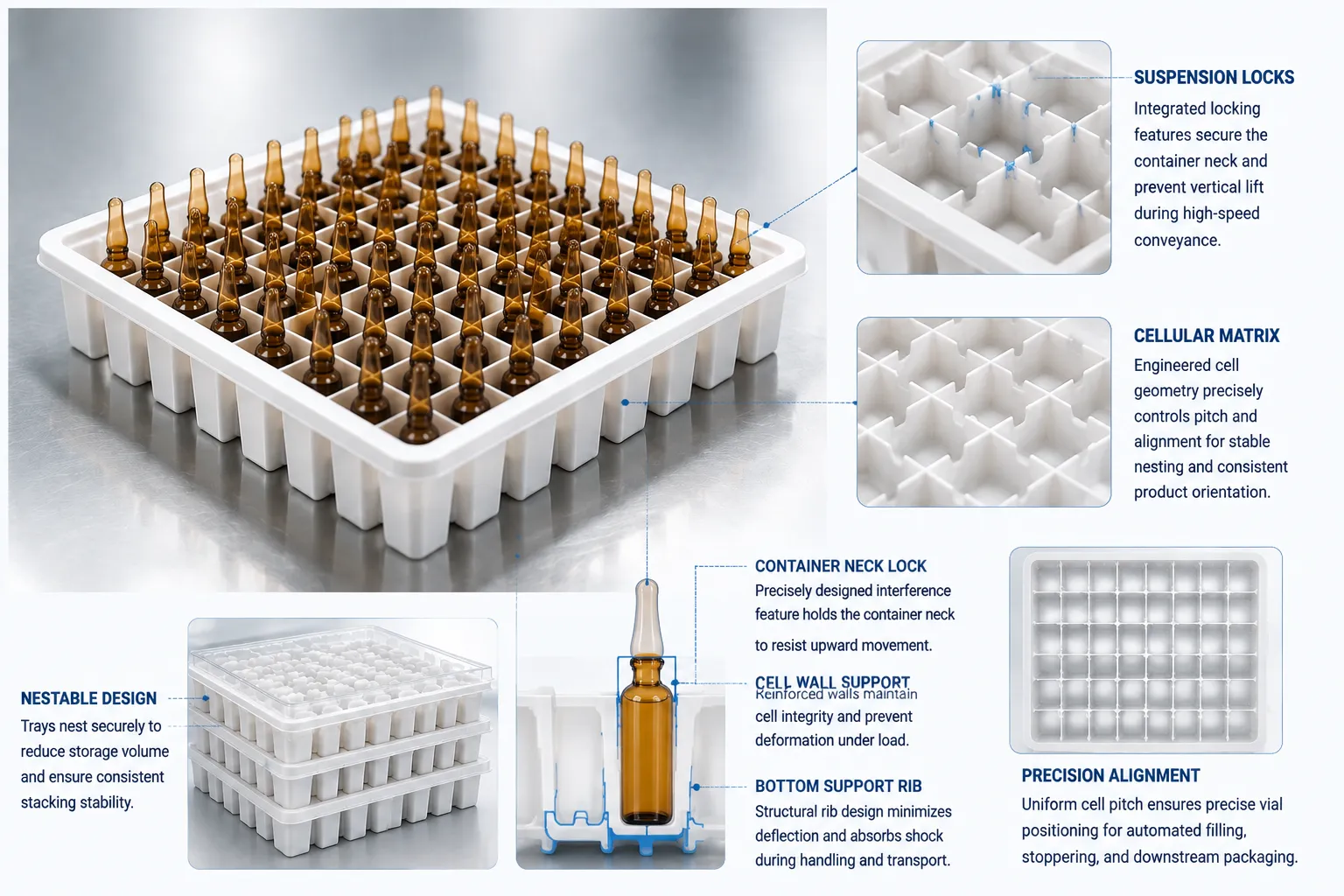

Cellular Nest Tray Matrix & Neck Locking Precision
The inner cellular nest tray utilizes an injection-molded matrix engineered with precise elastic clip-lock finger structures. Purpose-built for sterile RTU Vials, prefilled syringes, and cartridges, each individual aperture suspends containers securely by the neck or flange, isolating each body completely within its own designated pocket.
- Zero Glass-to-Glass Contact: Guarantees complete mechanical separation to eliminate container collision, micro-fractures, and cosmetic scratches during transit and high-speed conveying.
- Robotic Pick-and-Place Compatibility: Ultra-tight dimensional tolerances (±0.10mm) ensure deterministic positioning for seamless pick-and-place execution by high-speed robotic arms.
- On-Tray Processing Flexibility: Engineered for direct in-nest dosing, lyophilizate stopper positioning, and vacuum-assisted stoppering without needing to extract individual containers.
Evaluate Line Compatibility
Download native 3D CAD models (.STEP / .IGES) and technical datasheets for line integration mockups.
Integrated Ready-to-Use (RTU) Packaging Workflow
Transitioning from traditional wash-and-sterilize processing lines to a pre-sterilized RTU packaging workflow fundamentally streamlines pharmaceutical fill-finish operations. Backed by state-of-the-art manufacturing infrastructure, Jiahua's pre-sterilized nest and tub systems help drug manufacturers eliminate capital-intensive bottle washing units, energy-demanding depyrogenation tunnels, and continuous Water-for-Injection (WFI) consumption while maintaining uncompromising sterility assurance.
Outer Bag Debagging
Outer protective polybags are automatically stripped inside ISO Class 5 cleanroom airlocks or isolator transfer chambers under unidirectional airflow.
Tub Infeed & Lid Peeling
The sealed tub enters the aseptic core, where automated robotic grippers peel away the Tyvek heat-sealed cover without generating particulate debris.
In-Nest Aseptic Dosing
Multi-head dosing needles align directly above individual openings, filling liquid or lyophilized product while containers remain fully secured in the cellular nest tray.
Simultaneous Stoppering
Elastomeric stoppers or plunger rods are precisely placed using vacuum-assisted or mechanical insertion heads across the entire nested grid.
Automated Denesting & Inspection
Filled containers are smoothly lifted from the nested matrix for high-speed automated visual inspection, plunger insertion, and secondary packaging.
Key Manufacturing & Cost Efficiency Metrics
Implementing Jiahua RTU nest and tub packaging slashes cleanroom floor footprint by up to 40% and drastically lowers total cost of ownership (TCO) by cutting water and energy overheads.
Multi-Container Compatibility Matrix
Standardized Ready-to-Use (RTU) nest and tub configurations engineered for seamless protection and automated handling across primary pharmaceutical containers.

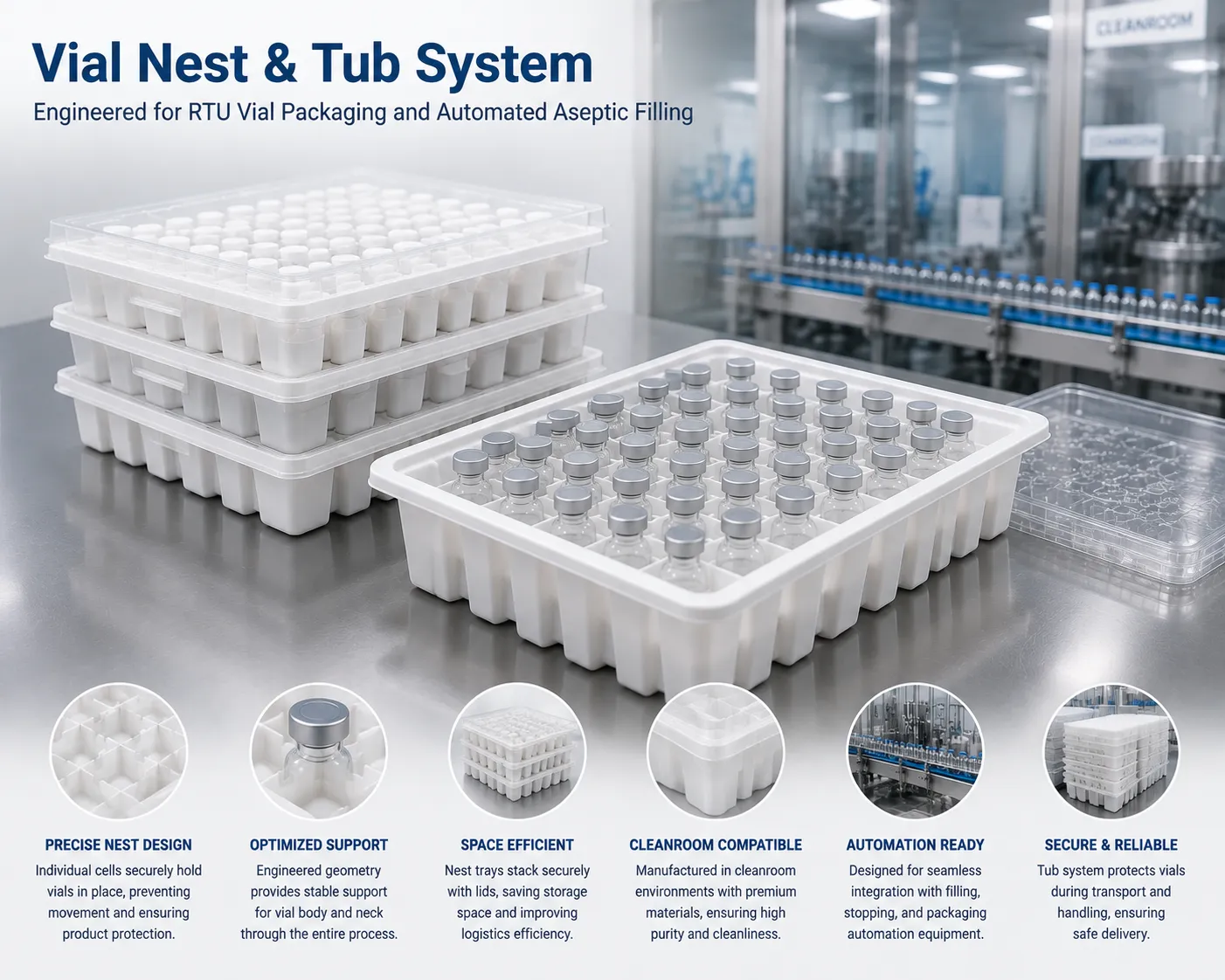

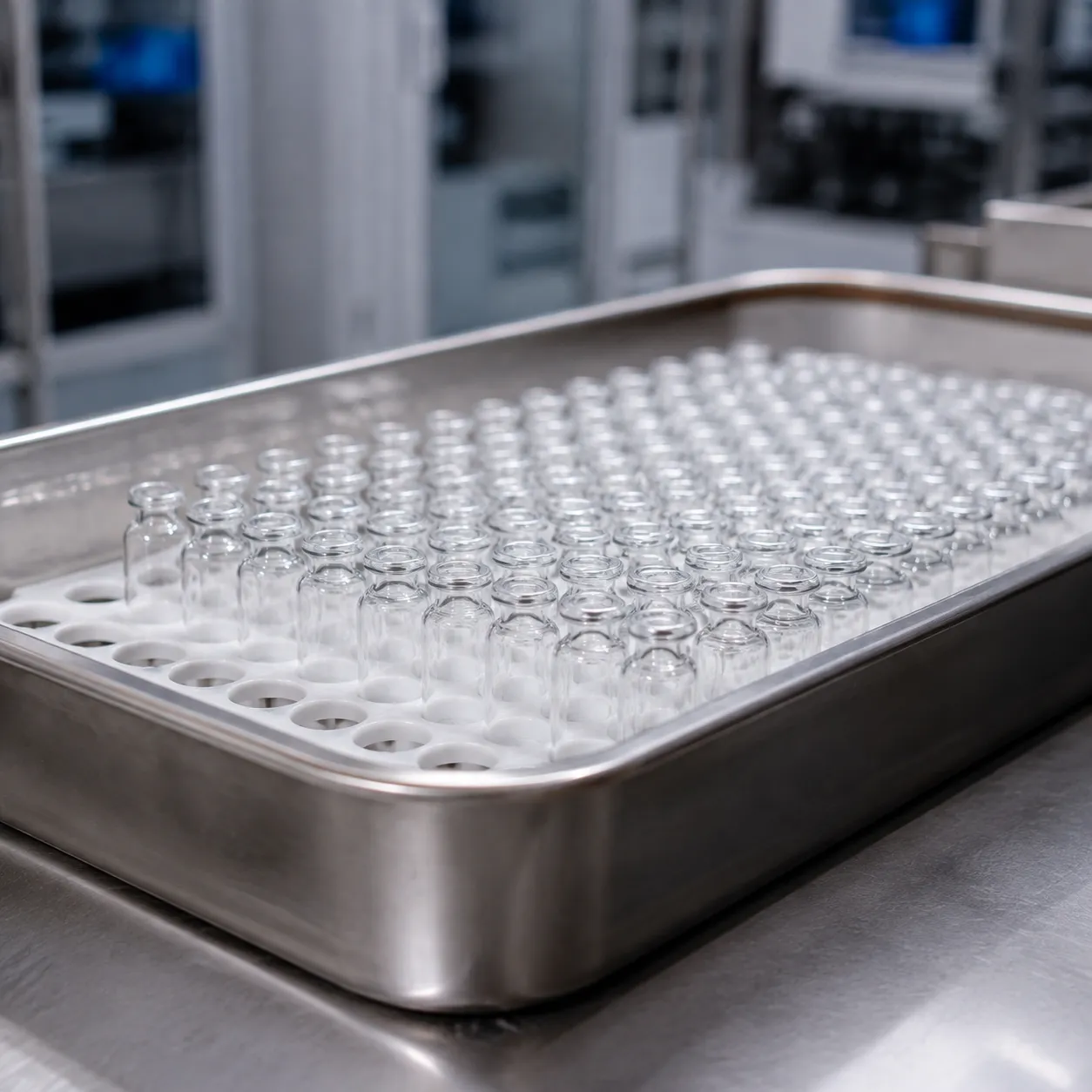

Vial Nest & Tub System
Precision vial nest and tub architecture providing rigid isolation and zero contact during automated aseptic fill-finish operations.
- Cellular clip-lock positioning locks vial necks to prevent vibration displacement.
- Fully supports on-tray lyophilization workflows without removing containers.
- Eliminates glass-to-glass contact to minimize particle generation and breakage.

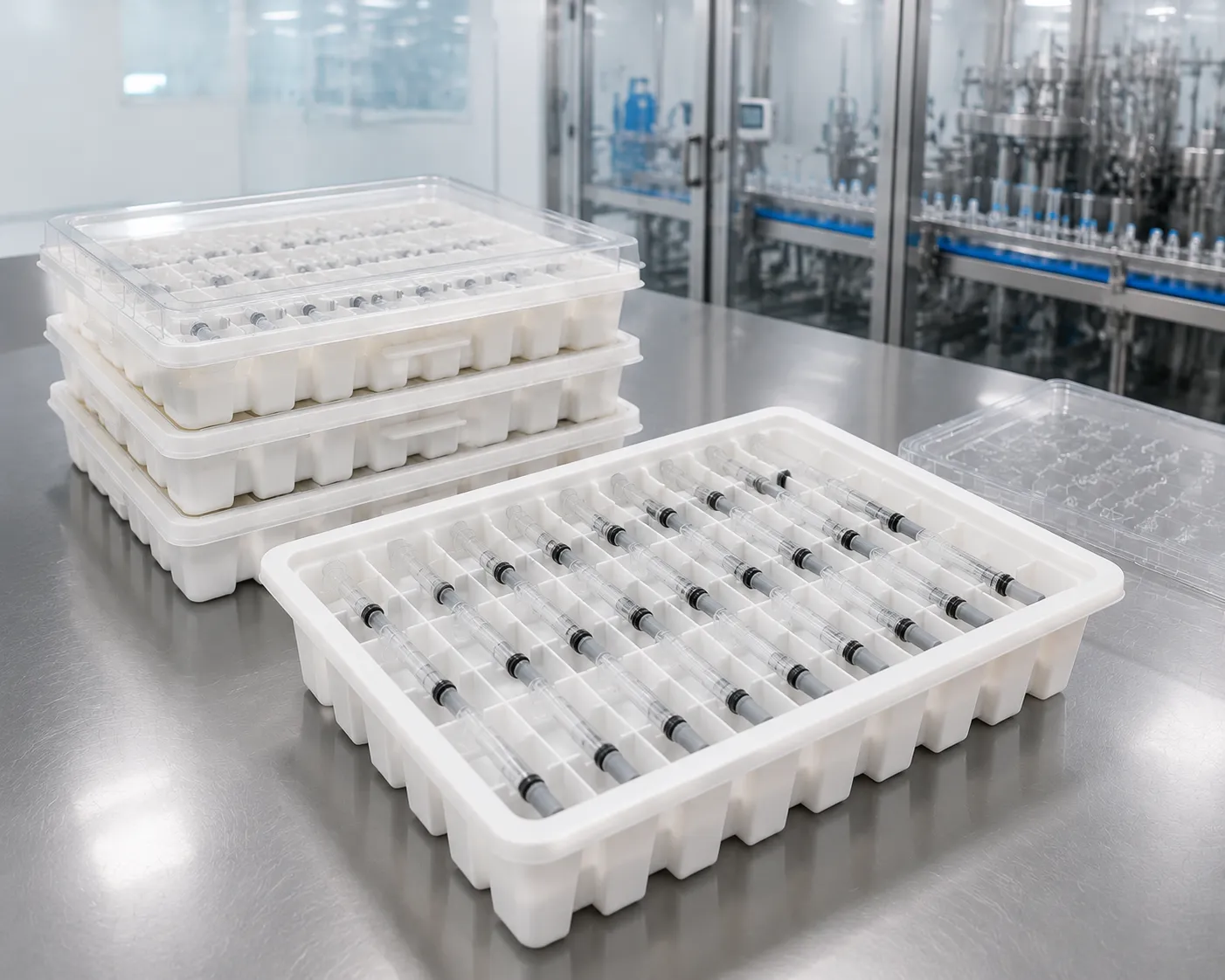

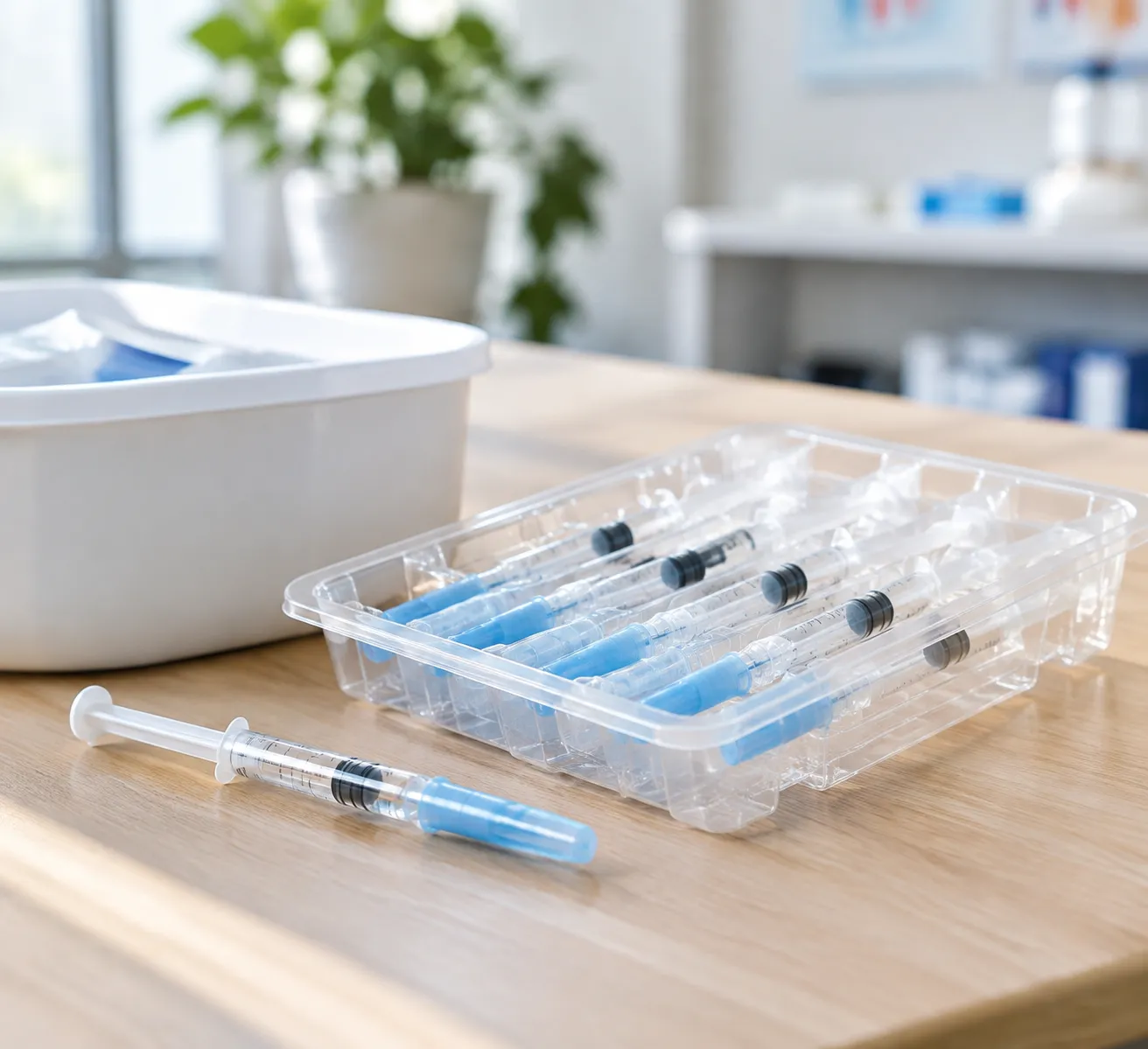

Prefilled Syringe Nest & Tub System
Advanced prefilled syringe tub containment engineered for complete physical protection during high-speed robotic processing.
- Precisely locates finger flanges, rigid needle shields, and protective tip caps.
- Protects both traditional glass barrels and COP/COC polymer syringes.
- Optimized nest alignment facilitates flawless high-speed automated denesting.

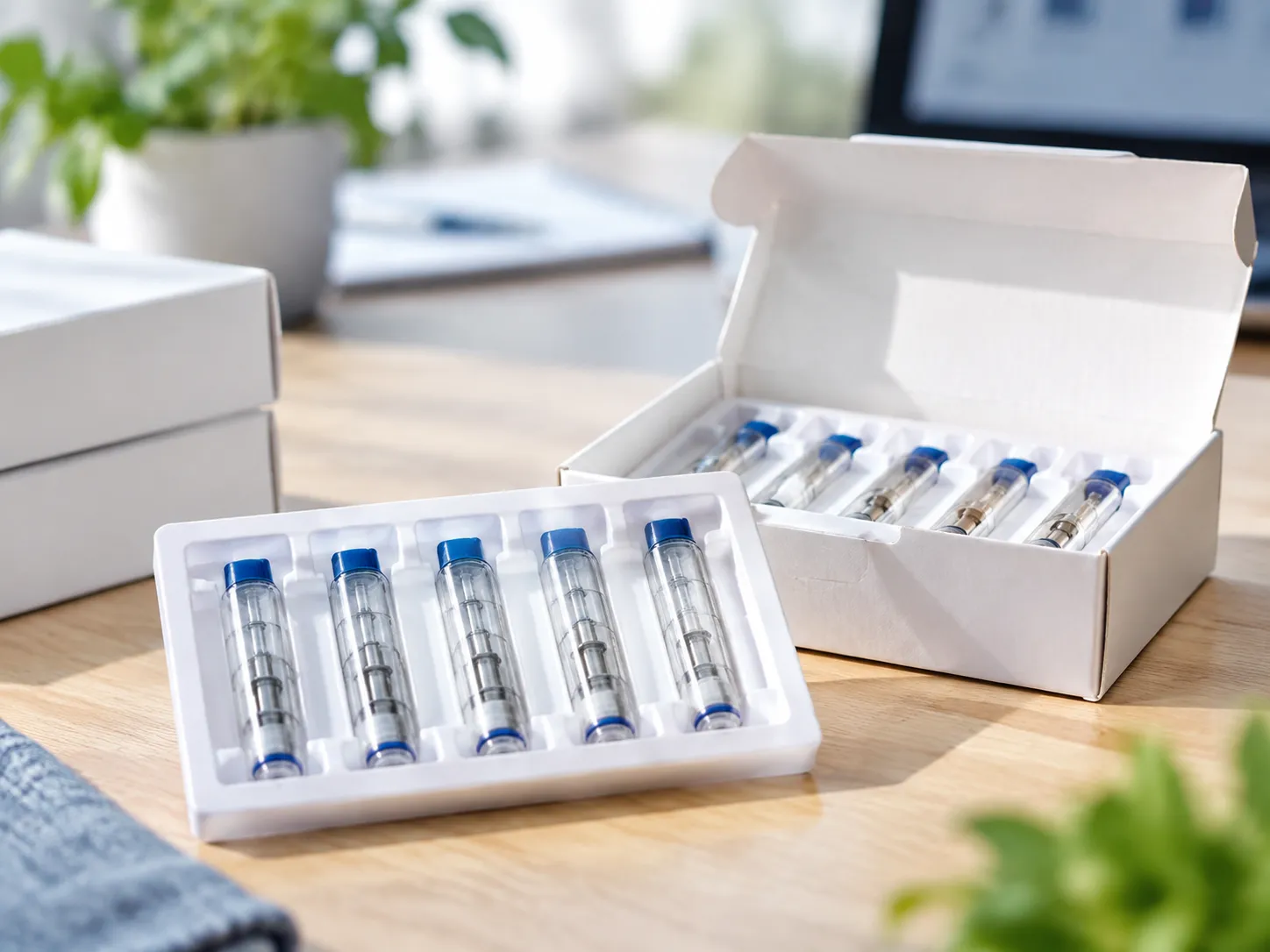

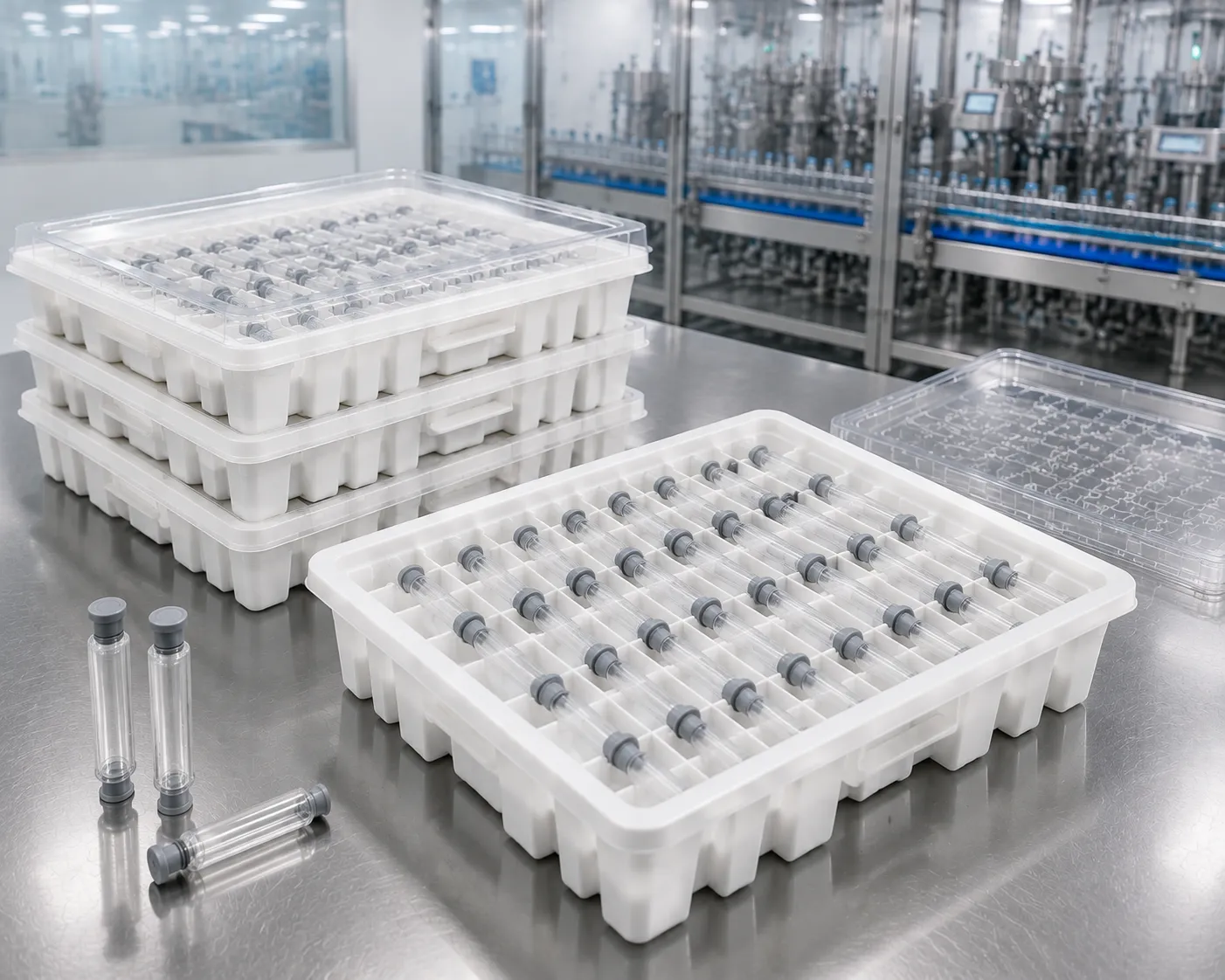

Cartridge Nest & Tub System
High-precision cartridge RTU packaging developed for high-density storage and precise automated filling workflows.
- Anti-vibration matrix design prevents container friction and surface scuffing.
- Supports automated bottom-up lifting and high-accuracy stoppering processes.
- Engineered specifically for insulin pens and dental anesthesia cartridge formats.
Tailored Nest Mold Development by Jiahua
Jiahua provides customized Nest mold development services tailored to non-standard drug delivery vehicles, custom primary container dimensions, and specialized automated filling lines with a primary focus on manufacturing excellence.

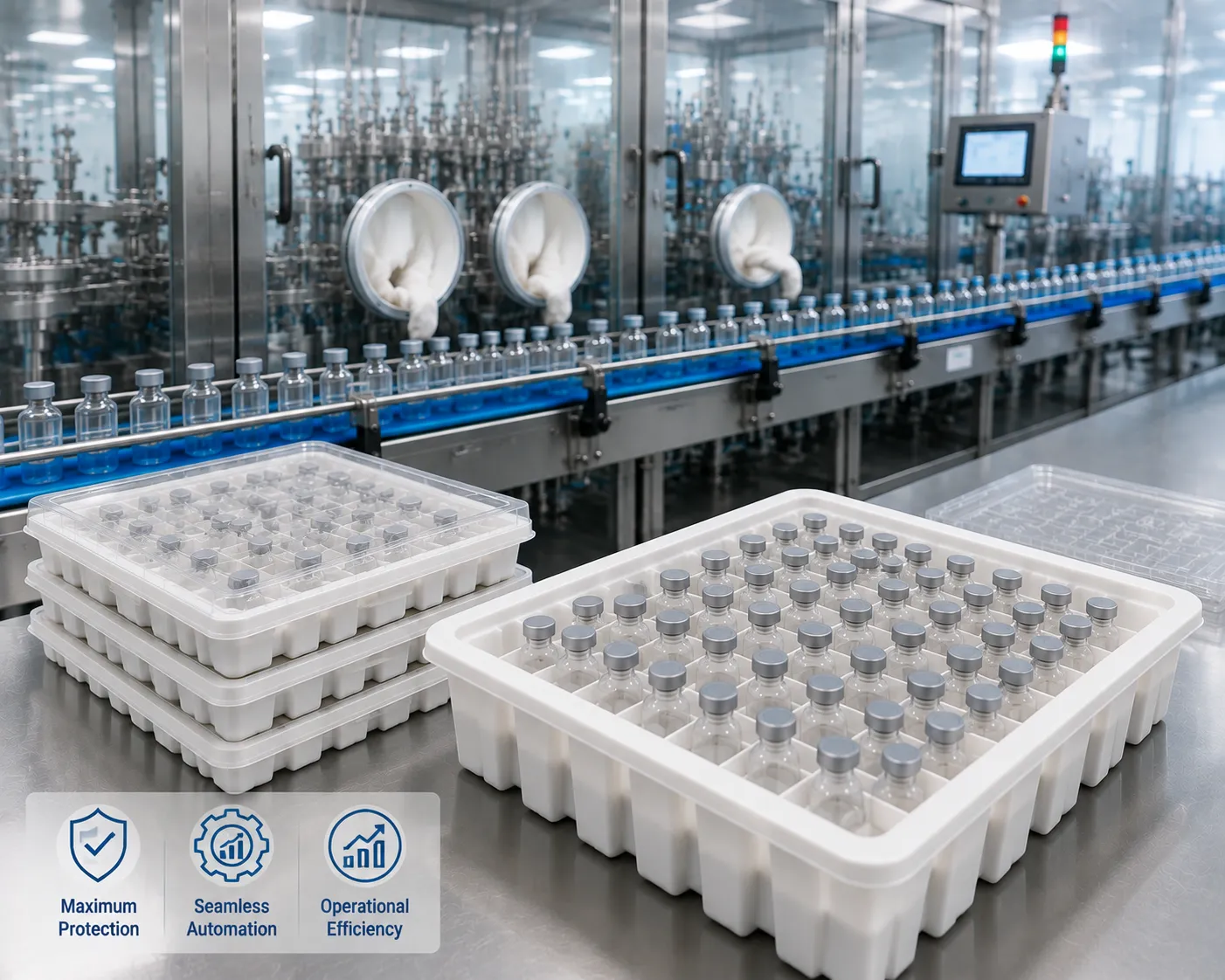

Automated Aseptic Filling Line Integration & Production Benefits
Transitioning to Jiahua Ready-to-Use (RTU) Nest & Tub systems streamlines pharmaceutical fill-and-finish operations while significantly lowering Total Cost of Ownership (TCO). By engineering zero glass-to-glass contact and eliminating bulk container washing and depyrogenation steps, our nested containment systems optimize automated aseptic filling compatibility, minimize scrap rates, and ensure uncompromising sterility for high-value injectable formulations.
Traditional Bulk Processing vs. Jiahua RTU System
Comparing conventional bulk container processing against high-speed automated aseptic filling line integration using RTU nested containment.
| Metric | Traditional Line | Jiahua RTU System |
|---|---|---|
| Capital Expenditure (CAPEX) | High (Washer + Tunnel + WFI) | Low (Direct Infeed Line) |
| Utility & Energy Usage | Continuous Heat & Water | Up to 70% Energy Savings |
| Container Contact | Frequent Friction & Scuffing | Zero Glass-to-Glass |
| Breakage & Scrap Rate | 0.5% – 2.0% Average Losses | Near Zero (< 0.01%) |
| Aseptic Zone Intervention | Frequent Manual Handling | 100% Robotic Isolation |
Evaluate Your Fill-Line TCO & ROI Savings
Calculate how eliminating depyrogenation tunnels and leveraging RTU cost benefits can optimize capital spending, streamline cleanroom footprints, and maximize operational profitability for your drug manufacturing facility.
Eliminates Washing Machines and Depyrogenation Tunnels
Jiahua Ready-to-Use (RTU) sterile containers arrive pre-cleaned, depyrogenated, and sealed inside dual-bagged Tub rtu-packaging. Direct infeed integration bypasses washing equipment and high-temperature oven tunnels entirely to deliver significant RTU cost benefits.
- Drastic CAPEX Reduction: Avoid high initial equipment purchases, installation overhead, and complex re-validation protocols. Learn more on our about-us page.
- Lower Utility & Energy Usage: Eliminate continuous high-heat oven cycles and high-volume Water-for-Injection (WFI) consumption.
- Optimized Cleanroom Footprint: Reclaim valuable ISO-classified cleanroom floor space for expanded fill-and-finish capacity.
Robotic Pick-and-Place Efficiency & Scratch-Free Transport
Our cellular nest trays securely lock each vial, prefilled syringe, or cartridge neck in position. Maintaining strict container isolation prevents cosmetic flaws and structural damage during high-speed automated handling.
- Zero Glass-to-Glass Contact: Prevents surface scuffing, micro-cracks, and cosmetic rejection during high-speed transport.
- High-Speed Robotics Handling: Enables swift multi-head pick-and-place operations without mechanical jam risks.
- Reduce Pharma Packaging Waste: Protect valuable biologics, mRNA vaccines, and sensitive injectables from costly product loss.
Universal Automated Aseptic Filling Line Compatibility
Engineered to strict ISO and ANSI/SLAS dimensional standards, Jiahua Nest & Tub systems deliver exceptional automated aseptic filling compatibility. Rigorous robotic gripper testing guarantees seamless performance across global machinery brands.
- OEM Machinery Alignment: Fully compatible with Syntegon (Bosch), Optima, Bausch+Ströbel, and Groninger equipment.
- ANSI/SLAS Footprint Standards: High dimensional tolerances ensure flawless automated de-nesting, filling, and re-nesting.
- Flexible Combi-Line Production: Rapidly switch between RTU Vials, syringes, and cartridges on a single filling platform.
Minimized Human Intervention & Advanced Aseptic Security
Automated Tub handling and robotic nest transfer minimize direct operator proximity to open container necks in critical processing zones. Integrating nested containment into barrier systems strengthens environmental defense and batch sterility assurance.
- Isolator & RABS Compatibility: Optimized for automated debagging, delidding, and continuous pass-through inside barrier systems.
- Contamination Risk Reduction: Substantially mitigates particulate and microbial risks by eliminating open-bulk transfer.
- EU GMP Annex 1 Compliance: Aligns with stringent regulatory standards for advanced aseptic containment and environmental control.
Medical-Grade Materials, Cleanroom Molding & Packaging Compliance
Jiahua strictly executes ISO 9001 quality management systems to ensure every medical grade plastic nest tub system meets international pharmacopeia standards. Learn more about us and our commitment to safety.
Cleanroom Manufacturing
Precision cleanroom injection molding with continuous environmental particulate and microbial monitoring prevents contamination during manufacturing.
Medical-Grade Materials
Formulated using low-extractable, high-clarity polymers engineered to withstand Gamma Radiation and EtO sterilization protocols.
Automated Inspection
High-speed optical inspection guarantees precise dimensional tolerances, eliminating micro-burrs, flash, and particulate shedding.
Quality Compliance
Ensures full pharmaceutical packaging compliance featuring complete batch-level traceability and Certificates of Analysis.

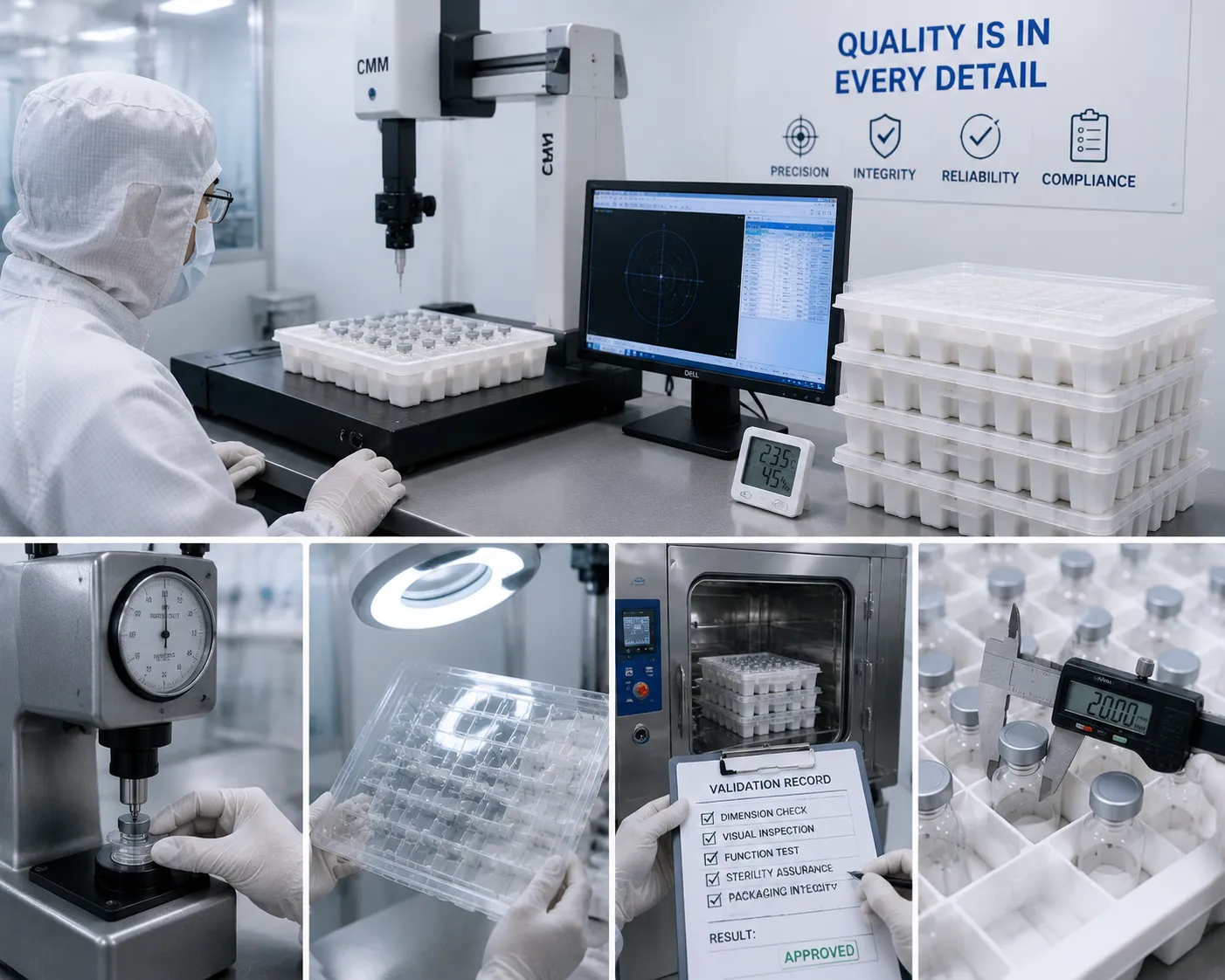

Rigorous Quality Control & Validation Protocols
Jiahua applies multi-tiered verification at every production phase to ensure full compliance with global regulatory mandates and international quality certifications.
Continuous Environmental Auditing
Real-time particle counters and microbial air samplers maintain strict ISO Class 8 cleanroom integrity.
Extractables & Leachables Verification
Medical-grade polymers pass rigorous USP Class VI biological safety and chemical leaching evaluations.
End-to-End Lot Traceability
Comprehensive documentation links raw polymer shipments directly to finished nest tub batches.
Pharmacopeia Validation
Every lot is certified against European (EP 3.1.3) and United States (USP) quality mandates.
Require Validation Documentation for Your QA Team?
Access full material data sheets, cleanroom monitoring logs, and CoA samples instantly.
Custom Nest & Tub Engineering Services & OEM/ODM Process
Accelerate your clinical scaling and automated filling line integration with Jiahua's end-to-end custom pharmaceutical tray ODM and OEM nesting system capabilities. Learn more about us and how we engineer bespoke Nest & Tub rtu-packaging solutions tailored to non-standard vial, syringe, or cartridge geometries, tight dimensional tolerances, and high-speed robotic pick-and-place end-effectors.
Container DFM Analysis
Our engineering team performs rigorous Design for Manufacturability (DFM) evaluations on custom glass and polymer container geometries, including primary RTU Vials, to determine optimal nest clip retention force, pitch spacing, and structural load distribution.
Cellular Nest Isolation
Cellular tray geometry is custom-molded to maintain complete glass-to-glass and polymer isolation during high-speed transit and automated filling, preventing surface scratches and reducing particulate contamination.
Automated Line Compatibility
Custom OEM nesting systems are engineered to precise ANSI/SLAS tub footprints and robotic gripper mechanics, ensuring seamless automated loading, de-nesting, and sterile isolator line integration.

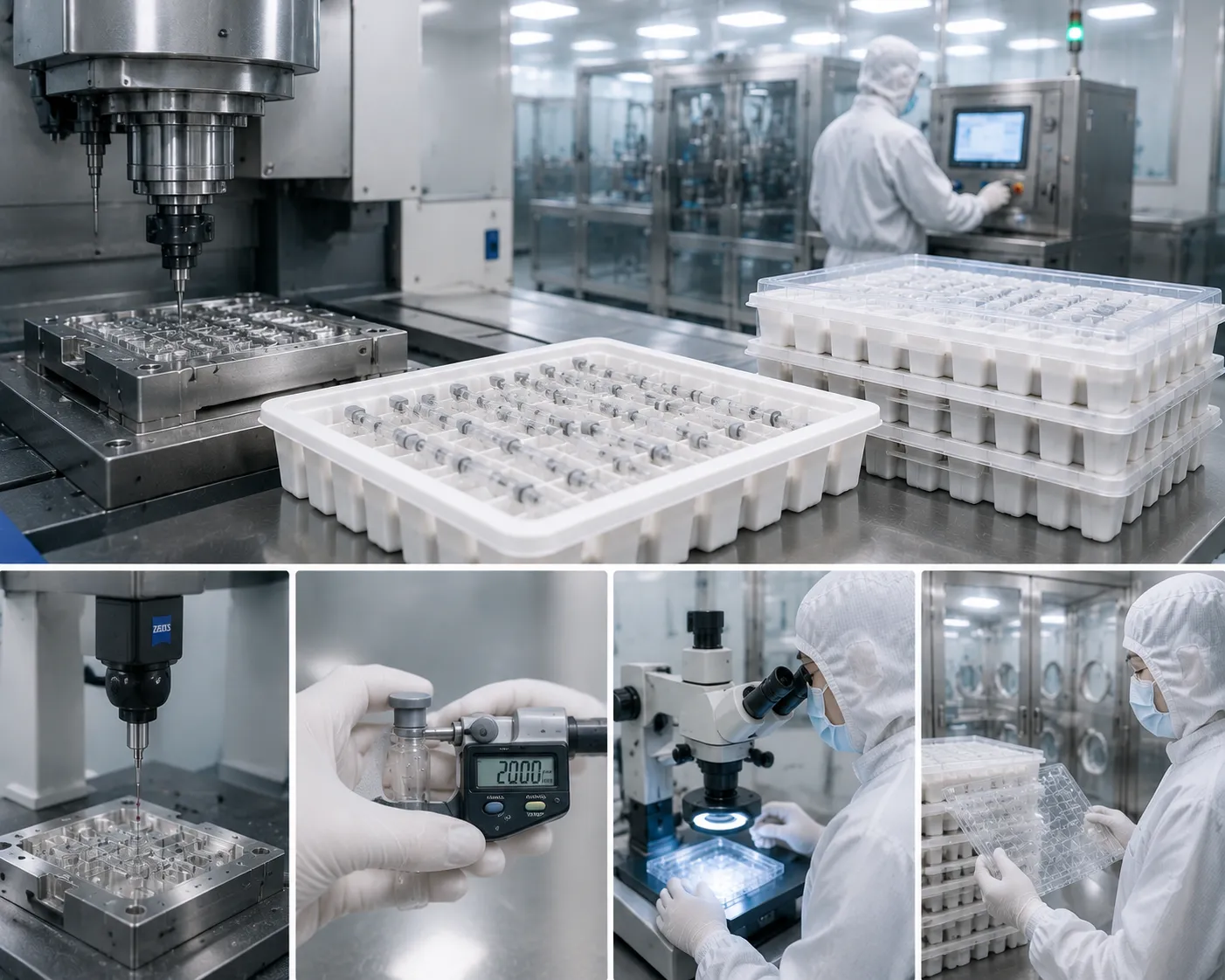

Custom Nest & Tub OEM/ODM Workflow
A four-stage development pathway designed for rapid prototyping, high-precision injection mold development, and scalable cleanroom manufacturing.
Consultation & DFM Analysis
Thorough evaluation of container body tolerances, neck dimensions, and flange geometry alongside interference modeling to establish precise nest clip tension for vibration resistance.
- Container geometry audit
- Robotic interface mapping
3D Structural Design & Prototyping
Rapid 3D modeling and high-resolution 3D printing or soft-tool prototype fabrication to conduct physical fit checks and robotic handling verification with client containers.
- 3D printed functional samples
- Mechanical clip validation
High-Precision Injection Mold Development
Custom multi-cavity injection mold tooling built with hardened steel and micro-tolerance machining to ensure exact repeatability across massive packaging production runs.
- Multi-cavity steel molds
- Micro-tolerance verification
Cleanroom Mass Production & Sterile Packaging
Fully automated ISO Class 8 cleanroom injection molding, integrated 100% vision system inspection, double-bag sterile containment packaging, and full batch traceability.
- Vision system scanning
- EtO/Gamma sterilization ready
Precision Tooling & Cleanroom Quality Assurance
Jiahua operates under rigorous ISO 9001 quality management and cGMP-compliant manufacturing protocols. By controlling every phase of tool engineering, medical-grade polymer selection (PP, PETG, COC), and automated optical inspection, we deliver consistent nest clip retention forces and zero particulate generation for seamless high-speed fill-finish operations.
Frequently Asked Questions About Nest and Tub Systems
Explore detailed technical, regulatory, and procurement insights regarding Jiahua Ready-to-Use (RTU) nested containment solutions for automated aseptic filling operations. Learn more about our company values and commitment to quality on our about-us page.
Which mainstream sterilization methods are Jiahua Nest and Tub systems compatible with?
Our sterile container nesting guide confirms that Jiahua Nest and Tub systems utilize medical-grade polymer resins with exceptional chemical and thermal resistance. They are fully compatible with Ethylene Oxide (EtO), Gamma radiation, and Electron beam (E-beam) sterilization without compromising material clarity, structural rigidity, or elastomeric performance.
Each production lot is subjected to rigorous validation under pharmaceutical packaging standards, ensuring zero dimensional distortion, minimal extractables and leachables, and long-term protective barrier integrity.
- EtO Sterilization
- Gamma Ray Radiation
- E-Beam Compatible
How does the Nest and Tub system ensure containers do not dislodge during transport?
Each positioning aperture on the cellular Nest tray features precision-molded flexible retention clips. These elements apply calibrated holding force to securely lock prefilled syringes, RTU Vials, or cartridges, maintaining zero glass-to-glass contact during international freight or internal facility transport.
Through advanced finite element analysis (FEA) and dynamic vibration testing, the spring clips prevent micro-scratches, cosmetic defects, and glass breakage, while calibrated release angles guarantee smooth, low-friction robotic vertical pickup on high-speed filling lines.
Do you support small batch orders for R&D or clinical trial phases?
Yes. We provide flexible minimum order quantities (MOQs), ranging from off-the-shelf standard ISO sample kits for early lab evaluation to pilot-scale production batches for Phase I–III clinical trials.
By utilizing identical Nest and Tub geometries across both R&D and commercial stages, drug developers eliminate the need for line recalibration or container re-qualification as projects scale up to full commercial manufacturing.
Which automated filling machinery lines are compatible with Jiahua Nest and Tub packaging?

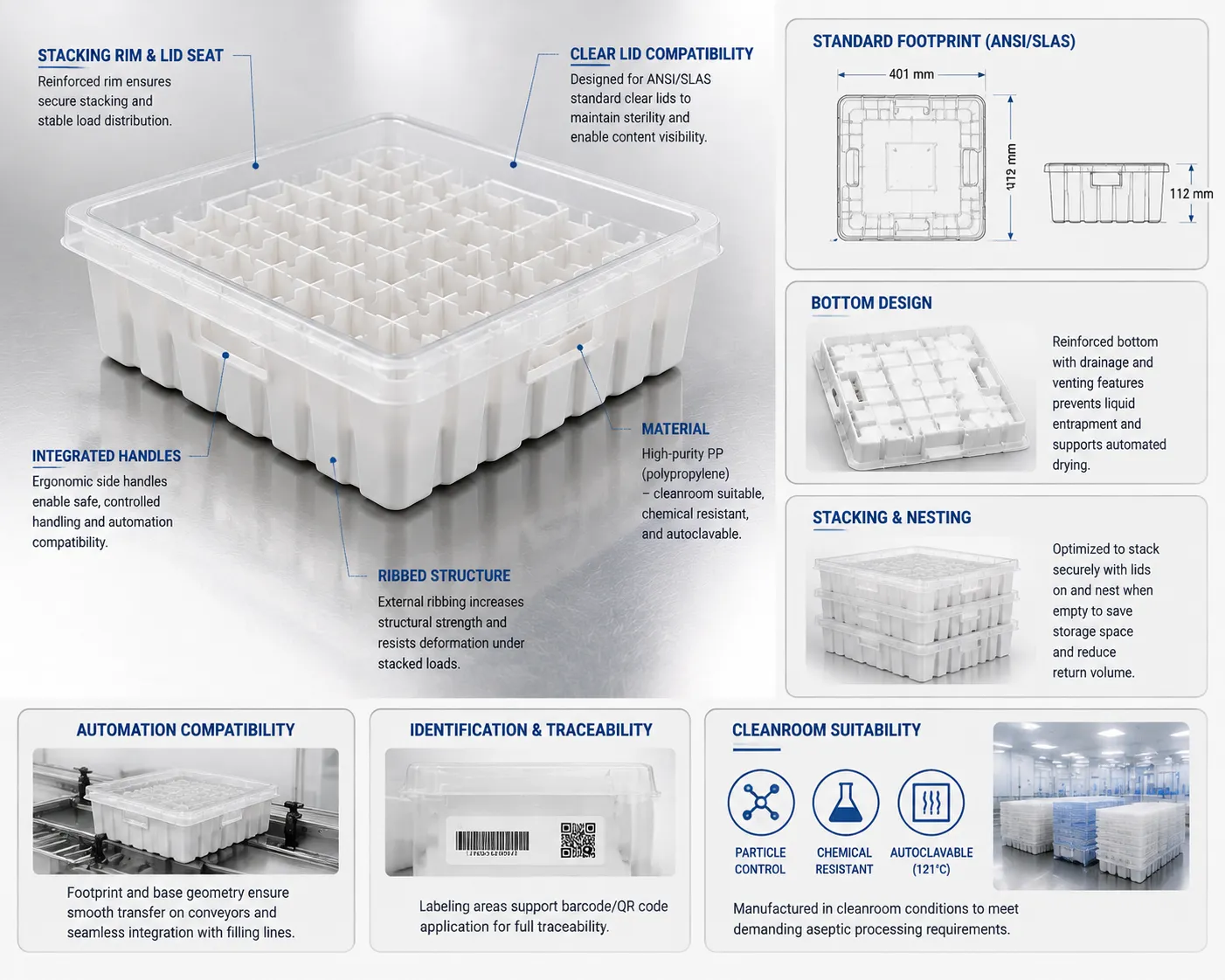

Outer Tub dimensions adhere strictly to ANSI/SLAS footprint standards, while Nest inserts conform to ISO 11040-7 and ISO 21881 specifications. This guarantees seamless integration with standard robotic pick-and-place end-effectors and de-nesting equipment.
Jiahua systems are fully validated for smooth operation on primary OEM filling equipment, including Syntegon (Bosch), Optima, Bausch+Ströbel, and Groninger within both Isolator and RABS aseptic environments.
How do Ready-to-Use Nest and Tub systems lower total cost of ownership for sterile filling lines?
Analyzing the RTU filling packaging cost benefits reveals that pre-sterilized Nest and Tub formats eliminate the need for dedicated container washing units, depyrogenation tunnels, and sterile water infrastructure. This drastically lowers initial capital expenditure (CAPEX) and facility energy consumption.
In addition, automated robotic handling reduces direct human intervention in cleanroom zones, minimizing particulate generation, reducing batch rejection rates, and accelerating time-to-market.
Speak Directly with Our Engineers
Didn't find your technical question? Jiahua's technical support team provides complete workflow answers from model selection consulting to online line integration testing.

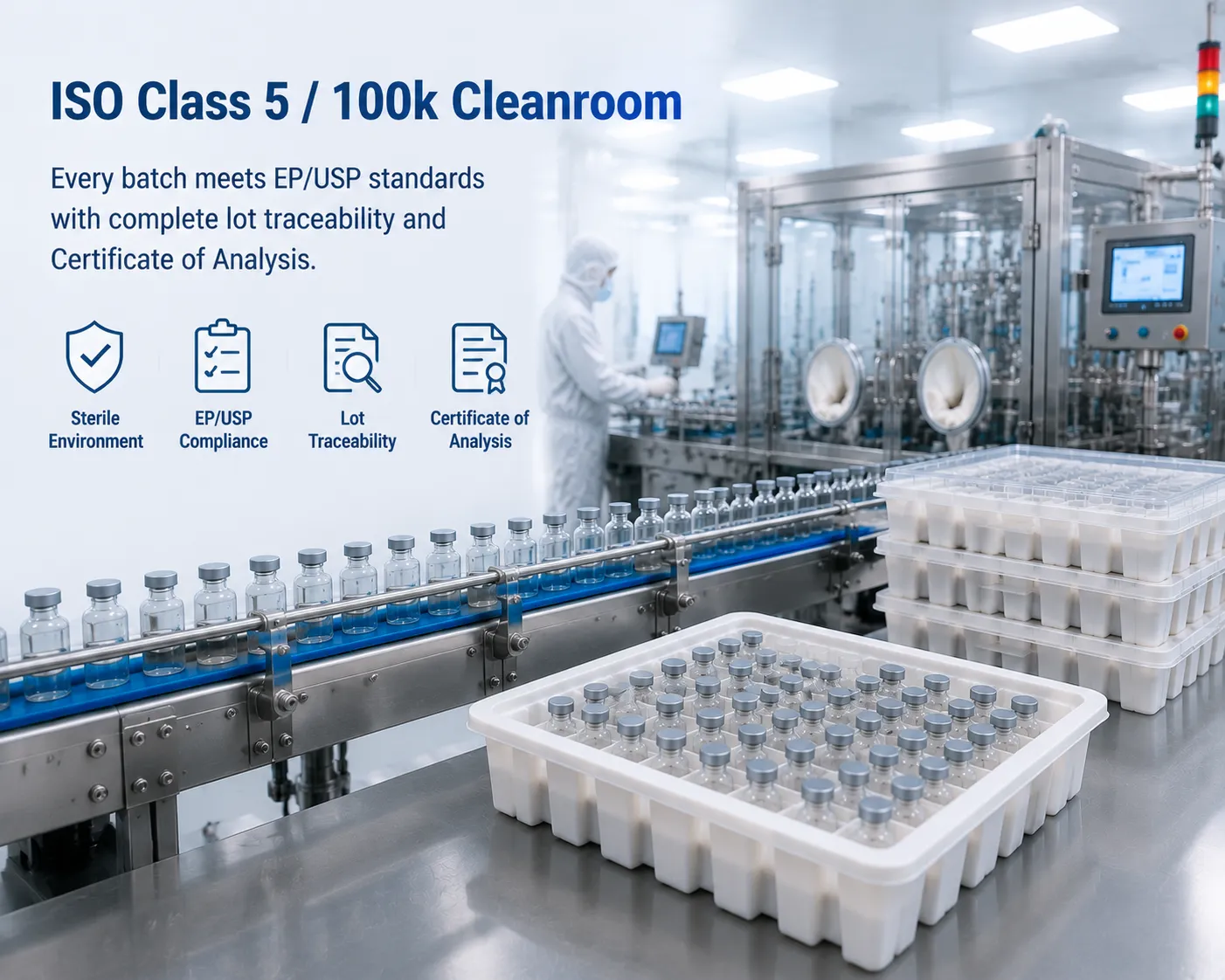

ISO Class 5 / 100k Cleanroom
Every batch meets EP/USP standards with complete lot traceability and Certificate of Analysis.
Ready to Optimize Your Aseptic Filling Efficiency?
Connect with Jiahua engineering specialists to request a Nest & Tub system evaluation kit and a tailored quotation. Jiahua Packaging Solutions provides scalable, compliant sterile containment engineered to streamline automated filling and lower overall operational costs. Explore our advanced rtu packaging options, including sterile RTU Vials designed for maximum integrity.
