Custom Ampoule Trays for Medical & Pharmaceutical Packaging
Jiahua custom-engineers medical-grade thermoformed ampoule trays featuring high-precision slot protection. Built under ISO 13485 cleanroom standards at our manufacturing facility to guarantee zero contamination and zero breakage during transit.
99.9%
Snap-Fit Retention Rate
Class 100K
Dust-Free Production
ISO & CE
Fully Certified Quality
Express
Global Sample Delivery
Jiahua Packaging Advantages
Engineered to meet strict pharmaceutical compliance
- Precision cavity contouring prevents glass-to-glass ampoule collision.
- Medical PETG, PVC, and PS materials with full lot traceability.
- Seamless integration with automated high-speed packaging lines.
- Rapid 3-day prototyping with fast global sample dispatch.
Trusted by leading global pharmaceutical manufacturers.
ISO 13485 Certified Medical Plastic Tray Manufacturer
Jiahua manufactures high-precision thermoformed ampoule trays in ISO-certified cleanroom environments, delivering zero-defect quality, full compliance, and dependable high-volume supply for Medical Device Packaging applications.
Class 100,000 Cleanroom Facility
Controlled environment thermoforming prevents particulate contamination during critical molding and packaging stages in our advanced manufacturing operations.
ISO 13485 & FDA Registered
Audited medical quality systems guarantee cGMP compliance, material traceability, and hassle-free global regulatory clearance backed by official quality certifications.
0.02mm Tooling Precision Control
Sub-millimeter CNC mold engineering provides exact cavity dimensions, preventing ampoule movement and transit damage.
1,000,000+ Units Daily Capacity
High-speed automated production lines ensure reliable, large-scale supply for commercial pharmaceutical packaging.
Validated Cleanroom Quality
Trusted globally, Jiahua builds all ampoule trays under strict ISO-certified cleanroom environments to safeguard sensitive pharmaceutical products.
Class 100k
Cleanroom Facility
ISO 13485
FDA Registered Quality
0.02mm
Tooling Precision
1,000,000+
Daily Unit Volume
High-Performance Materials & Technical Specifications
Jiahua manufactures medical-grade thermoformed ampoule trays engineered for pharmaceutical safety, zero-defect transport protection, and packaging line efficiency. Selecting the optimal thermoformed polymer and structural wall thickness is essential to protect delicate glass ampoules, prevent transportation friction, and guarantee seamless performance across automated filling lines. Learn more about-us and our dedication to precision engineering.
Pharmaceutical Plastic Polymers
We source 100% virgin, certified medical-grade polymers to satisfy stringent USP, FDA, and ISO regulatory requirements. Each material is selected to match specific application demands, ranging from extreme cold-chain storage resistance to high optical clarity and cost-effective commercial distribution.
Medical-Grade PETG
High ClarityPETG (Polyethylene Terephthalate Glycol) provides exceptional optical transparency and superior impact strength under mechanical stress. Its ability to retain structural integrity at sub-zero temperatures makes PETG ideal for cold-chain pharmaceutical packaging.
- ✓ Sterilization Compatibility: Fully certified for Ethylene Oxide (ETO) and Gamma radiation processes without material degradation or yellowing.
- ✓ Primary Applications: High-value vaccines, injectable biopharmaceuticals, critical therapeutics, and sterile diagnostic trays.
Pharmaceutical PVC/PE Laminates
Cost-EffectivePVC/PE composite laminates deliver an optimal balance of cost efficiency, mechanical flexibility, and robust moisture barrier protection. The integrated polyethylene layer enhances seal strength and chemical stability.
- ✓ Barrier Performance: High defense against moisture vapor ingress, ambient humidity, and fluid degradation.
- ✓ Primary Applications: Standard pharmaceutical ampoule packaging, liquid formulations, oral suspensions, and bulk commercial production runs.
High-Impact Polystyrene (PS/HIPS)
High RigidityPS and HIPS polymers provide outstanding dimensional rigidity and structural stability. The stiff thermoformed geometry prevents tray deformation during automated robotic picking, cartoning, and shipping.
- ✓ Surface Customization: Supports anti-static surface treatments, conductive coatings, and custom anti-scratch flocking finishes.
- ✓ Primary Applications: Cosmeceutical serum ampoules, IVD diagnostic reagent kits, and protective outer secondary trays.

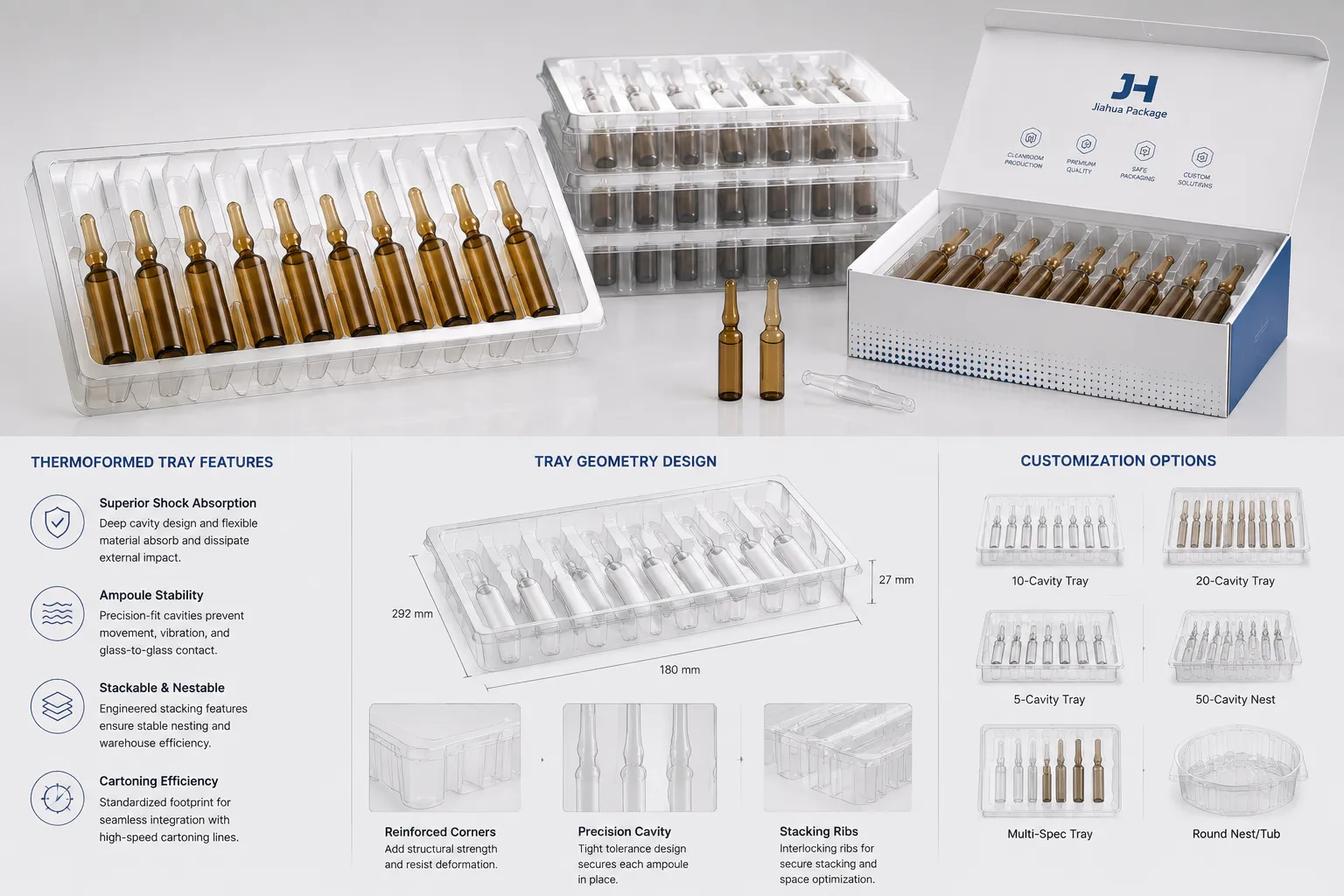

Technical Specifications Matrix
Jiahua utilizes precision CNC aluminum molds to strictly control dimensional tolerances, ensuring predictable snap-fit retention and Zero-Defect shipping performance.
| Parameter | Engineering Standard |
|---|---|
| Volume Range | 1 ml – 20 ml (Standard & Custom Sizes) |
| Cavity Layout | 2 to 30 Cavities (Custom Pocket Configurations) |
| Wall Thickness | 0.3 mm – 1.2 mm Precision Controlled |
| Tooling Precision | ±0.02 mm CNC Mold Engineering |
| Sterilization | Gamma, Ethylene Oxide (ETO), & E-Beam Compatible |
| Cleanroom Standard | Class 100,000 (ISO Class 8 Operational) |
| Quality System | ISO 13485 Certified & FDA Registered Facility |
Cleanroom Precision Guarantee
Every custom thermoformed ampoule tray is produced inside our ISO-certified cleanroom and undergoes 100% automated optical inspection to eliminate micro-burrs, particulate contamination, and dimensional variances before delivery.
Custom engineered thermoformed tray geometry for maximum shock absorption and cartoning efficiency.
Engineered for Versatile Liquid & Powder Packaging
Jiahua specializes in custom thermoformed ampoule trays engineered to meet the stringent security, cleanliness, and aesthetic demands of modern medical, pharmaceutical, and cosmeceutical applications. Whether securing fragile glass liquid ampoules against high-vibration logistics or arranging complex multi-component powder packaging kits, our custom ampoule trays are crafted with 0.02mm tooling precision to eliminate transit friction and product loss.

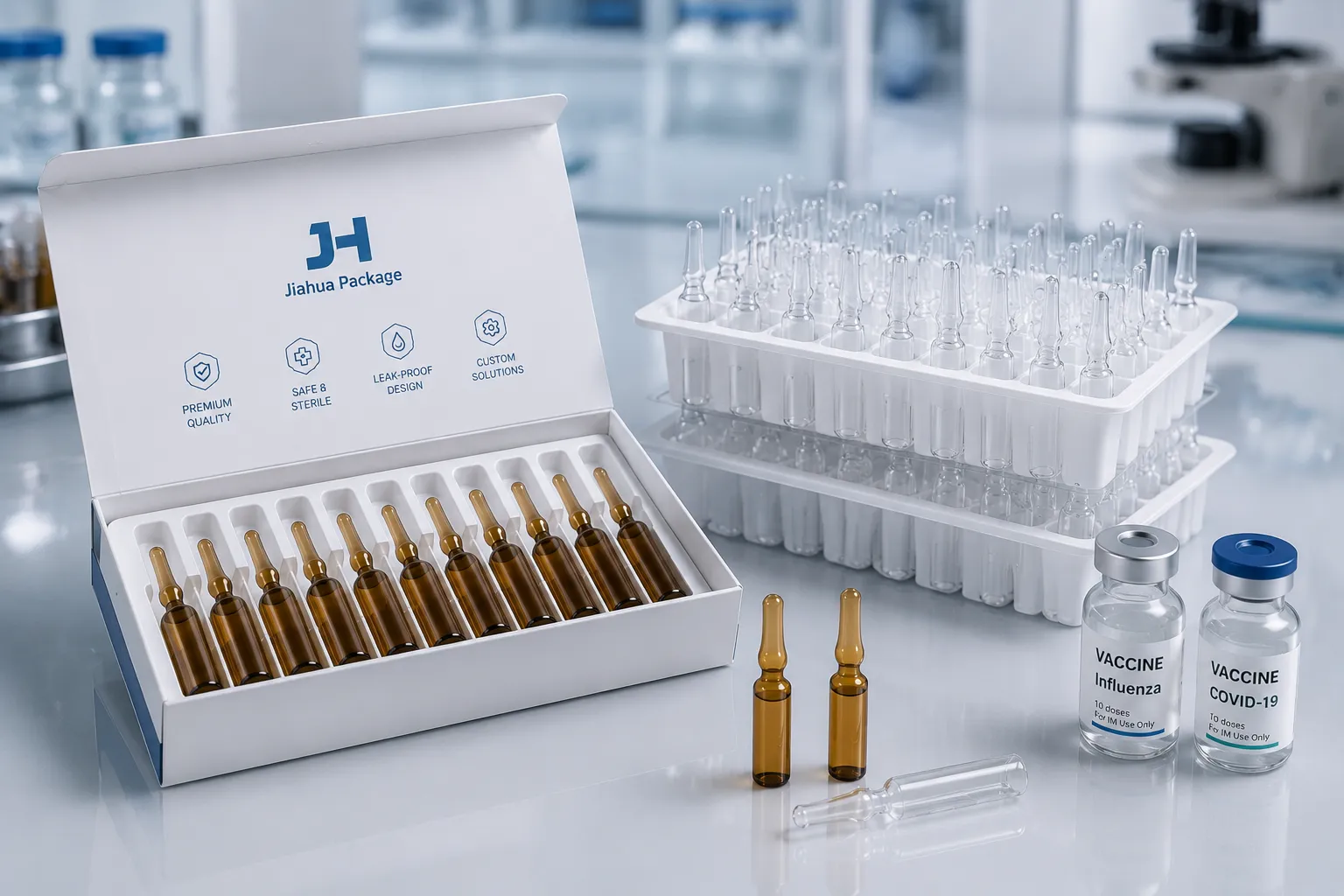

Vaccine & Injectable Ampoules
Engineered with reinforced anti-loosening geometry and high-impact micro-grips, these trays ensure delicate vaccine ampoules and parenteral injectables remain perfectly locked in position throughout demanding cold-chain supply operations.
- 99.9% Snap-Fit Retention: Deep-contoured locking channels prevent ampoule displacement during drop tests and air freight.
- Ultra-Low Temperature Resilience: PETG materials maintain structural ductility down to -80°C deep freeze conditions.
- Sterilization Ready: Fully compatible with ETO gas and Gamma radiation sterilization protocols.

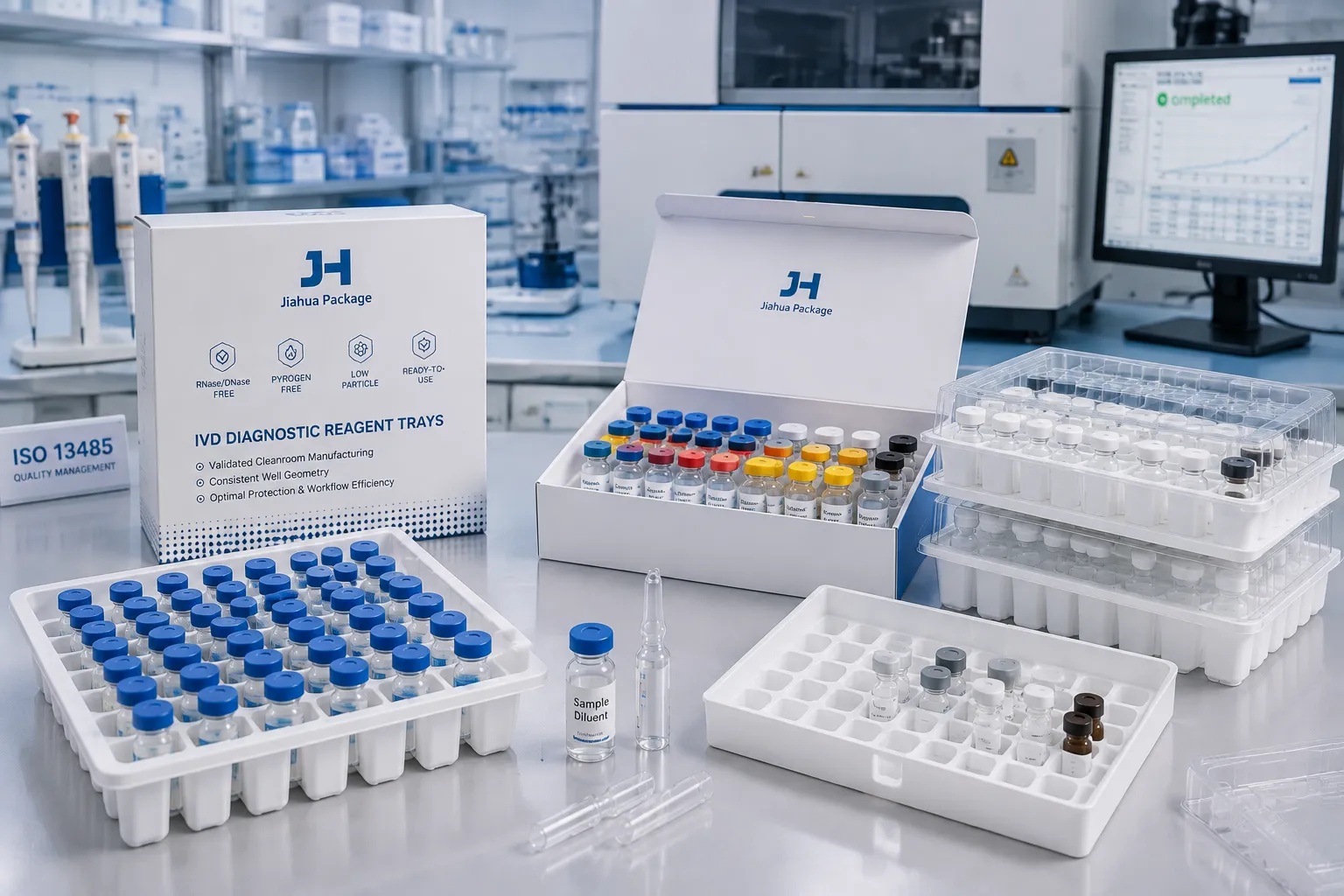

IVD Diagnostic Reagent Trays
Designed for in vitro diagnostic (IVD) test kits requiring combination packaging. Custom multi-spec cavity layouts securely hold liquid reagent ampoules, lyophilized powder vials, diluent bottles, and droppers in a single organized unit.
- Mixed Cavity Formats: Accommodates 1ml to 20ml containers with custom offset depths in one thermoformed tray.
- Automated Line Pick & Place: Precise rim tolerances (0.02mm) allow seamless robotic arm insertion and vacuum pickup.
- Color Coding & Label Recesses: Dedicated pockets prevent reagent cross-contamination and assist lab personnel.

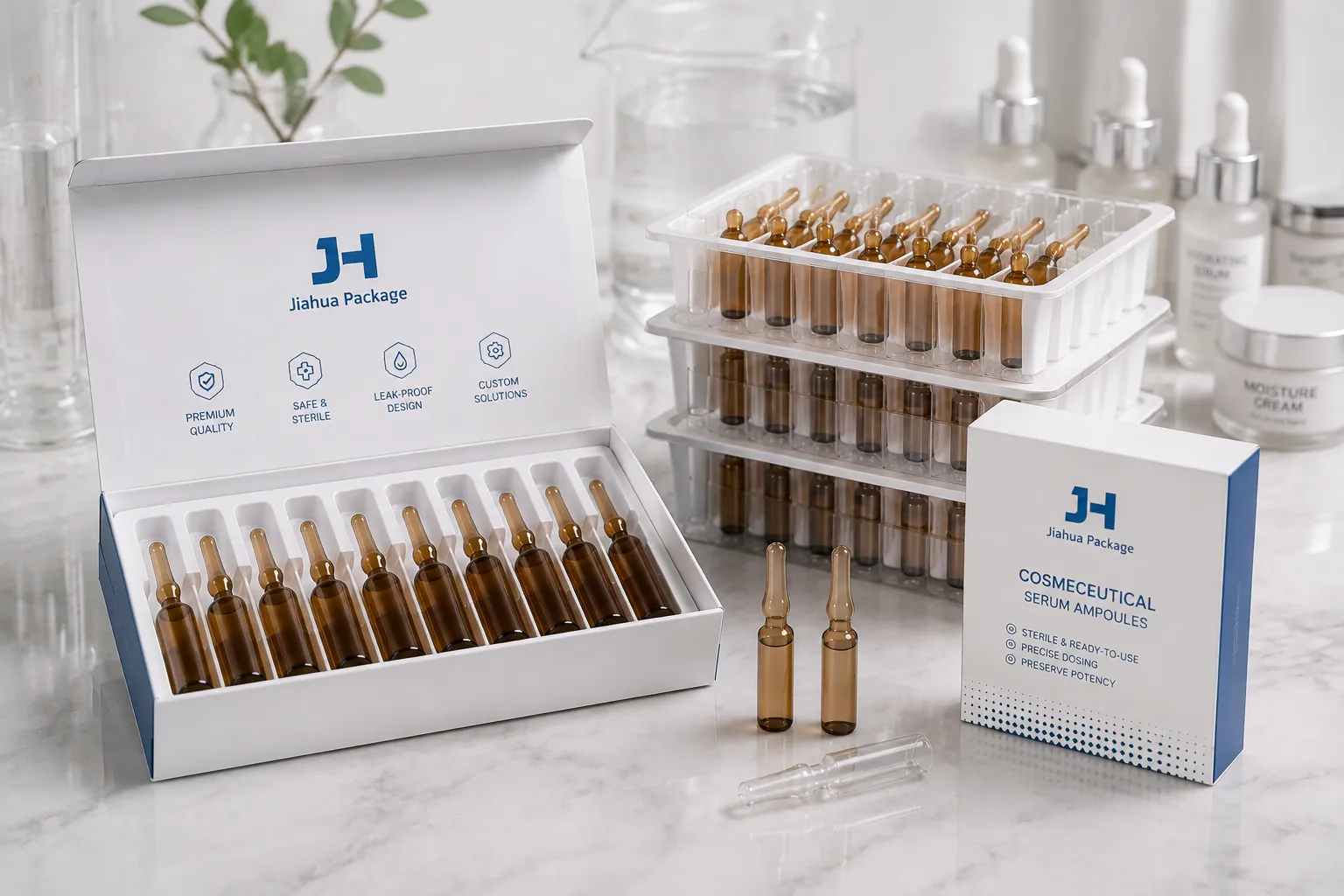

Cosmeceutical Serum Ampoules
Elevate luxury active serums, skin repair oils, and cosmetic essence ampoules with high-precision cavities and custom velvet-flocked surface finishes, delivering a tactile, high-end unboxing experience for beauty brands.
- Custom Flocked Finishes: Soft velvet coating buffers fragile glass while creating a premium presentation aesthetic.
- High-Clarity Optical PETG: Crystal-clear transparency highlights colorful liquid formulations and branding.
- Snug Thumb-Ejection Recesses: User-friendly finger notches ensure safe, effortless ampoule retrieval.
Why Jiahua Thermoformed Ampoule Trays Lead the Market in Vibration Protection
Pharmaceutical liquid ampoules and freeze-dried diagnostic powders present unique packaging challenges. Glass friction during transit can lead to hairline micro-fractures, liquid leakage, or sterility breaches. Beyond ampoules, our expertise extends to advanced rtu-packaging solutions. Jiahua solves these industry pain points through proprietary tooling engineering and strict Class 100,000 cleanroom thermoforming processes.
Anti-Loosening Cavity Engineering
Our CAD-designed holding clips grip the neck and body of each glass ampoule simultaneously. This dual-point contact system disperses kinetic energy across the entire tray structure, absorbing drop impacts up to 1.2 meters without container detachment.

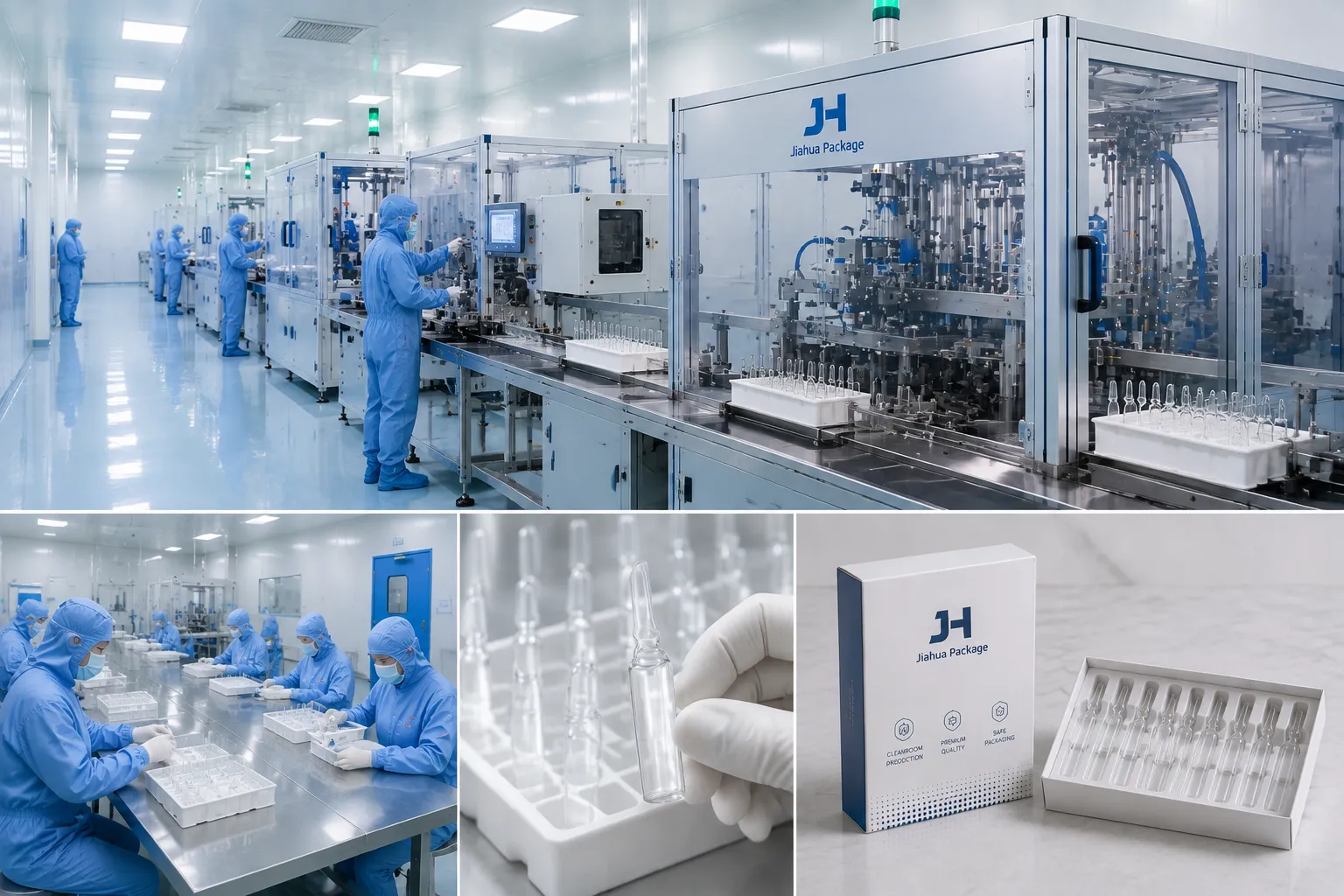

Class 100,000 Cleanroom Manufacturing
All medical plastic trays are produced in ISO-certified dust-free cleanrooms. Automatic optical inspection (AOI) systems perform 100% online verification of cavity dimensions, wall thickness distribution, and surface purity to guarantee zero particulate contamination.
Customized Multi-Spec Compartments
We specialize in custom tooling for composite medical kits. Integrate freeze-dried powder ampoules, diluent glass vials, transfer adapters, and injection needles in one cohesive tray designed specifically for rapid medical setup.
Full Regulatory & Material Compliance
Every thermoformed tray is manufactured from FDA-compliant, medical-grade PETG, PS, or PVC materials. Comprehensive testing documentation includes leachables/extractables certificates, ISO 13485 compliance reports, and heavy metal testing.
Need a Tailored Ampoule Tray Design?
Upload your product dimensions or CAD files to receive an engineering proposal and prototype in 3 days.
Seamless Customization Process from Concept to Mass Production
Jiahua streamlines your packaging development with rapid 3D prototyping and end-to-end mold tooling capabilities. From initial structural CAD modeling to high-speed cleanroom thermoforming, our standardized five-step engineering workflow guarantees precise dimensional tolerances, zero transit breakage, and strict regulatory compliance for custom ampoule trays across medical and pharmaceutical supply chains.
Requirement Analysis & CAD Modeling
Our packaging engineers evaluate ampoule geometry, neck contours, fill volumes, and automated cartoning specifications to create custom 2D structural layouts and 3D CAD models.
- ✓ Cavity Engineering: Precision snap-fit and retention ribs designed to eliminate movement and friction.
- ✓ DFM Review: Design for Manufacturability optimization, ensuring uniform wall thickness and ideal draft angles.
- ✓ Material Selection: Tailored PETG, PS, or PVC/PE polymer formulations suited for Gamma or ETO sterilization.
Rapid Prototyping & Sample Tooling
Verify dimensional fitment and structural integrity early using high-precision 3D-printed samples or aluminum prototype packaging trays produced in as fast as 3 days.
- ✓ Express Sampling: Functional thermoformed prototype trays delivered for physical evaluation in 3 business days.
- ✓ Automated Line Trial: Physical fitment testing on high-speed filling, denesting, and packing equipment.
- ✓ Vibration & Drop Testing: Simulated transit shock tests using live ampoule samples to prove cavity protection.
High-Precision Tooling Development
As a full-service custom plastic trays manufacturer, Jiahua builds multi-cavity production molds using high-speed CNC milling to guarantee consistent tray geometry.
- ✓ 0.02mm Tolerance: Tight CNC machining precision ensures consistent cavity locking and stackability.
- ✓ Aircraft-Grade Tooling: Hardened aluminum mold construction built to withstand millions of thermoforming cycles.
- ✓ Integrated Cooling: Advanced internal cooling channels eliminate material warping and internal stress points.
Cleanroom Thermoforming & Inspection
Production executes inside our Class 100,000 ISO 13485 cleanroom facility, governed by fully automated thermoforming lines and inline vision inspection technology. Learn more about our manufacturing standard operating procedures.
- ✓ Controlled Environment: HEPA-filtered cleanroom bays prevent particulate contamination and static build-up.
- ✓ 100% Optical Inspection: High-speed camera systems scan every tray for surface defects, burrs, or dimensional flaws.
- ✓ Sterilization Compatible: Materials and processes engineered for seamless post-packaging Gamma and ETO cycles.
Dust-Free Packaging & Compliant Global Logistics
Finished thermoformed ampoule trays undergo double PE bag sealing directly inside the cleanroom before loading into heavy-duty export cartons to maintain total sterile chain integrity during international transit.
Double-sealed static-dissipative bags protect trays from airborne particulates during storage.
Complete quality records linking every shipment directly to raw material lots and inspection logs.
Optimized nesting design maximizes container space to reduce ocean and air freight costs.
Reliable door-to-door shipping solutions tailored for clinical trials or high-volume launches.
Accelerate Your Product Launch with Precision Custom Ampoule Trays
Whether scaling clinical trial batches or supporting global pharmaceutical distribution, Jiahua delivers flexible MOQ solutions and complete custom packaging tooling services. Read more about-us to see how our engineering capabilities support your custom projects. Share your ampoule dimensions or CAD files with our packaging engineering team to receive a tailored structural proposal within 24 hours.
Frequently Asked Questions About Ampoule Trays
Find detailed technical specifications, sterilization compliance standards, custom tooling timelines, and automated packaging integration guidance directly from the Jiahua engineering team. Learn more on our about-us page.
What is the difference between ampoule trays and ampoule boxes, and how are they used together?
Ampoule trays serve as primary or secondary inner protective inserts engineered from thermoformed medical-grade plastics such as PETG, PS, or PVC/PE. They feature precision-molded cavities with retention nubs that lock individual glass or plastic ampoules securely in place. This prevents glass-to-glass contact, eliminates impact friction, and protects fragile necks during transit.
Ampoule boxes, on the other hand, are outer paperboard folding cartons or rigid boxes designed to enclose the thermoformed trays. They provide a secondary physical barrier, protect against light exposure, and serve as the main surface area for branding, batch numbering, and regulatory labeling.
When integrated into a complete packaging system, the inner Jiahua thermoformed ampoule tray delivers structural shock absorption and pocket stability, while the outer box secures the complete unit for commercial, hospital, or pharmacy distribution.
What are the minimum order quantities (MOQ) and lead times for custom ampoule trays?
Jiahua operates agile cleanroom manufacturing lines designed to support early-stage clinical trial batches as well as high-volume commercial production runs:
- Clinical Trials & Pilot Batches: Flexible MOQs starting from 1,000 to 5,000 units using rapid aluminum sample tooling.
- Commercial Scale Production: Standard production MOQs range from 20,000 to 50,000 units based on tray size, pocket count, and resin choice.
- Prototyping & Mold Development: 2D/3D CAD drawings and 3D-printed physical samples are completed within 3 business days. Multi-cavity CNC aluminum production molds require 7 to 10 days.
- Mass Production Lead Time: Full-scale thermoforming production in Class 100,000 cleanrooms is typically dispatched in 10 to 15 business days following final sample sign-off.
Are Jiahua ampoule trays compliant with ETO and Gamma radiation sterilization?
Yes. All Jiahua medical plastic trays are engineered using virgin, medical-grade thermoplastic resins specifically selected to match your required sterilization protocol:
- Ethylene Oxide (ETO) Sterilization: Fully compatible with PETG, PS, and PVC films. PETG allows efficient gas penetration and aeration without structural deformation or toxic chemical retention.
- Gamma & E-Beam Radiation: We recommend medical-grade PETG or radiation-stabilized polypropylene (PP) formulations that prevent embrittlement, yellowing, or loss of mechanical pocket retention after irradiation.
- Regulatory Compliance: Our raw materials meet ISO 11607 sterile packaging guidelines, FDA 21 CFR standards, and USP Class VI requirements. Complete material trace certificates accompany every production batch.
How do you guarantee ampoule tray compatibility on automated filling and packaging lines?
Automated high-speed cartoning and liquid filling machinery demand tight tolerances and consistent tray feeder separation. Jiahua ensures seamless automated integration through precise mechanical design:
- 0.02mm CNC Tooling Tolerance: Precision aluminum molds prevent dimensional variance, ensuring exact pocket positioning across millions of units.
- Anti-Nesting / Denesting Ribs: Specially engineered shoulder lugs prevent stacked empty trays from locking, allowing reliable pick-and-place vacuum separation.
- Flange Rigidity & Flatness Control: Uniform wall thickness distribution maintains edge stiffness required for robotic suction cup transfer mechanisms.
- Pre-Production Line Testing: We provide physical sample prototypes prior to tooling approval so you can test denesting and auto-loading on your production equipment.
Which thermoforming plastic materials (PETG, PS, PVC) are best for ampoule packaging?
The optimal resin selection depends on your required optical clarity, mechanical impact protection, sterilization method, and cost targets:
- PETG (Polyethylene Terephthalate Glycol): Premium glass-like clarity, high impact strength, zero stress whitening, and full compatibility with ETO and Gamma sterilization. Recommended for biological injectables, diagnostic reagents, and high-value vaccines.
- PS (Polystyrene / HIPS): Excellent dimensional stability, high stiffness, and lower cost. Available in clear or opaque white/black formulations, making it ideal for standard medical inserts or luxury flock-coated cosmeceutical displays.
- PVC / PE Laminates: Extremely cost-efficient thermoforming material suitable for standard pharmaceutical secondary packaging where functional barrier integrity is prioritized over optical clarity.
Can Jiahua engineer custom multi-cavity trays for mixed diagnostic kits and various ampoule sizes?
Yes. Our CAD packaging design team routinely develops custom multi-cavity tray layouts that integrate different ampoule volumes (from 1ml to 20ml) alongside diagnostic reagent vials, pre-filled syringes, diluents, and transfer accessories within a single thermoformed insert.
We incorporate tailored retention snaps for securely holding varied components, ergonomically placed finger release notches for easy removal in clinical environments, and dedicated channels for package inserts or user instructions.
Have Technical Questions?
Our specialized packaging engineers are ready to review your ampoule dimensions, CAD files, and sterilization requirements to deliver a custom design proposal within 24 hours.
Quality Guarantee
Jiahua enforces a strict 99.9% snap-fit retention standard across all thermoformed ampoule trays to protect sensitive biological liquids, vaccines, and diagnostic reagents during global freight.
Ready to Develop Your Custom Ampoule Tray Solution?
Share your ampoule dimensions, packaging requirements or CAD drawings with Jiahua engineers. We provide customized tray designs, material recommendations, prototype support and quotation for pharmaceutical and medical packaging applications.
