Overview
Precision Molded PDM Vial Box Solutions
Dual Packaging Pathways
To serve both technical and luxury industries, we manufacture two specialized pdm vial box configurations:
- Medical-Grade Plastic Vial Box: Heavy-duty, cleanroom vial case designs produced from USP Class VI materials for lab storage, pharmaceutical staging, and deep-freeze archiving.
- Luxury Discovery Set Box: Custom rigid paperboard enclosures integrated with high-density, die-cut EVA foam inserts built specifically for high-end perfume sample atomizers.
| Feature | Pharma & Lab Storage Box | Luxury Fragrance Holder |
|---|---|---|
| Material Build | USP Class VI PP, COP, COC, or PETG | Rigid Cardboard + Precision EVA Foam Insert |
| Primary Focus | Cleanroom staging, deep freeze, lab storage | Fragrance discovery sets, decant presentation |
| Vial Protection | Molded multi-cavity grid matrix | Custom die-cut foam isolation cavities |
| Handling Profile | Automated machinery pick-and-place | Premium tactile unboxing presentation |
Stackable Architecture & Cold-Chain Stability
Every pdm vial box incorporates precision interlocking lids and bases. This geometric alignment ensures secure vertical stackability in storage facilities while maintaining complete structural stability during cold-chain transport and deep-freeze operations.

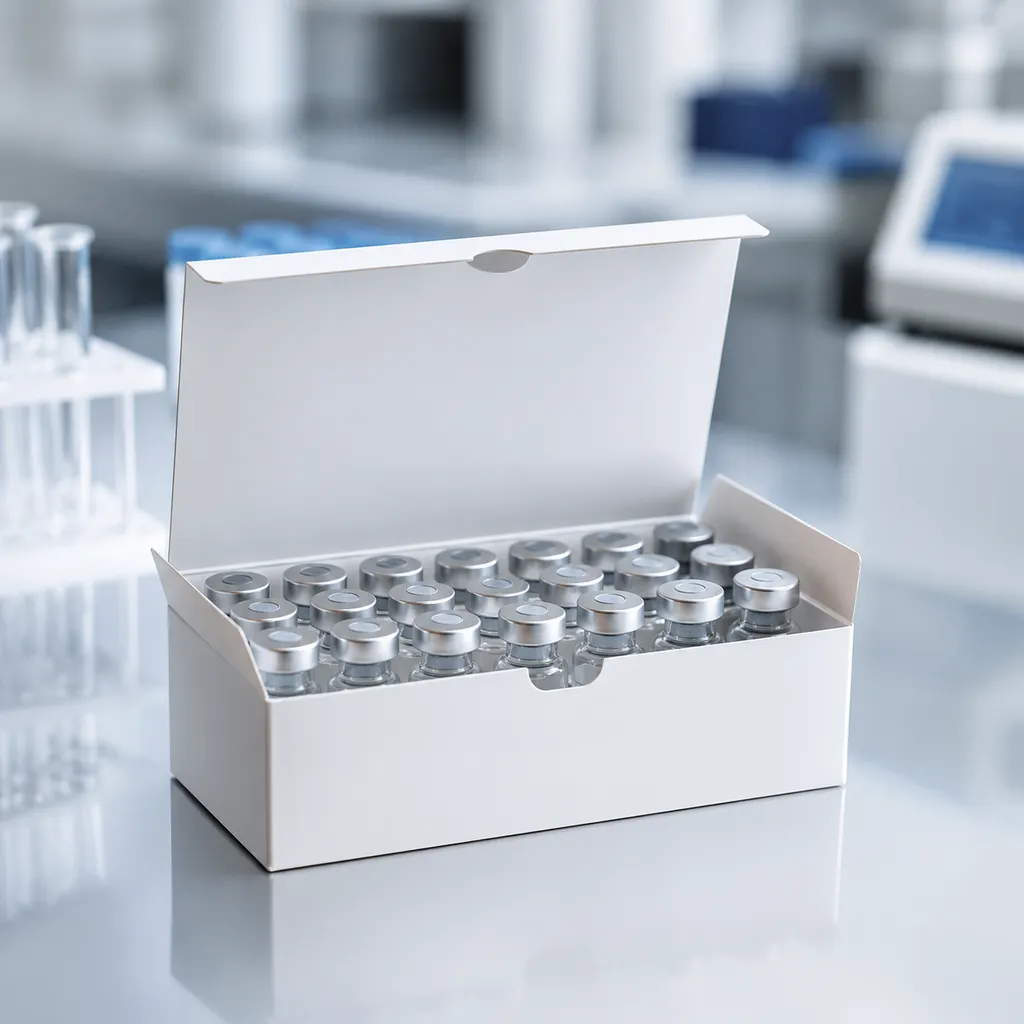

Technical Specifications for PDM Vial Box
We design each pdm vial box to strict tolerances for critical cold-chain storage and automated laboratory workflows. Our solutions accommodate standard dimensions across our comprehensive vial sizes guide, ensuring an exact fit for both glass and plastic containers.
| Feature | Specification |
|---|---|
| Compatible Vial Sizes | 1.5ml, 2ml, 3ml, 5ml, 10ml (Glass & Plastic) |
| Grid Cavity Options | 25, 50, 81, 100-Cavity layouts or custom EVA foam inserts |
| Material Options | USP Class VI PP, COP, COC, PETG, Rigid Cardboard + EVA Insert |
| Dimensional Tolerance | Precise to ±0.02 mm |
| Thermal Operating Limits | -80°C (Deep Freeze) to +121°C (Autoclavable) |
Cleanroom Quality & Compliance
- Controlled Manufacturing: Produced in certified ISO Class 7 (Class 10,000) and Class 8 cleanrooms to meet strict medical packaging standards.
- Certified Quality: Certified under ISO 9001 and ISO 13485 with full USP Class VI and RoHS compliance.
- Versatile Customization: Integrate secure layouts with our custom vial packaging options to protect fragile contents across medical and fragrance applications.
PDM Vial Box Features and Isolation Mechanics
| Key Mechanism | Structural Specification | Functional Performance |
|---|---|---|

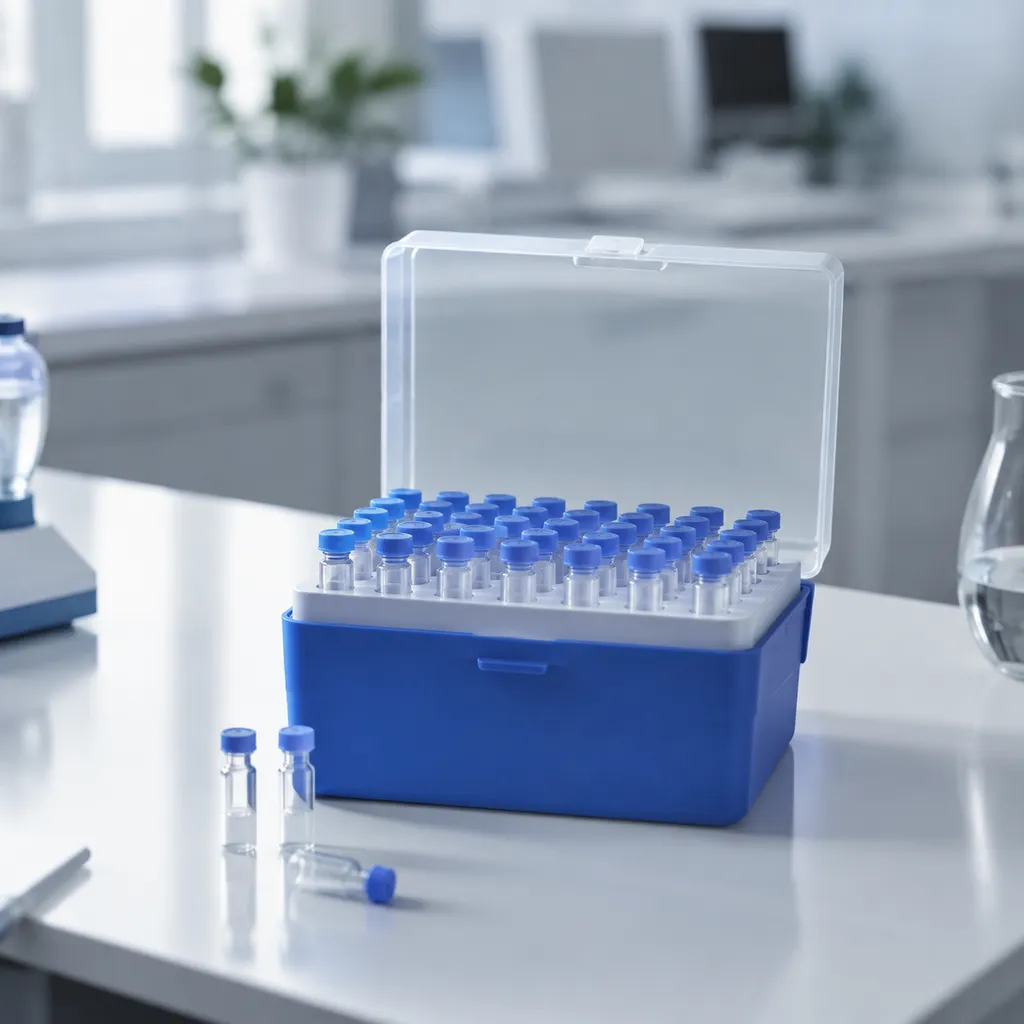

| Point-to-Point Isolation | Custom multi-cavity grid with zero glass-to-glass contact | Eliminates surface scratches and micro-fractures during transport. |
| Automated Line Integration | Exacting pocket tolerance engineered to ±0.02 mm | Ensures seamless pick-and-place compatibility on robotic filling lines. |
| Secure Latching System | Ergonomic snap-tight closures with double-walled hinges | Prevents accidental opening during high-vibration shipping or freezer storage. |
Advanced Protection for Automated and Manual Workflows
- Complete Cavity Separation: Individual cell walls keep containers isolated, making our design the preferred custom vial sample box for safe storage and shipping across luxury decant and clinical applications.
- High-Speed Automation Ready: Rigid outer dimensions and precise cavity spacing allow our precision molded vial box to integrate directly into high-speed sorting and capping lines without jams.
- Leak-Proof Lock Security: Latch mechanisms resist flexing under pressure, ensuring that your high-value liquids stay securely sealed inside our 2ml vial box for lab storage.
Industry Applications for the PDM Vial Box
Luxury Perfume Discovery Sets
- PdM-Style Presentation: Perfectly fitted for niche fragrance brands creating a luxury sample discovery box with 1.5ml to 3ml sample atomizers.
- Zero-Rattle Security: Custom die-cut inserts lock fragile glass decants in place, eliminating breakage during global shipping.
- Elevated Unboxing: Clean layout aesthetics highlight premium samples. You can fully customize your layout using our custom vial packaging design with inserts.
Pharmaceutical Staging & Transport
- Cleanroom Integration: Functions as a sterile cleanroom vial case for batch holding, staging, and automated line transport.
- Contamination Prevention: Smooth, non-shedding materials withstand harsh chemical wipe-downs and routine lab protocols.
- Batch Protection: Secures prefilled glass containers throughout production workflows. Discover how we construct complete workflow solutions with our primary and secondary packaging for vials.
Diagnostic & Lab Storage
- Alphanumeric Grid Tracking: Clear matrix coordinate markings streamline inventory management and prevent sample mix-ups.
- Deep-Freeze Resilience: Maintains structural integrity down to -80°C, making it a reliable precision molded vial box for long-term biorepository archiving.
Custom PDM Vial Box Tailored for Your Brand
We transform your design requirements into market-ready packaging through complete OEM and ODM capabilities for every pdm vial box. Whether you are launching a luxury fragrance sample discovery box or staging pharmaceutical batches, we tailor every detail to match your exact technical and aesthetic standards through our custom packaging capabilities.
Customization & Finishing Options
We offer precise decorating and structural techniques to align with your brand identity:
- Metallic Foil Stamping & Embossing: Premium gold, silver, or custom holographic finishes with crisp raised logos.
- UV Printing & Pantone Matching: High-definition graphics with exact Pantone color matching for consistent corporate branding.
- Tailored Cavity Inserts: Custom EVA foam and plastic grids engineered to fit 1.5ml, 2ml, 5ml, or 10ml vials with zero lateral movement.
Rapid Prototyping & Production Speed
We shorten your time-to-market with quick design turnarounds and accelerated production cycles:
- Fast Sampling: Standard and modified sample prototypes ready in 7–10 days.
- Precision Tooling: Full custom engineering and mold development completed in just 2–4 weeks.
Frequently Asked Questions: PDM Vial Box
Can we customize box dimensions for 1.5ml fragrance sample vials?
Yes. We specialize in engineering custom die-cut EVA foam inserts and rigid outer structures designed specifically for 1.5ml to 3ml fragrance sample vials and decants. We configure these layouts to guarantee zero glass-to-glass contact during transport. If you require tailored dimensions or specialized branding, review our custom vial packaging options for low MOQ options.
Are plastic PDM vial boxes autoclavable and deep-freeze safe?
Absolutely. Our USP Class VI polypropylene and COP precision molded vial box options handle operational thermal extremes ranging from -80°C deep freeze up to +121°C steam autoclaving without warping or cracking. For ultra-low temperature requirements, see our specialized cryo vial storage box solutions.
What compliance documentation accompanies batch shipments?
We supply full regulatory documentation packages with every batch, including:
Certificate of Analysis (CoA): Validates precise dimensional tolerances within ±0.02 mm.
Material Compliance: USP Class VI and RoHS certification reports.
Cleanroom Validation: ISO Class 7 and Class 8 manufacturing compliance verification.
What is the MOQ for custom-printed boxes versus standard inventory?
We maintain flexible minimum order quantities to match your production phase:
Standard Inventory: Starts at 100 units for stock plastic vial boxes and multi-cavity grids.
Custom OEM/ODM Packaging: Starts at 500 to 1,000 units for custom printing, foil stamping, or specialized discovery set box inserts.
