Overview
Are your glass ampoules breaking in transit, jamming your packaging lines, or failing strict regulatory checks? We engineer each ampoule packaging tray to eliminate breakage, streamline high-speed automation, and deliver consistent protection from production to end-user.
Technical Specifications & Material Matrix
We offer tailored material selections and precision sizing to fit standard glass ampoules (1 ml to 20 ml) as well as custom-molded ampoules.
Comprehensive Specification Table
| Parameter | Standard Specification |
|---|---|
| Material Options | PETG, APET, PP, PS, PVC |
| Ampoule Size Range | 1 ml, 2 ml, 5 ml, 10 ml, 20 ml (Custom shapes available) |
| Thickness Range | 0.7 mm – 1.0 mm |
| ESD Protection | Anti-Static (10⁹ - 10¹¹ Ω/sq) / Conductive (10⁴ - 10⁶ Ω/sq) |
| Cleanroom Class | ISO Class 7 & Class 8 Manufacturing |
| Temperature Resistance | -40°C to +85°C (Cold-chain compliant options) |
| Compliance | FDA 21 CFR, USP Class VI, ISO 13485, REACH, RoHS |
Material Performance Options
We select high-grade plastics to match your specific storage environment, shipping conditions, and regulatory mandates:
- Medical-Grade PETG: Exceptional clarity, outstanding impact strength, and full compliance with USP Class VI standards for pharmaceutical use.
- APET: Highly cost-effective and clear plastic ideal for standard diagnostic kit packaging and cosmeceutical serum sets.
- Polypropylene (PP): High thermal resistance suitable for high-temperature sterilization, autoclaving, or deep cold-chain storage.
- Anti-Static ESD Formulations: Prevents dust attraction and static buildup to ensure smooth de-nesting on automated packaging lines.
Advanced Engineering & Ampoule Packaging Tray Features
We engineer every Ampoule Packaging Tray to solve real-world transit and handling issues. Fragile glass requires precision containment, and our designs ensure your products arrive intact and ready for use.
Anti-Breakage & Shock-Absorbing Cavity Design
Glass ampoules easily crack under stress or vibration during transport. We solve this by molding targeted protective features directly into each cavity:
- Contoured Snap-Fits: Secure the ampoule neck without placing excessive pressure on stress points.
- Perimeter Ribbing: Absorbs outer impact forces and prevents structural collapsing.
- Zero-Contact Cavity Depth: Keeps delicate glass tips elevated to eliminate direct friction.
Pairing these trays with specialized vial packaging options provides complete protection across your entire injectable product line.
Automated Packaging Line Compatibility
Stoppages on high-speed filling lines cost time and money. Our thermoformed ampoule blister tray solutions integrate seamlessly into automated workflows:
| Feature | Automated Line Benefit |
|---|---|
| Precision Flange Geometry | Guarantees exact placement on pick-and-place machinery. |
| De-Nesting Lugs | Prevents trays from sticking together during automated feeding. |
| Anti-Static (ESD) Coating | Eliminates static cling to keep dust off the line and maintain smooth movement. |
Ergonomic & User-Centric Details
A great medical-grade PETG ampoule inset must be easy for end-users to operate safely in fast-paced medical environments.
- Intuitive Thumb Recesses: Allows clinicians to lift ampoules easily without risking accidental breakage.
- Smooth Beveled Edges: Protects healthcare workers from sharp plastic corners during rapid handling.
- Stackable Storage Layout: Maximize cold-chain storage capacity while keeping contents organized.
Cleanroom Manufacturing & Quality Assurance
When packaging sensitive pharmaceuticals, hygiene and safety are non-negotiable. We manufacture every ampoule packaging tray under strict environmental controls to protect your products from the factory floor to the final end user.
Contamination & Bioburden Management
Particulates and bioburden can ruin an entire batch of injectable drugs or diagnostic reagents. That is why our thermoforming lines operate inside certified ISO Class 8 cleanrooms.
- Controlled Environments: We filter airflow continuously to eliminate airborne dust, fibers, and microbes.
- Material Integrity: We use medical-grade plastics like PETG, PS, and PP, ensuring zero off-gassing or chemical leaching.
- Hygiene Standards: Our staff follows strict gowning and sanitization protocols to keep human contamination at absolute zero.
To maintain these strict standards, we uphold complete quality certifications across all our cleanroom production facilities.
Rigorous Inspection Protocols
We don't leave quality to chance. Every batch of thermoformed ampoule blister trays undergoes multi-stage quality checks before leaving our facility.
| Inspection Stage | Parameter Tested | Target Outcome |
|---|---|---|
| In-Line Vision Systems | Cavity dimensions & wall thickness | 100% precision fit without thin spots |
| Mechanical Testing | Impact resistance & retention snap | Zero breakage during transit |
| Cleanroom Sampling | Particulate counts & bioburden | Full compliance with medical standards |
Regulatory Documentation Provided
Navigating global pharmaceutical regulations requires clear, traceable paperwork. We provide comprehensive documentation packages with every order to ensure smooth audits and regulatory clearance.
- USP Class VI & FDA Compliance: Material test reports for safe drug contact.
- Certificate of Analysis (CoA): Batch-specific verification of physical and biological standards.
- Full Lot Traceability: Raw material logs mapped directly to your final shipment.

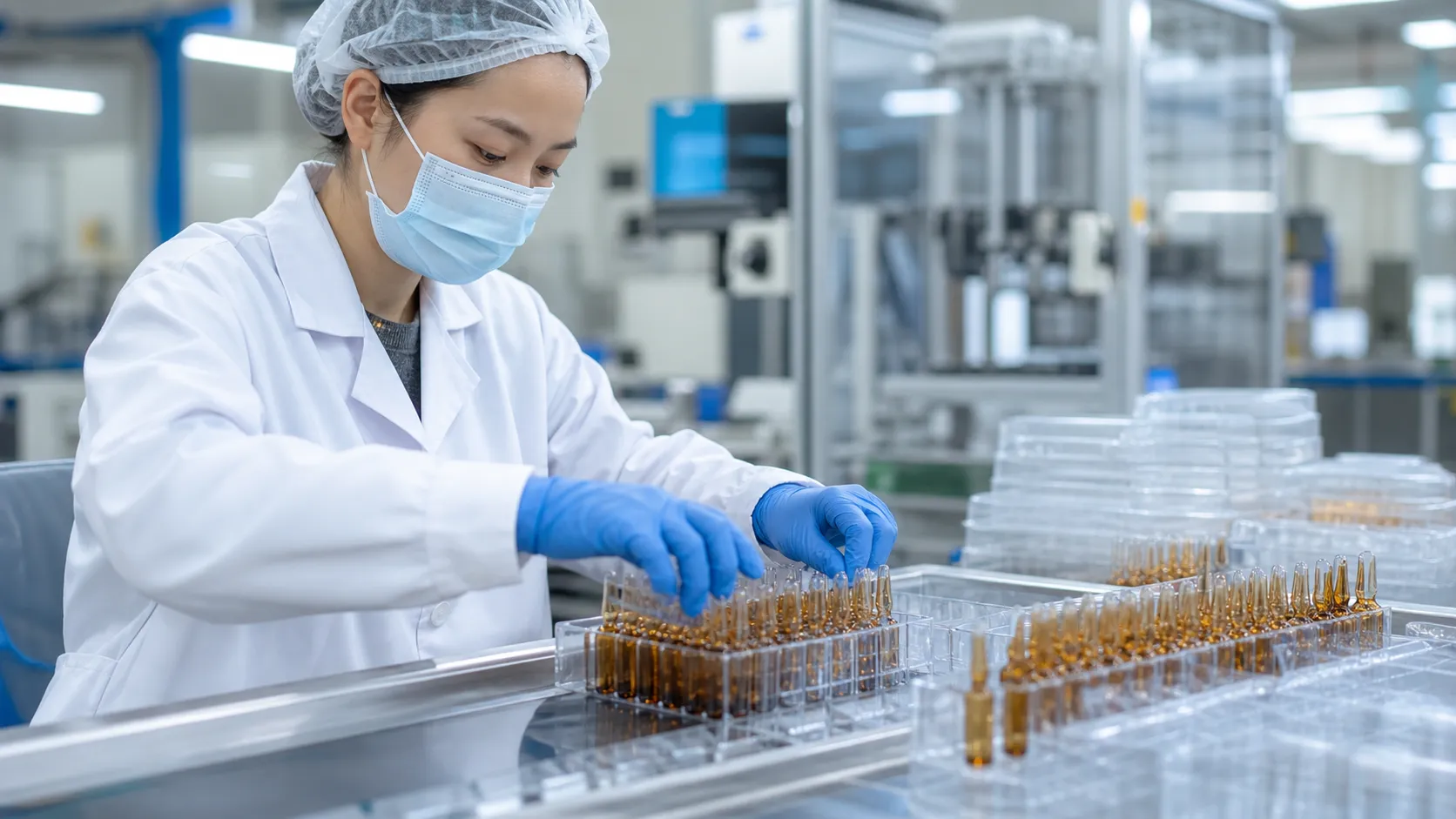

Turnkey OEM / ODM Customization Process
We make custom ampoule packaging tray manufacturing seamless from concept to mass production. Whether you need a customized thermoformed ampoule blister tray or a specialized medical-grade PETG ampoule inset, our end-to-end OEM/ODM workflow guarantees speed, precision, and complete regulatory compliance.
Step 1: Engineering Consultation & Design Brief
Every successful project starts with a clear strategy. We sit down with your engineering team to understand your exact packaging requirements, including vial dimensions, shipping stress factors, and cleanroom requirements. During this phase, we analyze product stability, barrier needs, and automated line integration. To get expert guidance tailored to your specific project needs, explore our technical support services.
Step 2: 3D CAD Modeling & Mold Flow Simulation
Once we define the project scope, our structural engineers create precise 3D CAD models of your anti-static ESD ampoule tray or multi-cavity ampoule transport tray. We run advanced mold flow simulations to test wall thickness uniformity, stress distribution, and stackability before cutting metal.
- Dimensional Precision: Engineered to sub-millimeter tolerances for secure ampoule fit.
- Stress Optimization: Simulated ribbing structures absorb impacts during cold-chain transit.
- Line Integration: Custom contours ensure seamless performance on automated de-nesting equipment.
Step 3: Fast Tooling & Prototyping
Speed to market matters in healthcare and cosmetics. We leverage precision CNC machining to deliver high-accuracy physical samples for testing and validation. You can learn more about how we accelerate your product launches through our fast sampling capabilities.
| Stage | Key Deliverable | Purpose |
|---|---|---|
| Concept CAD | 3D Digital Rendering | Initial fit and layout validation |
| Prototype Mold | Physical Thermoformed Samples | Drop testing, fit check, and line trial |
| Sign-off | Approved Golden Sample | Benchmark for mass production tooling |
Step 4: High-Cavitation Production & Global Delivery
After prototype approval, we move into full-scale production in our ISO-certified cleanrooms. Using high-cavitation aluminum molds, we deliver uniform quality across millions of units with short lead times.
- Cleanroom Molding: Produced in controlled environments to maintain low bioburden standards.
- Automated Quality Control: Optical inspection systems verify every custom injection molded ampoule tray.
- Global Logistics Support: Secure, export-ready packaging ensures safe arrival at your facility anywhere in the world.

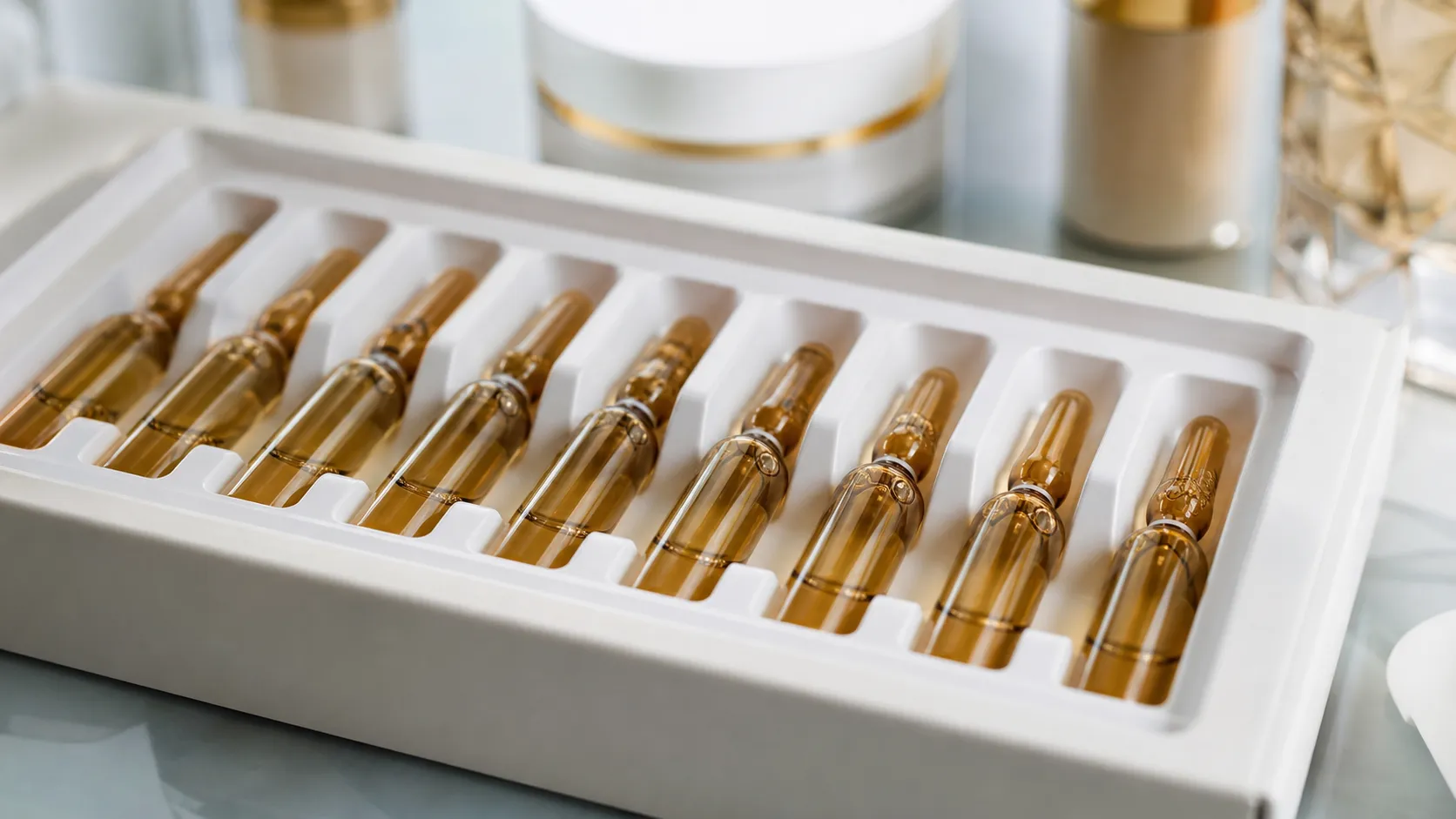

Application Scenarios & Industry Use Cases
We design each ampoule packaging tray to protect fragile glass containers across demanding industries. From cold-chain logistics to high-end retail displays, our custom trays ensure zero breakage and maximum operational efficiency.
Pharmaceutical & Biotechnology
High-value biologics and injectables require uncompromising protection during transit and storage. We manufacture specialized holders tailored for delicate glass containers, ensuring full compliance with strict healthcare packaging standards. For specialized applications, our pharmaceutical packaging solutions provide robust protection against shock and thermal variation, making them ideal for cold-chain vaccine transport and sensitive therapies.
Diagnostics & Clinical Laboratories
In clinical environments, speed and accuracy are critical. Our diagnostic reagent ampoule cassettes hold liquid reagents, test controls, and sensitive chemical samples securely in place. We build these trays for seamless integration with automated analyzer platforms, preventing spills and streamlined workflow handling in fast-paced lab settings. To explore our full line of lab-ready designs, check out our dedicated biotechnology packaging options.
Cosmeceuticals & High-End Skincare
Luxury skincare brands rely on ampoules to preserve potent active serums and anti-aging treatments. Our thermoformed inserts combine top-tier protection with a premium unboxing experience.
- Crystal-Clear Clarity: Showcases your product's formulation directly to consumers.
- Precision Fit: Prevents rattling and glass-on-glass contact inside retail boxes.
- Easy Snap-Out Access: Designed so customers can easily remove individual serum doses without struggle.
Frequently Asked Questions (FAQ)
Can Jiahua engineer trays for non-standard or custom-designed glass ampoules?
Yes, we specialize in custom Ampoule Packaging Tray designs tailored to your specific vial or container dimensions. Whether you need a unique cavity footprint or an extra-secure snap-fit latch, our engineering team works directly with your engineering specs. You can explore our custom packaging solutions to see how we build bespoke molds from scratch.
What minimum order quantity (MOQ) applies to custom-molded ampoule trays versus standard stock sizes?
For off-the-shelf, standard-size trays, our MOQs are kept low to support smaller test runs and clinical trials. Custom-molded projects typically require higher minimums to offset the initial tooling costs. We always provide clear, transparent pricing and MOQ options upfront depending on the material, cavity density, and overall volume you require.
How do Jiahua trays prevent static buildup in automated packaging lines?
We manufacture our trays using anti-static ESD plastic blends and topical coatings that dissipate surface charges. This prevents light, fragile glass ampoules from sticking together or attracting airborne dust while moving through high-speed, automated de-nesting equipment.
What documentation accompanies shipments to satisfy pharmaceutical regulatory audits?
Every shipment comes with complete regulatory compliance packages. We include Certificates of Analysis (CoA), material safety data sheets, raw material traceability records, and USP Class VI or ISO cleanroom compliance certificates. If you have specific compliance requirements, check our frequently asked questions or reach out to our quality team directly.
