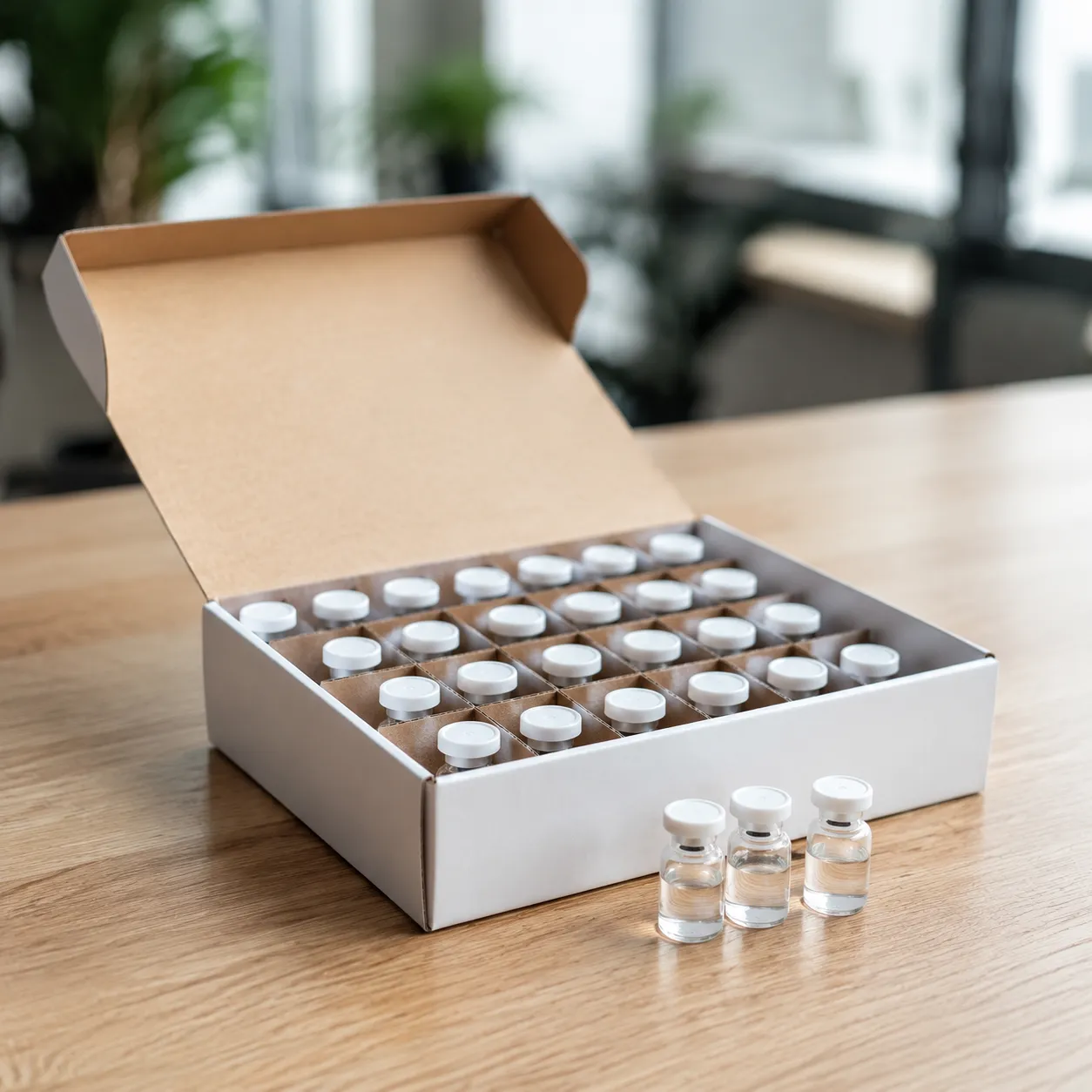

Corrugated Box for 10ml Vial Custom Printed Packaging

Product Overview & Value Proposition

Transporting delicate liquid formulations requires zero-compromise protection. We engineer our corrugated box 10ml vial systems to protect high-value pharmaceuticals, diagnostic reagents, and biologics from transit shocks, cold-chain risks, and handling stress.

Dual-Layer Containment Strategy

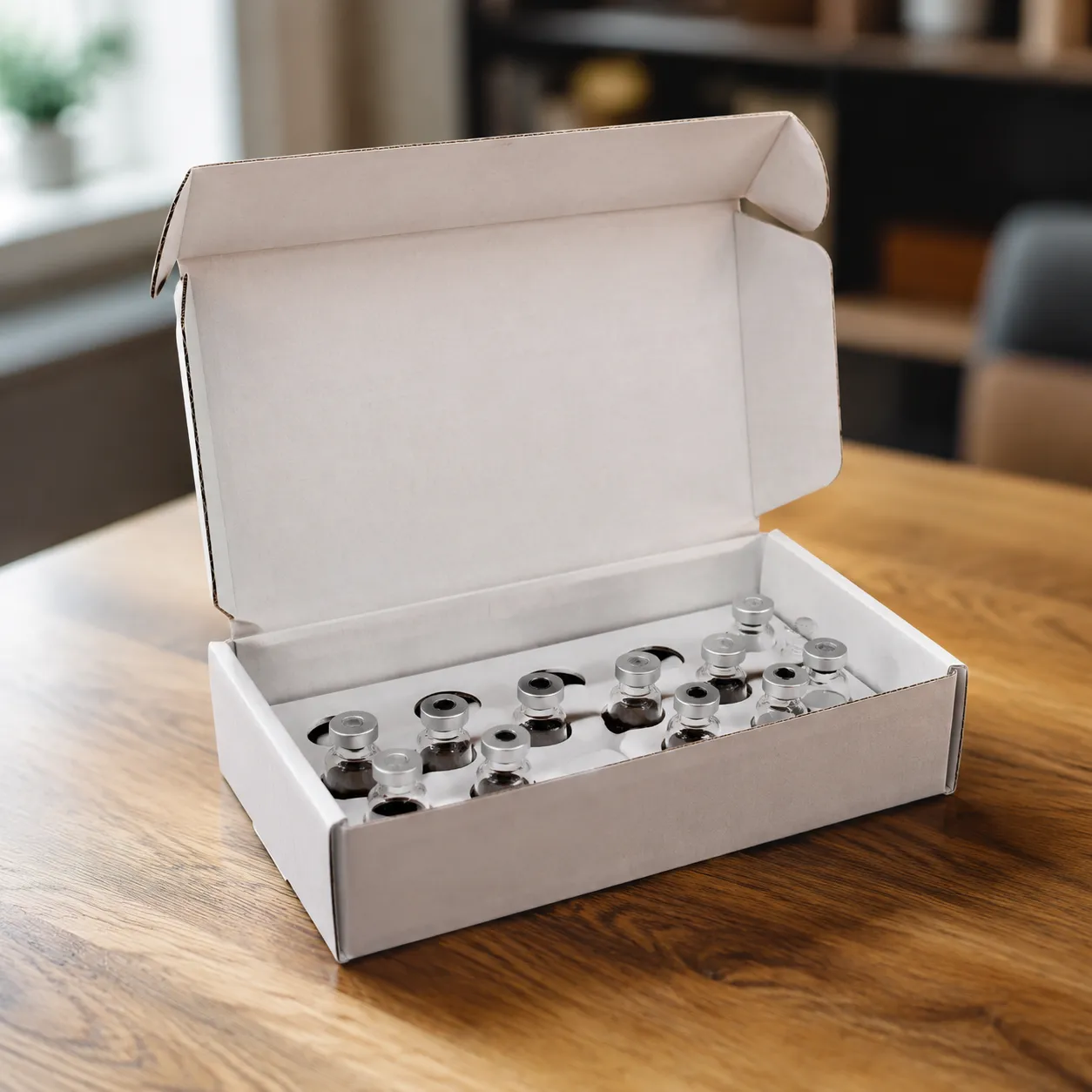

Our dual-layer design pairs high-durability outer corrugated mailers with a precision-molded protective plastic vial tray insert.
Outer Mailer: Heavy-duty corrugated construction engineered for high edge crush resistance (ECT) during stack transport.
Inner Tray: Custom-contoured inserts hold every 10ml glass container firmly in place to maximize shock absorption.

Zero Breakage Guarantee Strategy

We eliminate glass-on-glass collision by locking each container into an isolated cavity.
Impact Isolation: Individual cell separation prevents physical friction, cracking, and surface abrasion during parcel shipping.
Drop-Tested Security: Engineered as a drop-resistant vial partition box that withstands standard ISTA transit drop tests.

Automated Line Readiness

Built to keep pace with modern high-throughput packaging operations:
Robotic Compatibility: Rigid cavity tolerances facilitate high-speed automated pick-and-place filling operations.
Seamless Integration: Designed as an efficient 10ml sample vial mailer for direct loading into secondary pharmaceutical packaging workflows.

Technical Specifications & Engineering Standards

Outer Corrugated Box Specifications

• • Flute Options: E-flute micro-corrugated board for sharp visual branding; high-durability B-flute or C-flute for structural shipping mailers.
  • Board Stock: Natural Kraft, Bleached White, or Premium Clay-Coated Board in thicknesses ranging from 10pt to 28pt.
  • Structural Integrity: High Edge Crush Test (ECT) ratings engineered to withstand stacking loads and drop impacts. For specialized logistics, we also offer a custom vial sample box for safe storage and shipping.

Inner Protective Tray & Insert Specifications

• • Medical-Grade Polymers: Thermoformed from USP Class VI compliant PP, PE, PETG, PS, COP, or COC to prevent leaching and contamination.
  • Ultra-Tight Tolerances: Molded down to ±0.02 mm tolerances for precise vial seating that stops glass-on-glass contact. For cleanroom filling workflows, integrate these with our sterile RTU vial tray kit.
  • Standard Layouts: Formats include single-vial unit mailers, 2-vial double barrel kits, 6-vial grids, and 12-vial grid layouts.

10ml Vial Packaging Dimension Matrix

Structural Configurations & Insert Types

Custom Die-Cut Windows

We offer custom die-cut windows fitted with high-clarity PET film. This structural feature allows direct visual inspection of vial labels, batch lot numbers, and fill levels without breaking the tamper-evident box seal.

• • Fast Inventory Audits: Scanners can read 2D matrix codes and barcodes directly through the window.
  • Reduced Handling Risk: Eliminates unnecessary opening of the outer mailer in warehouse and clinical environments.

Rigid Cleanroom Plastic Trays vs. Foam Inserts

Cleanroom operations and pharmaceutical packaging require zero particulate contamination. We specialize in precision-molded USP Class VI plastic trays over legacy foam. When implementing a complete custom vial packaging design with inserts and compliance, thermoformed plastic ensures strict cleanliness and precise robotic alignment.

Tuck-End, Sleeve, and Magnetic Closures

We tailor the outer structure of your custom corrugated box for vials based on your final distribution channel:

• • Reverse Tuck-End (RTE) & Straight Tuck-End (STE): Standard commercial mailers optimized for high-speed automated cartoners. Lightweight micro-flute (E-flute) construction saves shipping weight.
  • Slide-Out Sleeve & Tray: Dual-wall reinforced protection ideal for 10ml sample vial mailer configurations and clinical trial kits requiring extra end-impact protection.
  • Magnetic Closure Boxes: Heavy-duty rigid board wrapped in custom-printed kraft or specialty paper. Best suited for premium retail packaging, luxury cosmetic serums, and high-value diagnostic kits.

Quality Assurance & Cleanroom Manufacturing Compliance

We maintain strict quality control across every production stage to ensure your corrugated box 10ml vial packaging meets international pharmaceutical standards.

Controlled Production Environments

• • ISO Class 7 (Class 10,000): High-precision molding of protective inserts occurs in certified low-particulate zones.
  • ISO Class 8 (Class 100,000): Assembly and outer box packing take place in controlled environments to prevent airborne contamination.
  • Sterile Integration: Our processes pair seamlessly with pre-sterilized RTU vials and modular vial systems directly on automated fill-finish lines.

Bioburden & Contamination Control

We use particulate-controlled molding and automated packaging workflows. Every inner tray and outer pharmaceutical vial shipping box undergoes air-wash de-dusting and anti-static treatments to eliminate microbial and physical contaminants before shipping.

Complete Traceability & Regulatory Standards

• • 100% Cosmetic Scanning: High-speed vision systems continuously inspect tolerances, seal integrity, and structural defects.
  • Full Batch Traceability: Every shipment includes comprehensive lot tracking from raw resin and paperboard to final delivery.
  • Documented Compliance: Complete dimensional inspection reports and USP Class VI certificates ship with every batch.

Custom OEM/ODM Workflow & Rapid Prototyping

We streamline the transition from initial concept to mass production through a 4-step engineering process tailored for your exact corrugated box 10ml vial packaging needs.

• • Phase 1: Application & Drawing Review
    We audit exact vial body dimensions, neck specs, and total height to calculate exact tray cavity depths and optimal outer box geometry.
  • Phase 2: Structural CAD & Mold Tooling
    Our team develops precision CAD die-lines and custom mold inserts tailored to your brand specs. Explore our custom 10ml vial box packaging with inserts to see how custom structural CAD aligns with high-speed automated lines.
  • Phase 3: Fast Sample Delivery
    We dispatch standard structural samples in 7–10 working days, while fully custom CAD prototypes arrive in 2–4 weeks for complete physical drop-testing and cleanroom validation.
  • Phase 4: High-Volume Production & Printing
    We scale up mass manufacturing using high-resolution CMYK offset printing, custom logo hot-stamping, spot UV highlights, and protective aqueous coatings built for global transport.

Corrugated Box 10ml Vial Solutions Across Key Industries

Biopharmaceutical & Peptide Logistics

Temperature-sensitive biologicals and peptides demand uncompromised structural integrity throughout cold-chain distribution. We manufacture high-density outer corrugated mailers that withstand structural compression, humidity, and sub-zero temperatures. Paired with shock-absorbing inserts, our specialized pharmaceutical vial shipping solutions prevent glass-on-glass contact, ensuring zero breakage and intact container closure integrity during global freight transit.

Diagnostic Reagents & Kits

Clinical testing and diagnostic workflows rely on organized, multi-component sets. We craft multi-cavity tray layouts and double-barrel mailer structures that hold paired liquid reagents and reconstitution solutions firmly in place. Our custom-engineered diagnostic kit packaging prevents bottle shifting, eliminates friction-induced label abrasion, and supports fast assembly in high-volume laboratory settings.

Essential Oils, Serums & Clinical Samples

For high-potency cosmetic formulations, concentrated oils, and delicate clinical specimens, any breakage or leakage directly damages brand reputation. Our 10ml serum vial box with insert systems provide reliable, heavy-duty drop protection alongside high-end visual appeal.

• • Vibration & Shock Absorption: Custom-molded plastic or micro-flute dividers isolate each bottle to absorb sudden parcel drops.
  • Leakage Containment: Snug cavity tolerances hold caps firmly upright, minimizing liquid movement and risk of seal failure.
  • Custom Brand Elevation: Premium exterior printing, spot UV highlights, and clean die-cut windows deliver an executive retail unboxing experience.

Ordering & RFQ Guide for Corrugated Box 10ml Vial Packaging

We streamline your procurement process with transparent pricing, rapid quote turnarounds, and scalable manufacturing. Whether you are scaling up a clinical pilot or launching mass commercial distribution, our flexible supply chain adapts to your production timelines. Explore our custom glass vial packaging options for bulk orders to select the ideal configuration for your facility.

Flexible Minimum Order Quantity (MOQ)

• • Small Pilot Runs: Starting at 500 units for clinical trials, formulation testing, and 10ml sample vial mailer validation.
  • Commercial Scale: Scalable up to 100,000+ units per run for full-scale biopharmaceutical shipping and wholesale corrugated vial packaging orders.

Custom Quotation Matrix

Global Logistics & Direct Factory Support

• • 12-Hour Response Guarantee: Send us your vial specifications and structural requirements for a detailed quote within 12 hours.
  • Direct Factory Shipping: Products ship directly from our manufacturing facilities with complete batch traceability and dimensional inspection reports.
  • Cold-Chain Ready Freight: Flat-packed shipments optimize your warehouse footprint and reduce global freight costs.

Frequently Asked Questions

How do corrugated boxes protect 10ml glass vials during transport?

Our corrugated box 10ml vial packaging relies on a dual-layer containment strategy. High-durability outer mailers (B-flute or E-flute) absorb impact from external drops, while precision-engineered inner inserts lock each vial in place to eliminate glass-on-glass collision. For cold-chain logistics, moisture-resistant coatings ensure the structural integrity of the outer box remains intact despite humidity and condensation.

What is the difference between rigid plastic inserts and traditional foam?

We recommend USP Class VI rigid plastic trays over foam for medical and pharmaceutical applications due to strict cleanliness standards and automated packaging requirements.

Explore our dedicated line of pharmaceutical vial boxes to find the right combination of outer cartons and protective inserts for your production facility.

Can custom 10ml vial corrugated shipping boxes meet cleanroom standards?

Yes. We manufacture protective plastic inserts and box assemblies inside controlled ISO Class 7 and ISO Class 8 cleanrooms. Our operations include bioburden management, particulate-controlled molding, and 100% cosmetic scanning verification to guarantee full compliance with pharmaceutical quality assurance requirements.

What are the lead times and minimum order quantities (MOQ)?

We support both small-scale clinical trial orders and mass commercial runs with flexible terms:

• • Minimum Order Quantity (MOQ): Flexible options starting from small-batch pilot runs up to high-volume manufacturing.
  • Standard Samples: 7–10 working days for stock structural samples.
  • Custom CAD & Mold Tooling: 2–4 weeks for custom-molded inserts and branded prototype boxes.

Review our specialized 10ml injection vial packaging options for full dimensional specifications and custom branding possibilities.
