Overview
Precision Cartridge Trays for Automated Packaging Lines
High-speed automated filling lines and sensitive biologic formulations demand zero-defect packaging solutions.
High Dimensional Accuracy for Automated Filling Lines
Our pharmaceutical cartridge trays are manufactured with critical geometric stability to support uninterrupted automated processing:
- Tight Dimensional Tolerance: Precision molded with tolerances up to ±0.02 mm to prevent robotic arm misfeeds.
- Rigid Pocket Alignment: Maintains exact cavity positioning for high-speed pick-and-place filling operations.
- Seamless Extraction: Optimized pocket draft angles ensure smooth insertion and retrieval without dragging.
Advanced Glass Protection & Shock Absorption
Safeguarding sensitive glass cartridge packaging requires structural isolation during high-speed handling and logistics:
- Zero Glass-to-Glass Contact: Individual pocket separation eliminates surface scratching and cosmetic defects.
- Micro-Fracture Prevention: Customized pocket contours cushion cartridges against sudden impact forces.
- Anti-Vibration Ribs: Integrated structural ribbing secures cartridges tightly, stabilizing loads during transit.
Cleanroom Manufacturing & Bioburden Control
To meet stringent global regulatory standards, our cleanroom molded plastic trays adhere to controlled production protocols:
- Controlled Environments: Injection molded strictly within ISO Class 7 (Class 10,000) and ISO Class 8 (Class 100,000) cleanrooms.
- Continuous Monitoring: Real-time particulate tracking minimizes foreign particle contamination.
- Low Bioburden Profile: Controlled manufacturing processes minimize baseline bioburden before final sterilization.
Cold-Chain & Sterilization Compatibility
Designed to survive demanding thermal and chemical sterilization environments, our cold-chain drug cartridge trays offer robust material integrity:
| Performance Feature | Technical Specification | Operational Advantage |
|---|---|---|
| Deep-Freeze Resistance | Withstands temperatures down to -80°C | Prevents polymer embrittlement and cracking in cold storage |
| Sterilization Flexibility | Compatible with EtO, Gamma irradiation, and Autoclaving | Fits directly into established terminal sterilization workflows |
| Structural Stability | Retains dimensional tolerances post-sterilization | Ensures perfect automation fit after thermal processing |
Technical Specifications & Material Matrix for Cartridge Trays
We engineer our pharmaceutical cartridge trays to strict dimensional standards, ensuring flawless automated handling and maximum container protection. Whether you need standard 1.5 ml, 3.0 ml, or 5.0 ml glass and plastic cartridge holders or custom CAD cavity geometry, our cleanroom molded plastic trays provide consistent high-speed line performance. We maintain the same strict regulatory standards across our product portfolio as we do with our ampoule packaging materials for glass, plastic, and sterility.
| Technical Feature | Specification Details |
|---|---|
| Compatible Cartridges | 1.5 ml, 3.0 ml, 5.0 ml standard glass/plastic cartridges; custom CAD cavity geometry |
| Primary Materials | Medical-grade PP, PE, PETG, PS, high-clarity COP, and COC |
| Material Compliance | USP Class VI, ISO 10993 compliant, BPA-free biocompatible polymers |
| Cleanroom Standard | ISO Class 7 & ISO Class 8 molding with enclosed sterile packaging options |
| Dimensional Tolerance | Up to ±0.02 mm precision control tailored to automated filling lines |
| Mold Cavitation & Lead Time | Single-cavity prototyping to high-cavitation production; 7–10 working days for standard samples, 2–4 weeks for custom prototype tooling |
We formulate our USP Class VI plastic trays using medical-grade polymers, including advanced COP/COC materials for high-clarity optical inspection. For integrated fill-finish operations across multiple container formats, learn more about our custom vial packaging designs with compliance inserts built for automated pharmaceutical production.
Primary Application Scenarios for Cartridge Trays
Pharmaceutical & Biologics Cartridge Packaging
We engineer our cartridge trays to protect sensitive biologics and high-value drug delivery systems. Our custom cavity layouts deliver individual pocket isolation and shock absorption during high-speed transit and storage.
- Insulin & GLP-1 Pen Injectors: Precision-fit pockets prevent contact wear and cosmetic scratching on sensitive device barrels.
- Auto-Injector Cartridges: Secure holding points keep fragile components stable throughout assembly and shipping.
- Injectable Drug Formats: Designed specifically to safeguard high-precision custom pharmaceutical cartridges for injectable drugs across demanding cold-chain temperatures down to -80°C.
Nest & Tub Automation Integration
Our sterile RTU cartridge nests drop directly into high-speed automated packaging lines without structural distortion or feeding delays.
- Aseptic Fill-Finish Operations: Fully compatible with standard pharmaceutical vial nest and tub systems for RTU aseptic fill-finish processing.
- Robotic Pick-and-Place: Rigid side-walls and tight dimensional control ensure smooth robotic extraction with zero jamming.
- Contamination Control: Low bioburden profiles and cleanroom manufacturing keep particulate counts strictly within regulatory limits.
Diagnostic & Dental Cartridge Storage
For diagnostic liquid controls and dental anesthetic units, our cartridge packaging trays provide structured organization and secure transit.
| Application | Primary Packaging Target | Key Functional Advantage |
|---|---|---|
| Dental Anesthetics | Standard 1.8 ml / 2.2 ml glass cartridges | Prevents micro-fractures during bulk shipping |
| Diagnostic Liquids | Multi-spec glass and plastic cartridges | Locks units upright to eliminate tipping and leakage |
| Clinical Lab Storage | Specialized diagnostic test cartridges | Enables easy stacking and rapid inventory counts |

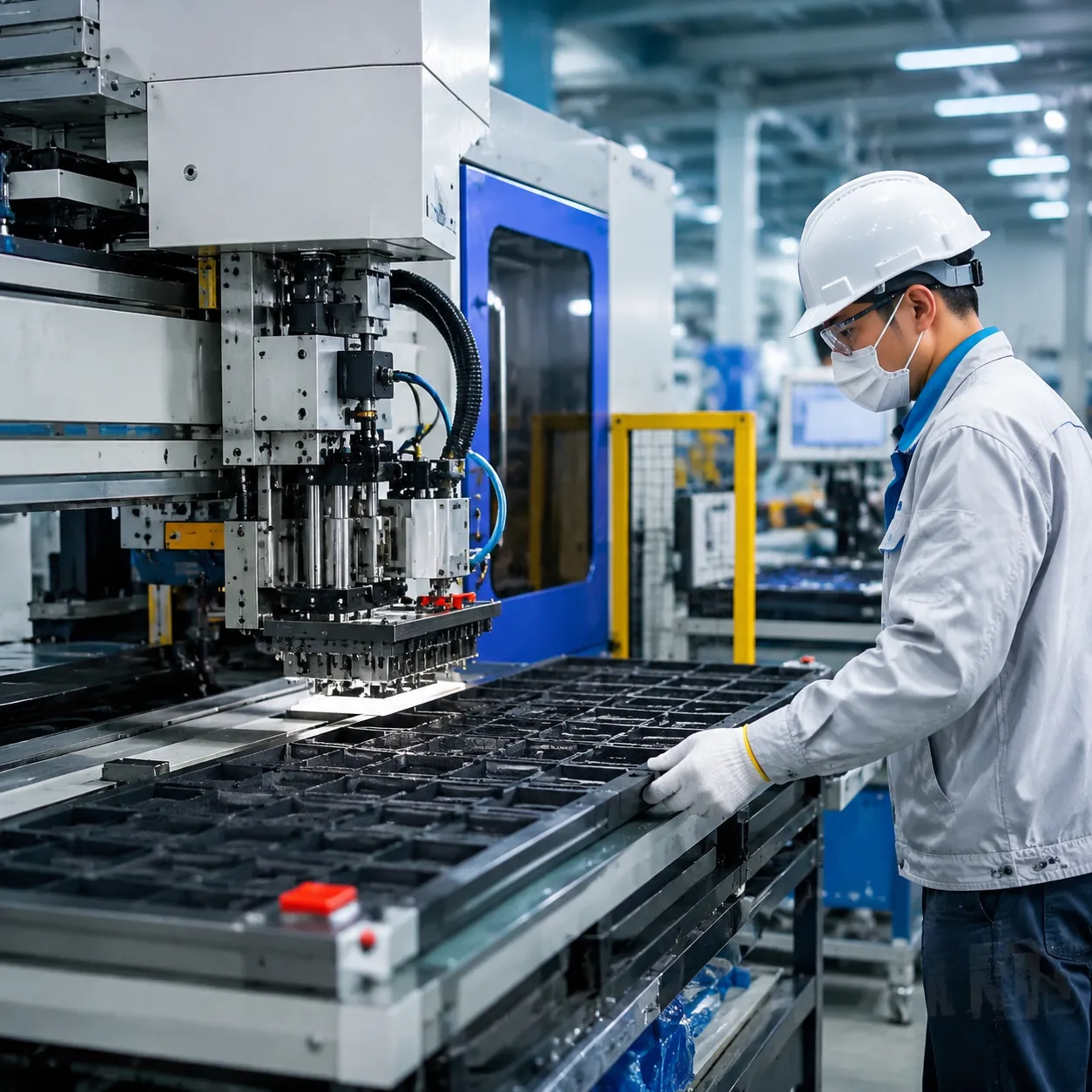

Custom OEM/ODM Development Process
We streamline custom OEM/ODM packaging engineering from initial concept to global supply chain execution, ensuring every tray integrates seamlessly with automated packaging equipment.
| Phase | Core Engineering Focus | Deliverables & Timelines |
|---|---|---|
| Phase 1: Technical Consultation | CAD drawing reviews, cartridge dimension verification, packaging line matching, and resin selection. | Material selection matrix & technical feasibility report. |
| Phase 2: Tooling Design & Mold Flow | In-house precision mold engineering and structural flow simulation to eliminate warpage and sink marks. | Optimized tooling design & proprietary mold ownership. |
| Phase 3: Prototype Sampling | Functional prototype molding, optical defect scanning, bioburden testing, and dimensional inspection. | Functional prototype delivery within 2–4 weeks. |
| Phase 4: Cleanroom Mass Production | Automated injection molding under particulate monitoring with dual support (Jiangsu Facility & USA Office). | Validated production lots with global logistics support. |
Phase 1: Technical Consultation & Material Selection
We evaluate your drug delivery device specifications to engineer exact pocket profiles. Our engineering team reviews CAD files, verifies cartridge tolerances, and selects biocompatible polymers engineered for deep-freeze storage and sterilization. We also ensure seamless compatibility with nested tub and tray aseptic processing solutions for high-speed filling lines.
Phase 2: Tooling Design & Mold Flow Analysis
Our engineering team utilizes advanced mold flow simulations to optimize gate placements, balance fill rates, and eliminate cosmetic sink marks or structural warpage. You retain full proprietary ownership of all custom tooling developed in our facility.
Phase 3: Prototype Sampling & Dimensional Inspection
Functional prototype cartridge trays are delivered in 2 to 4 weeks following design sign-off. Each prototype lot includes complete dimensional verification reports, bioburden testing clearance, and optical defect scanning data to ensure strict pocket alignment.
Phase 4: Cleanroom Mass Production & Global Logistics
Full-scale manufacturing occurs inside certified cleanrooms equipped with continuous airborne particulate monitoring. With automated high-speed injection molding and dual operations across our Jiangsu Facility and USA Office, we deliver reliable global lead times and direct technical support.
Quality Assurance & Regulatory Compliance
Particle & Bioburden Quality Control
We eliminate defects and maintain sterile packaging environments through automated inline monitoring:

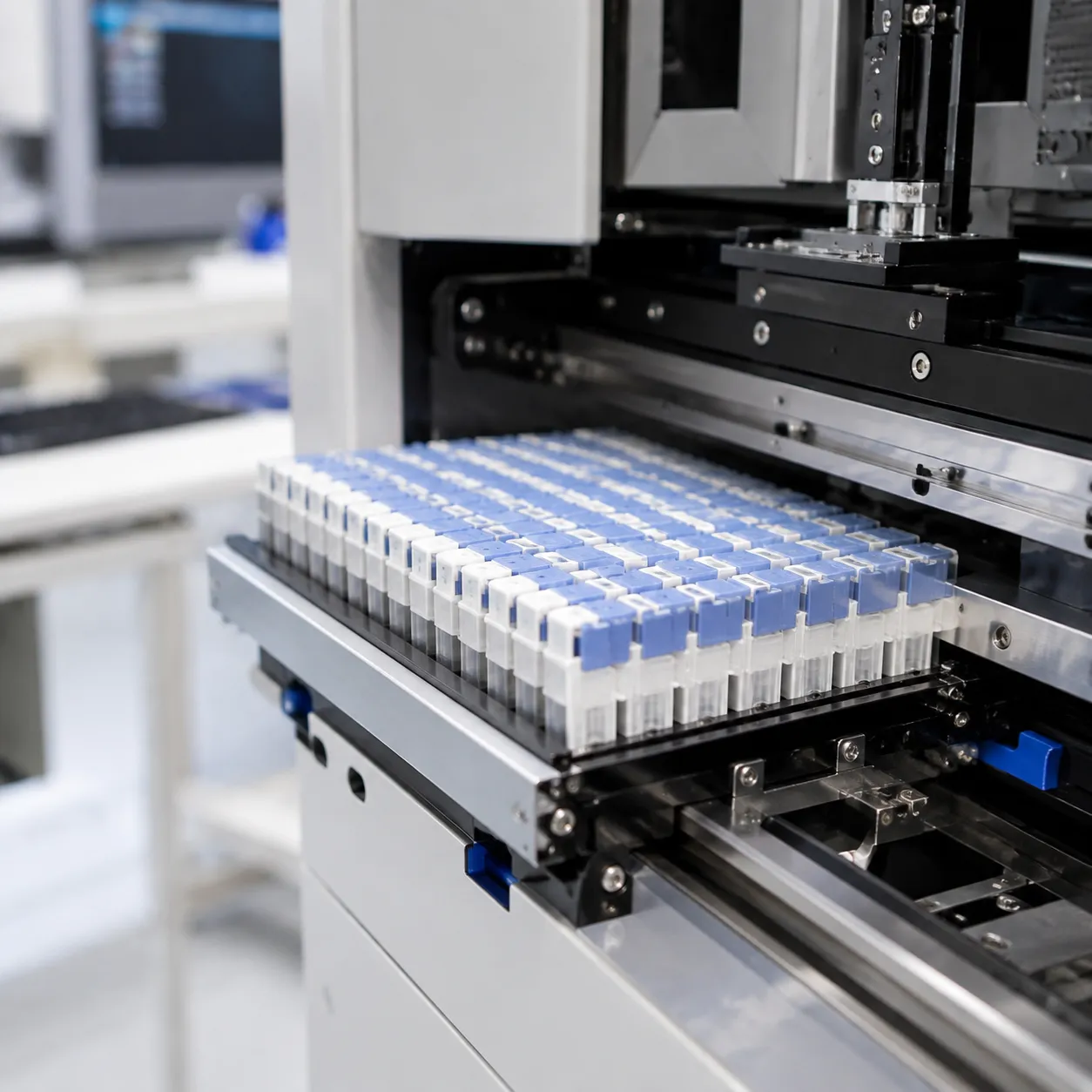

- 100% Optical Vision Inspection: Automated high-resolution camera systems inspect every pharmaceutical cartridge tray for cosmetic blemishes, flash, and structural micro-defects.
- Particulate Contamination Prevention: Advanced vision systems detect and isolate sub-millimeter foreign particles before final cleanroom packing.
- Bioburden Control: Continuous cleanroom air monitoring minimizes microbial risks throughout the injection molding process.
- We maintain full compliance across all facilities backed by our verified quality certifications.
Batch Traceability & Complete Documentation
Every lot of cleanroom molded plastic trays is backed by comprehensive regulatory documentation to support your quality audits and regulatory filings:
- Certificate of Analysis (CoA): Delivered with each batch, detailing dimensional verification and bioburden testing results.
- Material Conformance Sheets: Validates raw material compliance with USP Class VI and ISO 10993 biocompatibility standards.
- Cleanroom Environmental Logs: Provides complete particulate count and environmental telemetry recorded during the exact production window.
Frequently Asked Questions
Can we design cartridge trays to fit non-standard or proprietary drug delivery devices?
Yes. We specialize in custom OEM/ODM engineering, utilizing high-precision tooling engineered directly from your CAD specifications to ensure exact pocket fits for custom drug delivery devices.
What is the typical lead time from design approval to prototype delivery?
- Standard Samples: 7–10 working days.
- Custom Tooling & Functional Prototypes: 2–4 weeks from finalized drawing approval.
Are Jiahua Package cartridge trays compatible with automated high-speed filling lines?
Yes. We manufacture our precision cartridge trays with tight tolerances up to ±0.02 mm and controlled structural rigidity, preventing jams and misfeeds during high-speed automated pick-and-place filling operations.
What quality certifications and cleanroom standards are maintained during production?
We produce all items inside certified ISO Class 7 and ISO Class 8 cleanrooms using USP Class VI medical-grade polymers under complete ISO quality management systems, providing continuous environmental monitoring and full lot traceability.
