Plastic Vial Trays for Pharma Lab Storage and Transport

Standard Dimensions & Cavity Specifications for Plastic Vial Trays

Compatible Vial Sizes & Cavity Layouts

We manufacture multi-cavity packaging trays tailored to standard ISO tubing and molded glass vials, as well as custom outer dimensions.

Structural Engineering & Thermal Performance

Our thermoformed vial packaging balances material efficiency with structural rigidity to withstand demanding supply chain environments:

• • Standard Tray Footprints: Formatted to fit standard modular outer shipping cartons, maximizing pallet utilization and lowering export freight costs.
  • Wall Thickness Options: Material gauge ranges from 0.5mm to 1.8mm, with engineered corner gussets and reinforced sidewalls to prevent flex under heavy loads.
  • Thermal Tolerance: Designed for extreme temperature stability, ranging from -80°C cryogenic storage for sensitive cell therapies up to +135°C steam autoclaving.
  • Sterilization Compatibility Profiles: Fully compatible with Gamma irradiation, Ethylene Oxide (EtO), and Autoclave sterilization protocols without yellowing, warping, or brittle degradation.

Medical-Grade Polymer Selection for Plastic Vial Trays

Choosing the right resin for plastic vial trays dictates thermal stability, physical impact strength, and sterilization compatibility across your filling and packaging lines. We formulate and thermoform our trays using four core medical-grade polymers optimized for specific B2B pharmaceutical applications.

Resin Performance Characteristics

• • Polypropylene (PP): Designed for steam autoclaving up to +135°C. PP offers robust chemical inertness against harsh solvents, making it the primary choice for autoclavable tray inserts and durable 2mL vial boxes for lab storage.
  • PETG (Glycol-Modified PET): Delivers glass-like clarity for automated optical inspection system passes. It withstands heavy impact and retains dimensional stability under Gamma irradiation and Ethylene Oxide (EtO) cycles, matching high-grade ampoule packaging materials for glass and plastic.
  • High-Density Polyethylene (HDPE): Maintains structural flexibility without brittle fracturing under cryogenic deep-freeze conditions down to -80°C, ideal for cold-chain biological storage and lyophilization workflows.
  • Anti-Static & ESD Blends: Formulated with inherent static-dissipative additives ($10^9$ to $10^{11}$ ohms/sq) to eliminate particulate attraction in ISO Class 8 cleanrooms and prevent electrostatic discharge around sensitive automated equipment.

Plastic Vial Trays Engineered for High-Speed Line Automation

Core Operational Features

• • Snap-Fit Cavity Locking: Our snap-fit vial cavity packaging holds each container securely in place, completely eliminating glass-to-glass friction, scratching, and breakage during rapid conveyor indexing.
  • Denesting Lugs & Stacking Shoulders: Built-in anti-jamming stacking shoulders prevent stacked trays from interlocking or forming vacuum seals, guaranteeing flawless single-tray dispensing in automated feeders.

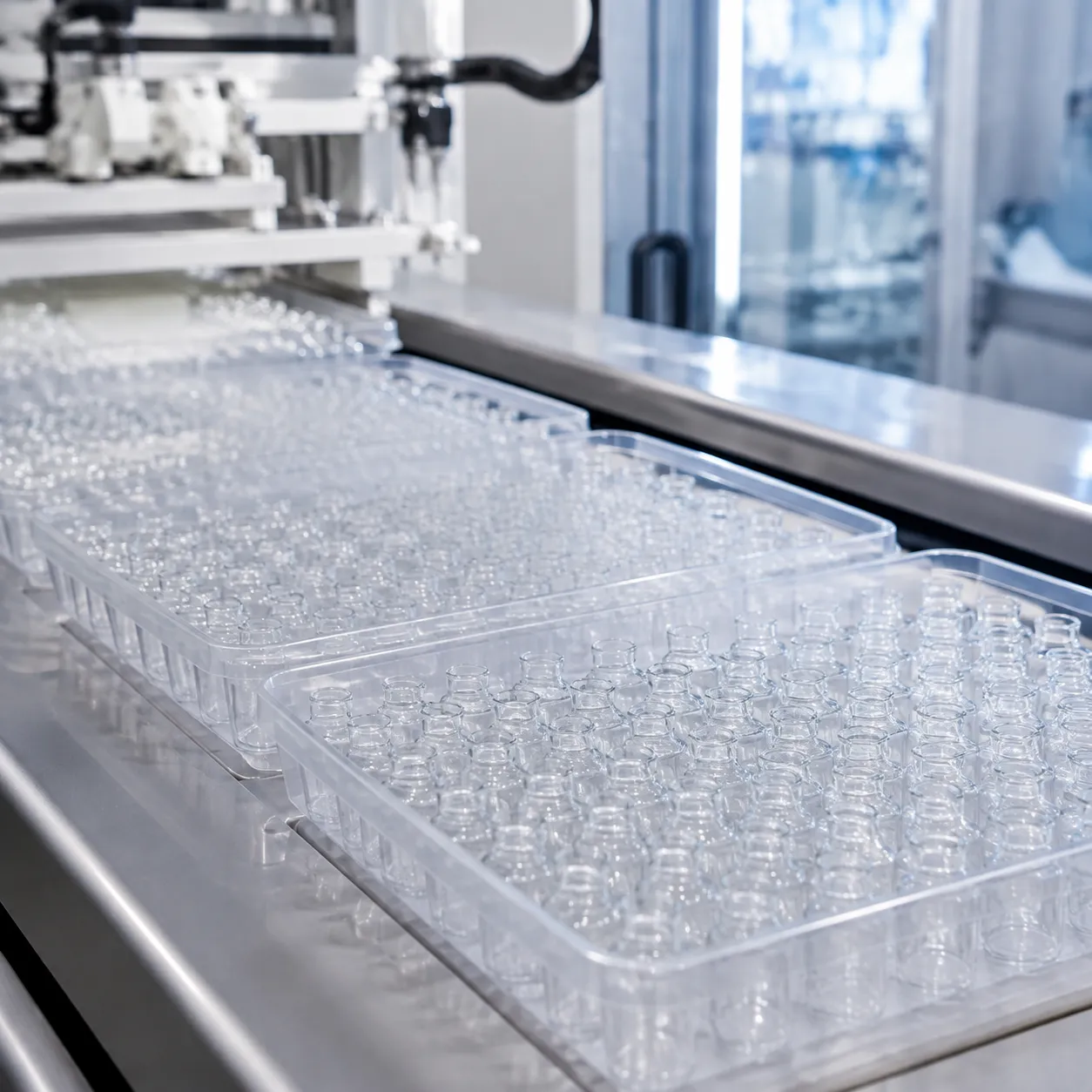

  • Pick-and-Place Automation Precision: Manufactured with tight dimensional tolerances (± 0.2 mm), enabling vacuum-cup assemblies and mechanical grippers to achieve reliable engagement without missed picks.
  • Manual Handling Cutouts: Integrated finger recesses and side notch cutouts allow smooth manual sampling and operator intervention without disturbing adjacent vials.

Line Automation Compatibility Specifications

Custom Plastic Vial Tray Tooling & OEM/ODM Engineering

Off-the-shelf options rarely fit complex biopharmaceutical containers. We engineer custom plastic vial trays built around your exact container dimensions using advanced 3D CAD modeling and custom cavity profiling. By analyzing physical vial samples, we eliminate glass-to-glass contact and secure fragile neck clearances. You can explore complete custom vial packaging design with inserts and compliance options tailored to your production workflow.

Prototyping to High-Precision Production

We bridge the gap between design concepts and automated high-speed filling lines with rapid tooling capabilities:

• • 3D CAD Cavity Profiling: Precise digital mapping ensures cavity depth, draft angles, and snap-fit retention match your vial geometries.
  • 3-to-5 Day Rapid Prototyping: Test form, fit, and automated denesting using 3D-printed or sample aluminum prototype tools before committing to mass production.
  • CNC Aluminum Production Molds: High-grade aluminum tooling cut on CNC mills guarantees tight tolerance consistency across millions of thermoformed trays.

Custom Accessories & System Integration

We deliver fully integrated packaging units designed to streamline storage and transport logistics:

• • Snap-On Dust Covers & Lids: Protective top covers shield vial crimps and stoppers from cleanroom particulate contamination.
  • Stacking Lids & Outer Sleeves: Modular lid designs allow stable multi-tier stacking inside secondary shipping cartons.
  • Secondary Packaging Matching: Combine your thermoformed trays with cost-effective custom wholesale packaging boxes with inserts to optimize total landed pack cost.

Cleanroom Packaging & Quality Assurance for Plastic Vial Trays

We manufacture and package our plastic vial trays inside certified Class 8 cleanrooms to eliminate particulate contamination, static attraction, and bioburden risk before product reaches your fill-finish line.

Certifications & Pharmacopeial Compliance

Our manufacturing processes adhere strictly to medical-grade quality management systems, guaranteeing lot-to-lot consistency and total regulatory compliance:

• • ISO 13485 & ISO 9001 Certified: Rigorous quality management covers raw material incoming inspection, thermoforming tolerances, and batch traceabilities.
  • Pharmacopeial Standards: Fully compliant with FDA 21 CFR requirements and USP Class VI biological reactivity standards.
  • Heavy-Metal-Free Polymers: Free of phthalates, BPA, and heavy metals, ensuring safe direct contact with delicate active pharmaceutical ingredients and pre-sterilized RTU vials.

Contamination Control & Protective Packaging

To maintain ultra-clean integrity throughout transit and warehouse storage, every batch of plastic vial trays undergoes multi-layer protective packaging:

• • Class 8 Cleanroom Production: Extrusion, thermoforming, and primary inspection occur entirely in positive-pressure cleanroom facilities.
  • Double Vacuum-Sealed Polybagging: Trays are double-bagged in heavy-duty PE bags and vacuum-sealed to lock out dust and moisture.
  • Aseptic Line Ready: Designed for seamless transfer through cleanroom airlocks and fully compatible with automated nested tub and tray aseptic processing solutions.

Bulk Ordering & Global Logistics for Plastic Vial Trays

We streamline high-volume procurement for Plastic Vial Trays with flexible ordering terms and reliable international logistics. Whether you need standard off-the-shelf inventory or tailored molds alongside our custom glass vial packaging options for bulk orders, we align our production directly with your manufacturing schedules.

Order Fulfillment & Supply Chain Parameters

Packaging Integrity & Global Freight

To protect product cleanliness from our manufacturing facility to your sterile fill-finish line, every order undergoes strict contamination control:

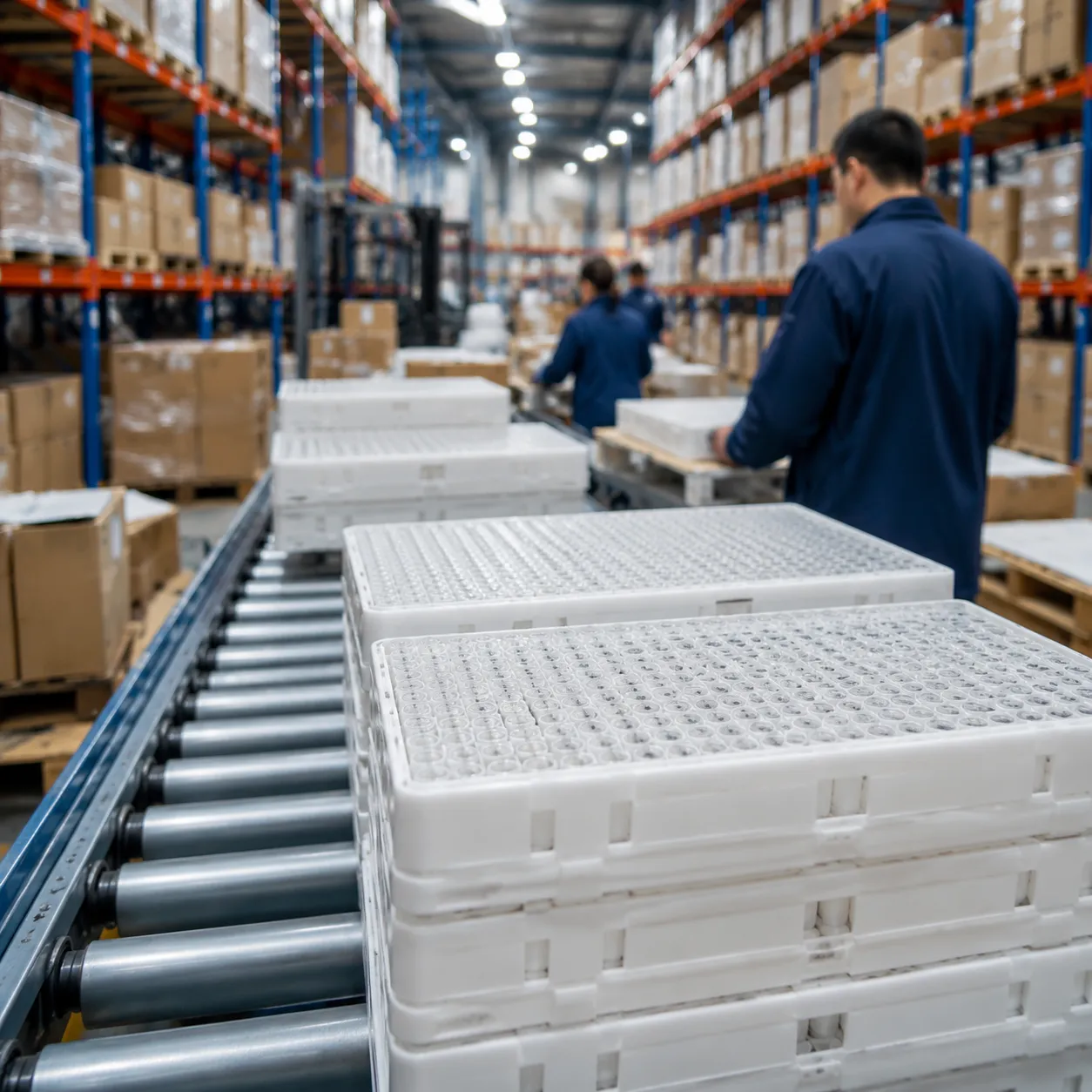

• • Cleanroom Double Polybagging: Thermoformed vial trays are packed in sealed double PE polybags inside a controlled environment to block dust and particulates during transit.
  • Corrugated Shipping Protection: Sturdy, heavy-duty export cartons prevent crushed cavities, warping, or tray deformation during ocean or air transit.
  • Versatile Delivery Options: We support express door-to-door shipping, door-to-port air freight for urgent timelines, and sea freight for optimal bulk economy. Review our vial packaging process guide for pharmaceutical lines to seamlessly integrate our bulk deliveries into your plant workflow.

Frequently Asked Questions: Plastic Vial Trays

Can plastic vial trays withstand deep-freeze storage down to -80°C?

Yes. We manufacture cryogenic vial packaging using specialized high-density polyethylene (HDPE) and cold-tolerant polymer blends designed specifically to resist thermal shock down to -80°C without micro-cracking or structural fatigue. For extreme liquid nitrogen applications, check our cryo vial storage box for liquid nitrogen freezers to ensure total sample security in ultra-low temperature environments.

Are these vial trays compatible with autoclavable steam sterilization cycles?

Yes. Our medical polypropylene vial holders withstand standard steam autoclave cycles up to +135°C (+275°F) without dimensional distortion or thermal degradation. For pre-sterilized barrier packaging requiring Gamma irradiation or Ethylene Oxide (EtO) gas treatment, we supply custom ampoule packaging tray and medical PETG options that maintain optical clarity and impact strength post-sterilization.

How do you prevent trays from sticking together in automated denesting machines?

We engineer precision denesting lugs and raised stacking shoulders directly into our thermoformed mold geometry. These physical standoff points maintain a precise air gap between nested trays, completely eliminating vacuum interlock and friction so automated filling lines and robotic pick-and-place systems can denest individual trays without line stoppages.

What is the typical lead time for a fully custom-designed vial tray?

• • 3D CAD & Prototyping: 3 to 5 business days using 3D printing or rapid aluminum sampling tools.
  • Production Tooling (CNC Aluminum): 2 to 3 weeks for high-precision multi-cavity molds.
  • Mass Production & Delivery: 7 to 10 days post-sample approval within our Class 8 cleanroom facility.
